Specifications

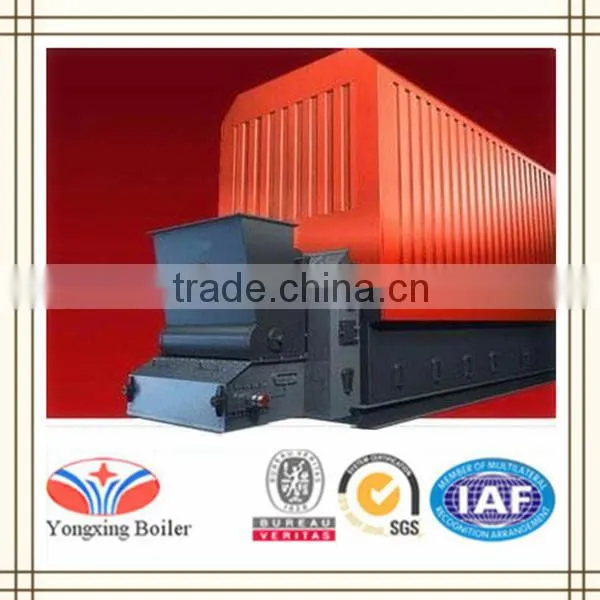

Green&Safe Horizontal Thermal Oil Boiler by An A-class Manufacturer1.Fuel: coal,oil,gas,biomass,etc
2.Medium:thermal oil
Product Information
The Brief Introduction of The Product: Organic Heat Transfer Boiler, which is also called Thermal Oil Boiler, can operate under low pressure, high temperature circumstances (the heating temperature can reach liquid phrase 340°Cor vapor phrase 400°C).All heating operations that need stable heating but do not allow direct fire heating can adopt this device. The fuels of thermal oil boilers primarily are coal, oil, gas, and biomass, and the medium is thermal oil.
The Operation Principle: By the thermal oil pump, the medium is forced to finish the thermal oil circulation process; the thermal oil transfers the thermal energy to the heating equipment and then it returns to the heating furnace for reheating.
The Features:
1. Working under low pressure, high temperature conditions, convenient adjustment, uniform heating and accurate processing temperature;
2. Liquid phrase circular heating, no heat loss during the processes of condensation or discharges, and high heating efficiency;
3. The volume changes, caused by the heat absorption and heat release of thermal oil, can be compensated in the system;
4. Technical measures are taken to control strictly the content of air, moisture and other low volatile matter in the working medium.
The Product Overview
The Technical Parameters of Thermal Oil boiler
| YGL-MA Series Horizontal Fixed Grate Thermal Oil Boiler | |||||||||
| Model | YGL-120MA | YGL-240MA | YGL-350MA | YGL-500MA | YGL-700MA | YGL-1000Ma | YGL-1200MA | YGL-1400MA | YGL-2000MA |
| Rated Thermal Power | 120 | 240 | 350 | 500 | 700 | 1000 | 1200 | 1400 | 2000 |
| Thermal Efficiency | ≥70% | ≥71% | ≥72% | ≥73% | ≥74% | ≥75% | ≥76% | ≥77% | ≥78% |
| Working Pressure | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| Medium Temperature | 340° | 340° | 340° | 340° | 340° | 340° | 340° | 340° | 340° |
| Circulating Oil Capacity | 12.5m3/h | 20m3/h | 30m3/h | 40m3/h | 60m3/h | 80m3/h | 100m3/h | 100m3/h | 100m3/h |
| Mouthpiece DN | 50mm | 50mm | 65mm | 65mm | 100mm | 100mm | 125mm | 125mm | 150mm |
| System Power | 6.7KW | 10KW | 14.1KW | 14.1KW | 23.5KW | 29KW | 40KW | 40.7KW | 48.7KW |
| Fuel | Coal, Oil, Gas, Biomass | ||||||||
| Fuel Consumption | 28kg/h | 56kg/h | 80kg/h | 100kg/h | 155kg/h | 185kg/h | 240kg/h | 290kg/h | 400kg/h |
| Diameter | 1150mm | 1300mm | 1700mm | 1700mm | 1960mm | 2050mm | 2106mm | 2290mm | 2620mm |
| Height | 2385mm | 2650mm | 3060mm | 3475mm | 3805mm | 4415mm | 4760mm | 5445mm | 6430mm |
| Total Weight | 2960kg | 3225kg | 3635kg | 4050kg | 4495kg | 5105kg | 5365kg | 6045kg | 9018kg |
| Working Medium | Thermal Oil | ||||||||
| Oil Capacity of Ther Furnace | 0.15m3 | 0.3m3 | 0.5m3 | 0.7m3 | 0.8m3 | 1.3m3 | 1.5m3 | 1.9m3 | 3.5m3 |
Company Information
The brief introduction of Henan Yongxing :
Henan Yongxing Boiler Group Co., Ltd, established in 1970s with the registered capital of more than RMB 100 million, is a professional manufacturer and exporter that specializes in the design, development and production of boilers and pressure vessels. All of our products comply with international quality standards and are quite greatly appreciated in a varitey of different markets throughout the world. Our company occupies an area of 230 arces, with two factories and six subsidiaries.
It is bounded by Beijing-Kowloon Railway on the east, and close to 106 country road. Very convenient for transportation!

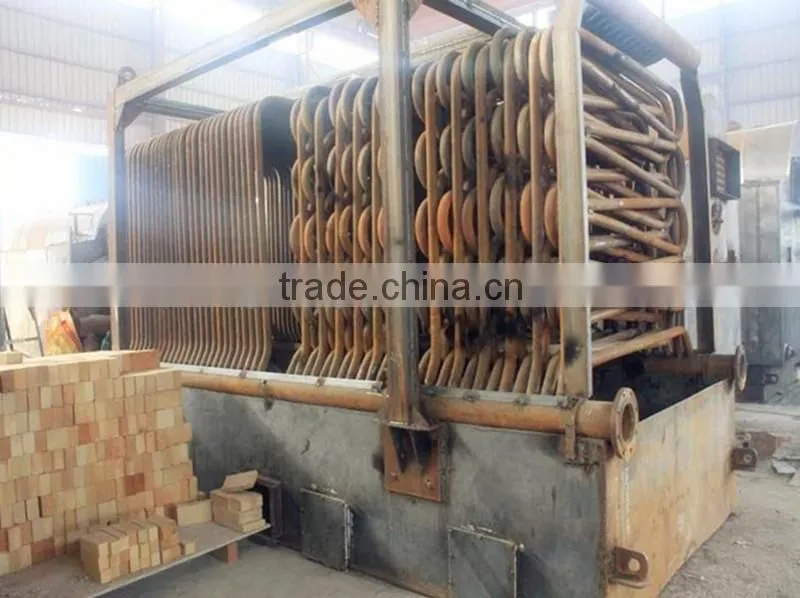

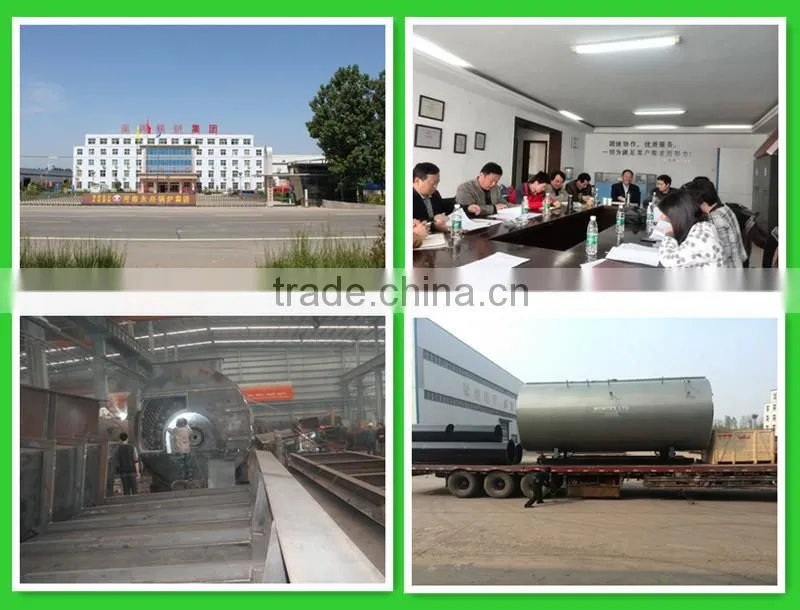

Factory View
The Certifications Yongxing Has Gotten
In 2000, Yongxing passed the accreditation of ISO9001:2000 International Management System and continues to carry it on and keeps it run well. On April 1st, 2011, we passed a new edition of this certification---ISO9001:2008, and on the same day, another ISO14001:2004 was passed as well. In May, 2011, our company was awarded as an A-class enterprise of Henan province.
The Cooperation with Foreign Clients

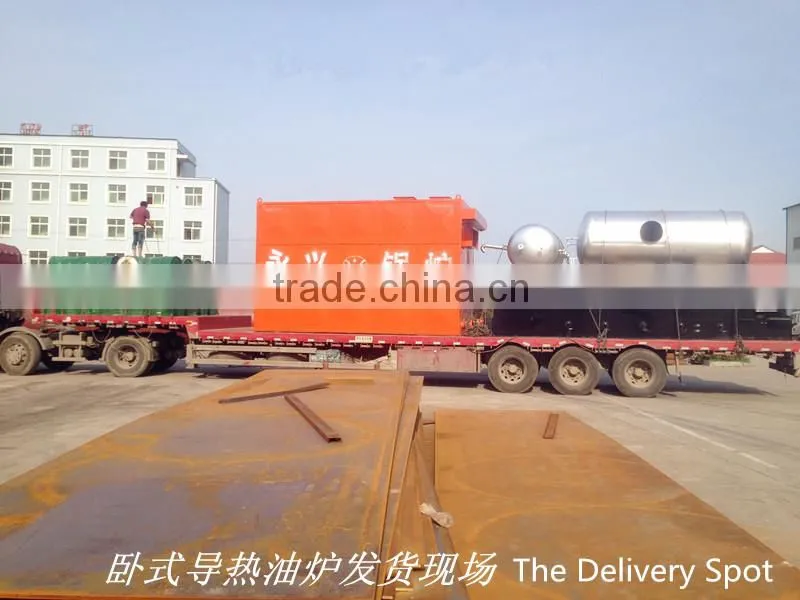

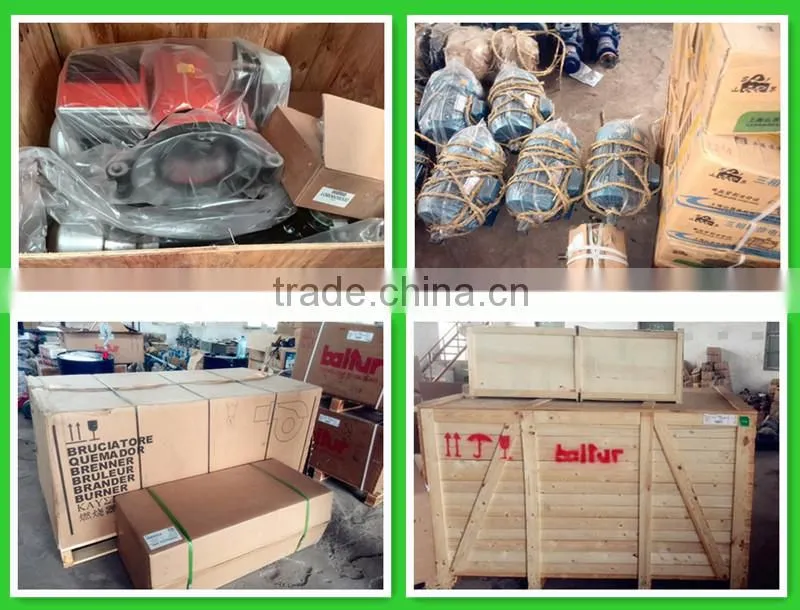

Packing Details
Our Service
Before the products leave our factories, all the matters relevant to boilers will be undertaken by our company, such as equipment decoration in boiler room and also satisfactory, free-charge service will be offered by us until the turn-key project. The replacement is guaranteed if any problem concerning the product quality arises within a year.
In the manufacturing process, clients are quite welcome to our factory to examine the actual quality and to carry out the follow-up inspection.
