Vertical wood- fired Steam Boiler

Specifications

LSG VERTICAL COAL/WOOD  FIRED STEAM BOILER-----Yongxing Boiler Group

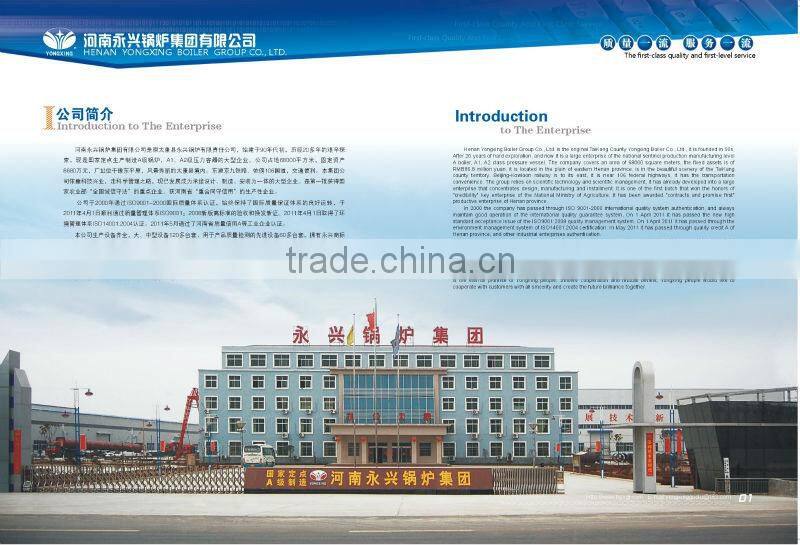

I.Company introduction

Henan Taikang Yongxing Boiler Co., Ltd. is a large enterprise engaged in R&D, manufacture, sales and installation of boilers, heat energy machinery and pressure vessels. The company has qualifications of Grade A boiler manufacturing, first and second class pressure vessel manufacturing, and electromechanical equipment installation work professional contracting, and has passed the certification of ISO9001:2000 Quality Management System. The company strictly abides by ISO9001 Quality Management System to carry out quality control and quality test control, with stable product quality. It has been rated as “Contract-honoring and Promise-keeping Enterprise” by Henan Industrial and Commercial Bureau, and “Nationwide Creditable and Law-abiding Enterprise” by Ministry of Agriculture, brought into member unit by Chinese Quality Technology Supervision Association and Provincial Environmental Protection Association, and obtained patent technologies.

The fire coal, fuel oil, gas, electrical heating steam boilers, hot water boilers, boilers, organic heat transfer material heaters, blast stoves, coal gas integration eco-friendly boilers developed on the fire coal environmental protection problem, and I and II pressure vessels strictly execute national and industrial standard, have rational design and advanced production technology, and are in leading position in national like products, featured by compact structure, low noise, high thermal efficiency, safe and reliable operation, elegant appearance, and high automation degree.
      “Fastness, Innovation, Transcendence, Credit” is Yongxing people’s corporate philosophy, “High-quality, Pragmatic, Efficient” is Yongxing people’s permanent commitment. We expect to cooperate with users to create the glory! Welcome to our company!

II.LSG introduction

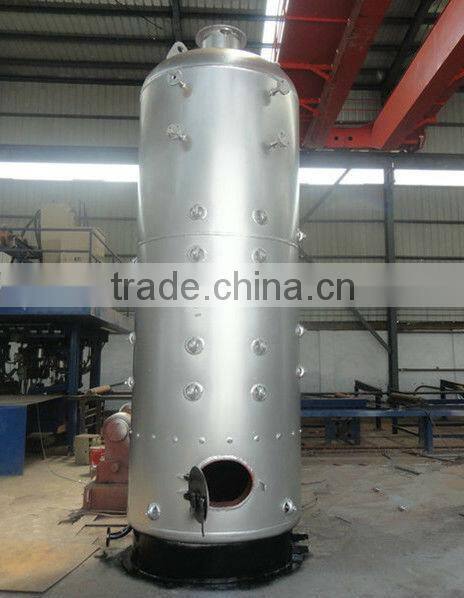

Vertical coal-fired boiler, a head, drum, top Furnace, Furnace, bending pipe and other components. Vertical bending the structural features of water-tube boilers are:  Furnace that has the curved pipe, increasing the radiation heating surface. However, a larger Furnace water level, lower the oven temperature, therefore, generally suitable for burning high quality coal. Such as the increase in the furnace refractory bricks, to maintain a high temperature, can also use the low quality coal species. Better water circulation.Using double-grate combustion chamber, heating quickly, can burn once again, to achieve full combustion, eliminating smoke, dust removal effect. Reasonable layout of the boiler structure, good heat transfer.

The boiler design is reasonable, simple structure, convenient operation, easy maintenance, small footprint, low investment and production of steam and heating can be used for enterprises and units.

III.Technical data

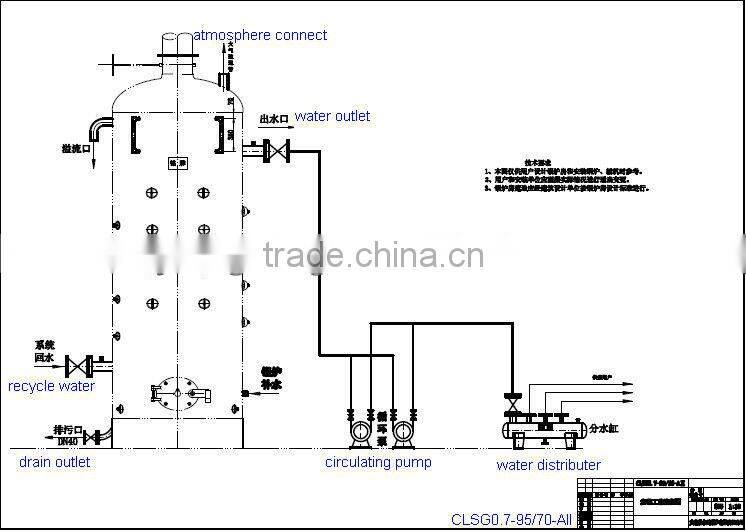

IV.Working principle

  Boiler proper is nude packing ,auxiliaries will use iron case.
