In accordance of GMP regulation.
Skin made of stainless steel, lexan top cover or PC cover.
Rotating Speed: 0-30 rpm, steplessly adjustable auto stop when top cover removed.
Optimized capsule guide bar in the basket make capsules dry faster.
Controlled by PLC with both automatic mode and manual mode.
Discharge alarm: the indicator will blink 12 seconds to alarm to be discharged.
Basket can be easily removed then easier to be cleaned.
With static electricity elinmination devices.
Packaging & Delivery
| Packaging Details: | wooden case |
| Delivery Detail: | 20-30 days |
Specifications
two baskets as one group.
better drying effect
Soft Capsule Tumbling Dryer
Soft Capsule Tumbling Dryer
Feature and Advantage
We pay great attention to the combination of design and application, and focus on improvement of production efficiency and stability. The major advantages of our tumble dryer are as below:
1. Basket:
1.1 Basket is the most important part of tumble dryer, net of basket is made from SS316 wire, meet GMP requirement. The special fabrication processing ensures the inner wall of basket is smooth and burrs free. Capsules will not be damaged or turn into black color.

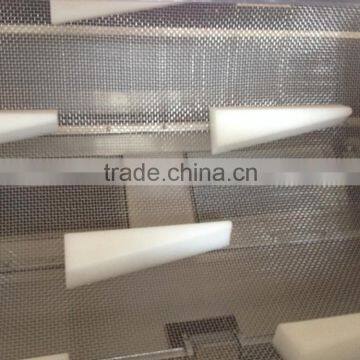

1.2 The inside guide plates are designed as unsymmetrical construction to ensure capsules be dispersed evenly. To compare with conventional slanted guide plate design, this design effectively avoid capsules be cumulated on one side of basket.
1.3 The angle and arc of guide plates are precisely calculated, and the plates are molded in customized special mold. Capsules fall down after being lifted by the guide plates to a certain height. The time of capsules being dried in wind is longer, drying effect is obviously better than other brand product.
1.4 The outlet of tumble dryer adopts bevel angle and arc transitional streamlined design, and is molded by customized mold too. Capsules will come out smoothly and will not stick on it.
1.5 The end part and gear of the basket are made from FDA approved supra polymer material, the friction coefficient is super low, thus avoid adhesion with capsules, this is superior to normal nylon materials very much.
1.6 The frame of basket is in compact design, rigidity is high, the construction is stable.
1.7 With both manual and auto control modes. Under auto control mode, each basket will rotate forwardly or backwardly according to the time set by operator.
2. Electrical Parts

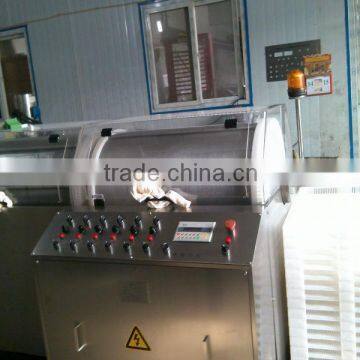

2.1 All the contactors, relays, breakers, switches and knobs are Schneider brand. Control system adopts PLC control.
2.2 There’s a static electricity guiding device on each basket.
2.3 The safe protection function will ensure basket stop rolling when the cover is open, and back to rotate after close the cover.

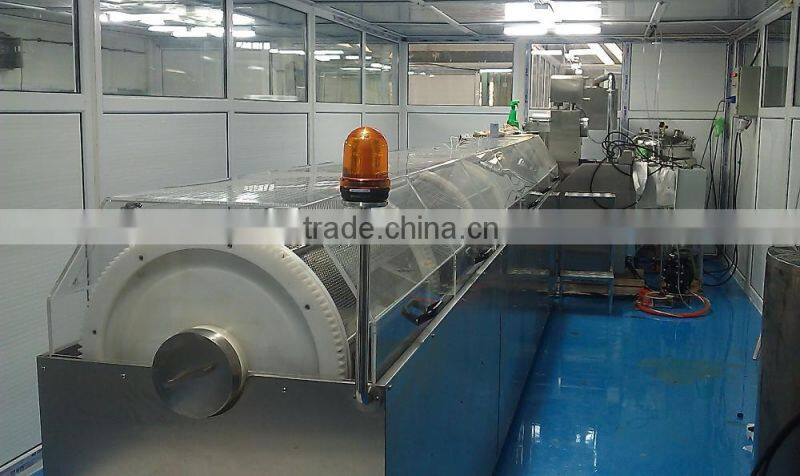

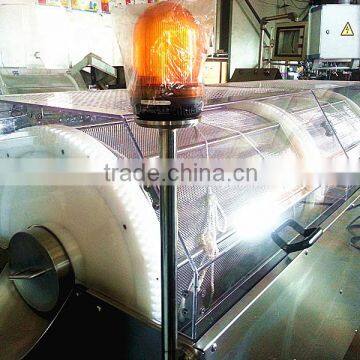

2.4 There is a discharge alarm lamp on the last section of tumble drying machine, it flickers 12 seconds before discharge to remind operators.
2.5 Each basket equipped with an independent drying fan.
2.6 Each basket equipped with frequency convertor, running smoothly and speed can be adjusted independently.
2.7 Our machine has an unique full-start function, this function is very useful when need to restart the machine in case of accidental power cut.
Specification
Model |
TD-2 |
Basket diameter(mm) |
580 |
Basket length(mm) |
900 |
Weight(ton) |
400kg |
Drying fan(kw) |
0.32 |
Motor Power(kw) |
0.4 |
Basket per section |
2 |
We have high technology, high accuracy machine, passionate and enegretic team group to offer you the first-class equipment and spare parts of the softgel capsule and paitball machine.
