Diamond Quarrying Bits

Products name: Diamond Quarrying bits

(1)Button bit taper angle: 4°,4°46″,6°,7°,11°,12°

(2)Models:chisel bit/cross bit/button bit

(3)Diam:20-45 mm

(4)Button bit shape:spherical/parabolic

(5)Socket inside diameter:15/19/22/25(mm)

(6)Material and process:high quality alloy steel bar and tungsten carbides, through heat treatment

Products technical data:

1.Tapered chisel bit

Widely used in drilling holes with depth less than 5 meters and diameter ranged in 20-45 mm by light-duty rock drill, like Y6.

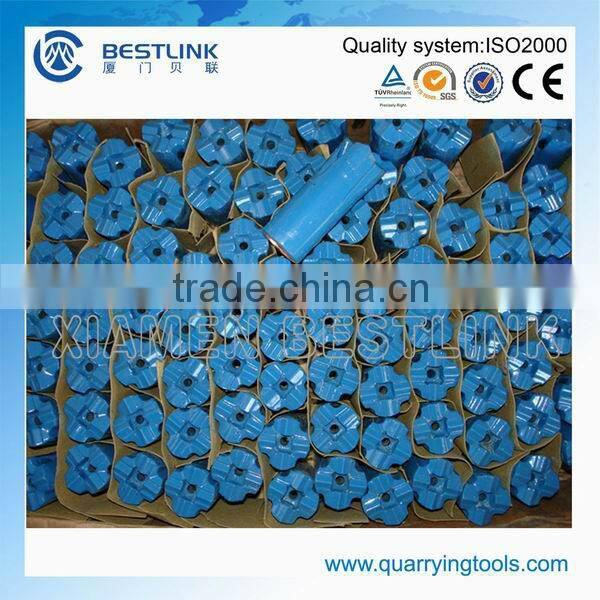

2.Tapered cross bit

Used under any rock drilling condition and mainly used for hard or very hard rock formation because of it's comprehensive adaptability. Compared with taper chisel bits, taper cross bits have a better drilling performance because carbide tips on cross bits doubled.

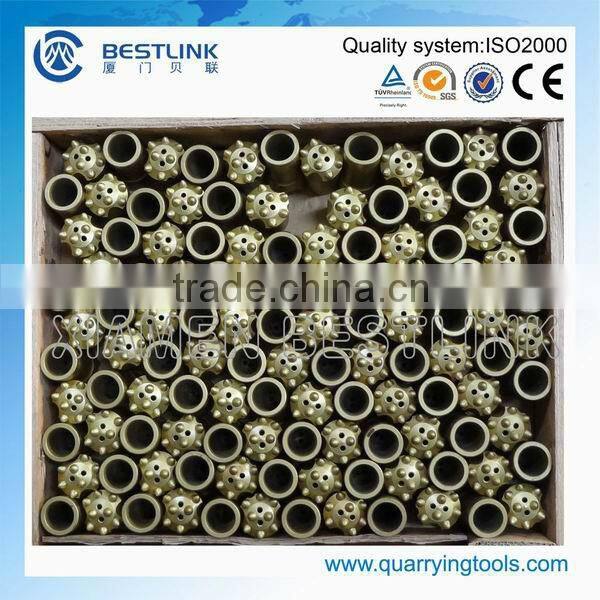

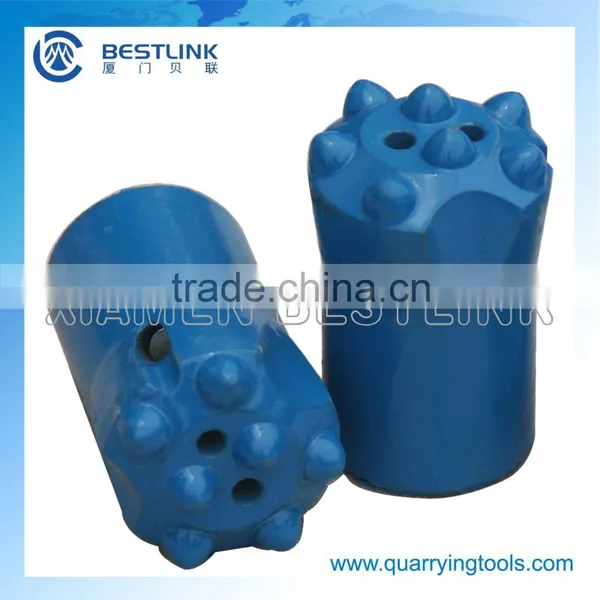

3.Tapered Button Bits

Comparing with tapered chisel bits and tapered cross bits, button bits has higher technology, much longer primary drilling time and higher drilling efficiency. According to the tungsten carbide insert, tapered button bits can be divided into the types of hemispherical, conical and parabolic button, etc.
