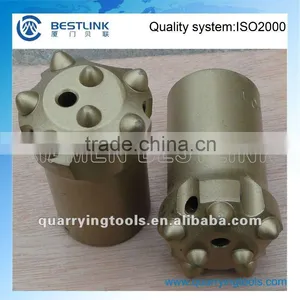

Help CenterTungsten Carbide Drill Bits Button Bits Chisel Bits Cross Bits
Related Products
Button bit taper angle/degree:4°46″, 6°,7°,11°, 12°
Socket inside diameter:19 22 25(mm)
We can design and manufacture according to customers's samples or drawings of the Bit Dia., No. of air/water holes, carbide button shape and the face shape.
Our button bit is made with high quality of best quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands,and transmit intensive impact energy into the rock with the least possible loss of energy.
The taper drill bit is widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc.
Description |
Diameter |
Length |
No. of button |
Weight |
|
Taper Angle a=4°46″, 7°, 11°, 12° Socket inside Diameter. d=19, 22, 25.
|
mm |
mm |
pcs |
kg |
28 |
50 |
4 |
0.2 |
|
29 |
50 |
4 5 6 7 |
0.2 |
|
30 |
50 80 |
5 6 7 8 |
0.2 0.3 |
|
32 |
50 55 71 80 |
6 7 8 9 |
0.2 0.22 0.3 |
|
33 |
50 55 71 80 |
6 7 9 |
0.2 0.3 0.36 |
|
34 |
50 55 |
7 8 |
0.22 0.3 |
|
35 |
55 71 80 |
4 5 6 7 |
0.22 0.3 0.37 |
|
36 |
50 55 |
7 |
0.3 0.35 |
|
37 |
55 |
4 6 7 |
0.3 |
|
38 |
50 55 |
4 6 7 |
0.25 0.35 |
|
40 |
50 55 |
7 |
0.35 |
|
41 |
50 55 71 |
4 5 |
0.35 |
|
42 |
50 |
6 7 |
0.4 |
|
45 |
50 55 71 |
|
0.5 |
Spanish and English available(disponible español e inglés)
