Specifications
High accuracy and high productivity. Die roll diameter is 103 and length is 152. Suitable for making high quality paintballs.Paintball Production Line Description
The features of S406PB paintball making machine:
1. Good stability
2. Adjustable rotation rate during 0-5rpm
3. Easy to operate and clean, conforming to GMP
4. Compact and beautiful
5. It can be assembled or disassembled with single hand
6. Big air flow
7. Reduce the oil consumption
8. The cable plug has good waterproof and oil proof function
9. High technical loading capacity
10. High precision
11. Easy to move and operate

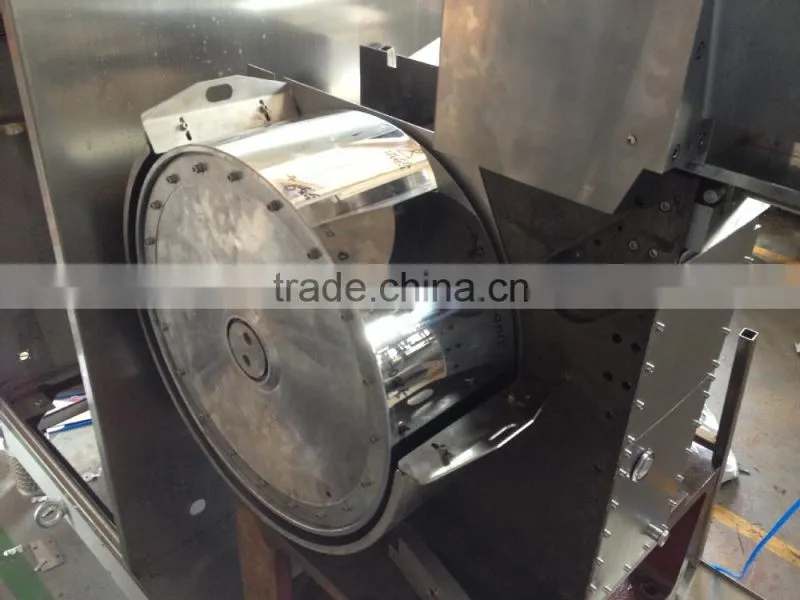

12. Drum design to prevent gelatin wrinkling and sideship
Description:

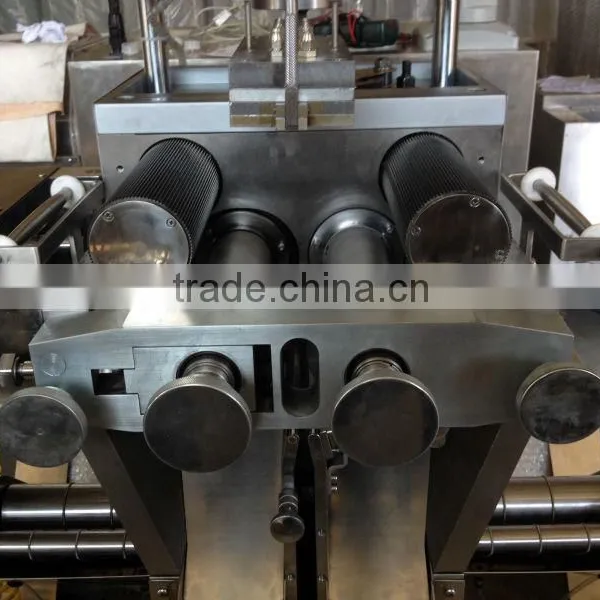

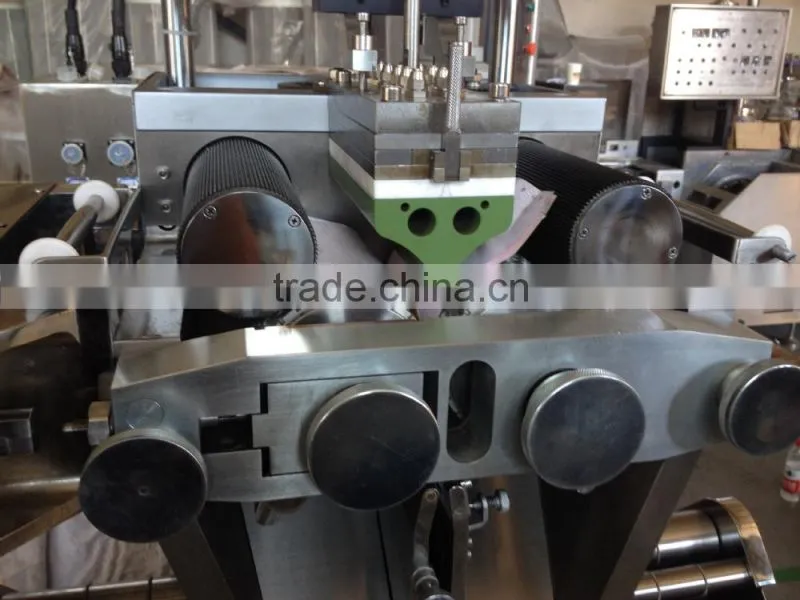

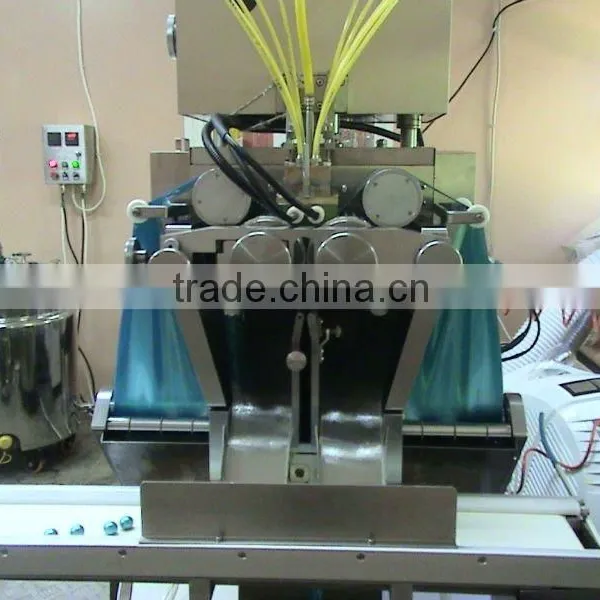

S406PB paintball making machine's die roll is 152 mm long. The die roll's rotation rate can be regulated during 0~5 rpm, so users can choose the most appropriate speed according to diffrent material and process parameters. More helical gears are used in the process of gear moving, which improve the gear coincidence degree and transmission stability. The spilt structure of cooling fan reduces the thermal effect to the perssure pill. Besides, the gelatin barrel is installed with wheels which can be moved more conveniently and easily. The machine's oil roller is made of stainless steel material, so it's more in line with the repuirementS of GMP.
Specifications:
Model |
S406PB |
Die roll diameter |
Φ 103mm |
Die roll length |
152mm |
Die roll speed |
0~5rpm |
Plunger numbers |
10 |
dimension |
880X640X1900mm |
weight |
900kg |
Power consumption |
2.75kw |
Control mode |
PLC+HMI Switch/buttons |
Output rate |
8#OV 43470 pcs/hour |
We hope we can find you and you can find us ---Beijing KUN YOU Pharmatech Co.,Ltd
