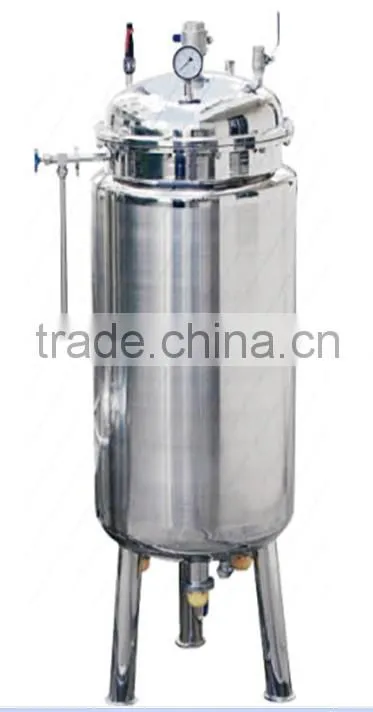

Hot water tank
To provide hot water for gelatin melting;
2 layers(heating layer + insulation layer);
Material: SS304
Dimension: Φ800*2100 mm;
Working Pressure: atmospheric pressure;
Power: 24 kW
Main Specification
The heater is manufacture and examined according to JB2880-81 Standard.
Hot water volume: 2,000 kgs/h
Working temperature: 85-100 ℃
Weight: 350 Kgs
Dimension: External Dia. 800 x H 2,100 mm

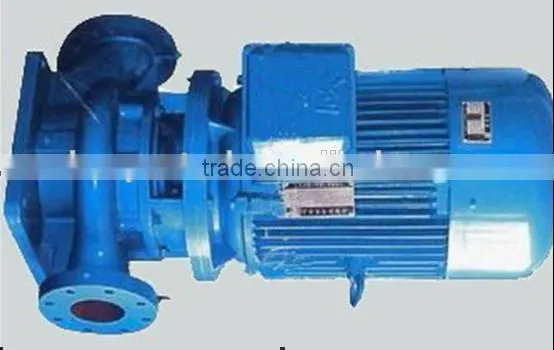

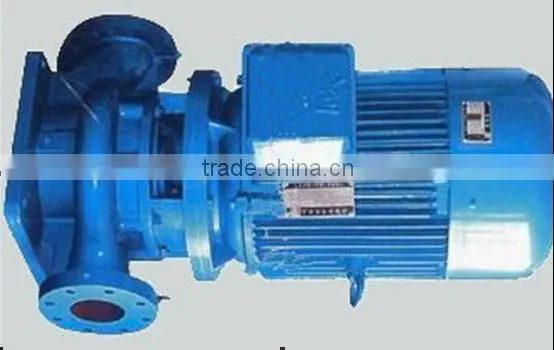

Hot-water inline Pump
Hot-water inline Pump is Applied to the pressure circulation of high temperature water, especially in dissolving gelatin. The temperature of operation is less than 140 ℃.
Condition of Operation
The water pressure of inlet pipe is 0.2-3 Kg/Scm.
Water should be clean water without fiber or solid granule, and hot water is soft water.
Temperature of media: cold water is above 0 ℃.
Temperature of ambience is above 45 ℃.
Main Specification
Model |
Volume of flow (m³/h) |
Caliber(mm) |
Efficency(%) |
Motor Power |
Voltage |
Distance from inlet to outside |
Weight(Kg) |
20S |
6 |
40 |
65 |
0.75 |
380 |
275 |
16 |
What is the advantages of Halal gelatinic Automatic encapsulation machine ?
1)We are factory, direct sales with competive price;
2)More than 20 years experience;
3)Professional designer and worker to serve you;
4)This machine with a strict inspection before out of storage;
5)This tank use a large number of 316 stainless steel;
6)This control partof the tank use world famous electrical and pneumatic components,such as Siemens, omorn ,Airtac, Mitsubish, Schneider etc.
7)Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free.
Packing&Shipping
We pack the whole machine with wooden case and pack the softgel die roll and paintball die roll with standard boxes.
We ship the whole line of macine by ocean through the freight agent.
Our services
We not only provide the whole paintball & softgel making machine line, but also can provide the factory design for you. In terms of the after-service, we will be responsible for such services as belows: maintenance, parts supplying, technical support.

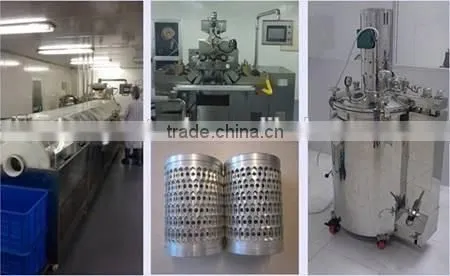

Product Line samples.
