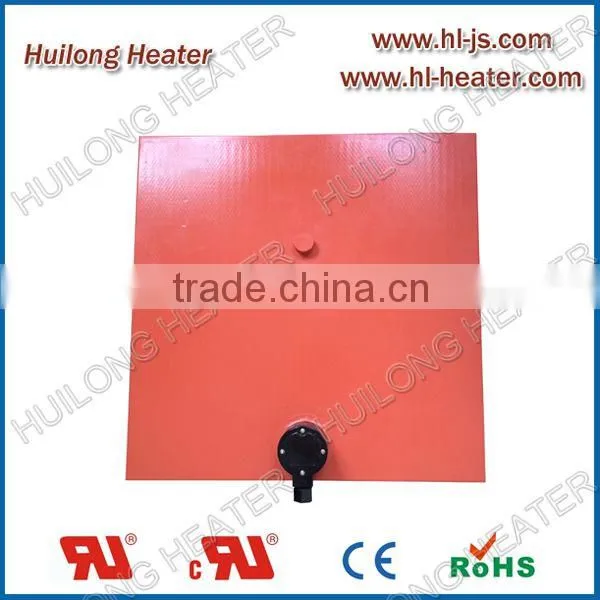

LDB explosion-proof silicone rubber flexible hot plate
It is made of hi-temp rubber, heating element, grounding grid and power
connection kit. It can be produce a uniform heat field.
Specifications:
1) LDB-A:
a) Dimensions: 610 x 305mm
b) Rated power: 600W
2) LDB-B:
a) Dimensions: 610 x 610
b) Rated power: 1,200W
3) LDB-C:
a) Dimensions: 1,220 x 610
b) Rated power: 2,400W
4) Rated voltage: ~ 200V
5) Dielectric strength: 1,600V/min
6) Insulation resistance: 50mΩ
7) Max. withstand temperature: 120°C
8) Min. installation environmental temperature: -30°C
9) Max. heat-proof temperature: 230°C
10) Average surface power: 0.31W/cm²
11) Explosion-proof class: eII T3
12) Explosion-proof certification: GYB04651X
13) Min. bending radius: 0.7m
Features:
1) Easy installation and light weight: installation of Flexipanel requires
approximately 20 minutes; installation of the heater does not require
total removal of tank insulation
2) High energy efficiency: it is pressed on the vessel firmly and heat transfer
is excellent
3) High suitability: suitable for vessels of any shape
4) Approved for indoor or outdoor and division 1, 2 hazardous gas locations
Trade terms
- Payment: By T/T or Westeern Union or Paypal.
- Lead time: 5-15 working days,subject to the order quantity.
- Delivery ways: DHL,UPS door to door sevice,by sea,by air,etc.
- MOQ: 1PC.
- Reply your enquiry in 12 working hours
- Experienced staffs answer all your question in flunent english
- Customized design is available ,OEM&ODM are welcomed.
- Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
- Special discount and protection of sales are provided to our distributor.
Company certification: ISO9001:2008, ISO 14001
