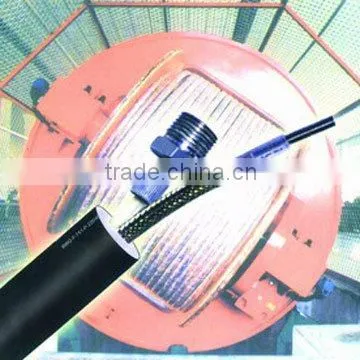

Instrument Insulating Tube of New Technology

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Model Number:

Instrument Insulating Tube

Contact Supplier Request Quote Chat Now

Jiangyin Huilong Electric Heating Appliance Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name HL

Model Number Instrument Insulating Tube

Specifications

The product can be applied to the instrument pipe-line of petroleum, chemical, metallurgical and aviation industries, especially

Features:
1) Thermal insulation, waterproof and heat tracing
2) Good reliability: The outer coating is PVC plastic resisting water and moisture.
The thermal insulation material is non-woven glass fiber cotton with uniform
and reliable insulation effect. The inner tube is of fluorplastic, resisting heat
and corrosion. The heat tracing material is standard heating tape. All the
materials are of integrated manufacture by special machines with long service
life
3) Easy installation: The product is of flexible material, and the inner tubes can be
connected with the drawn-in attachment joints whose sealing is reliable and
disassembling is convenient. The installation process needs not prefabrication,
thus the construction period can be shortened. With anti-explosive joints the
product can also be applied to anti-explosive occasions
4) Attractive appearance: The appearance design of the model is simple and smart
5) This product features contribute to the standardization of design work, easy
and quick construction work, as well as reliable working and convenient
maintenance

Specifications:
1) Highest heat-resisting temperature of inner tube: 205°C (FEP)
2) Pressure resistance of the inner tube:: lOKGf/cm² (150°C )
3) Highest heat-resisting temperature of outer protection coating: 105°C
4) Maintenance temperature of inner tube: 140°C (40W/m)
5) Lowest installation temperature: -9°C
6) Highest contact environment temperature: 60°C
7) Heat transmission coefficient of the insulation layer: 2.6/m²
8) Working voltage and power of the heating tape: 220V, 40W/m
9) External diameter of the inner tube: 7mm
10) Wall thickness: 1mm
11) Inner tube material: FEP Fluor plastic insulating tube

Note:
The specifications are classified by the tube diameter as 6 x 1, 7 x 1, 8 x 1, 8 x 1.5, as can also be custom-made. Please see the sample book or special order for detailed parameters.

Installation instructions:
First cut off the required length, and leave a proper length of about 0.5m. Then separate the heating tape from the inner tube carefully, cut the insulation layer of the broken end in the shape of cone and wrap with sealing tapes to avoid moisture. The connection of the inner tube and equipment can use flared joints. The connection of power supply and the heating tape can use standard joint-box or copper clamps with sealing tapes. The flared joints and self-vulcanizing sealing tapes can be provided by users themselves or they can order them from us with the product purchase.
