Specifications
Adopts optimized screw and newly designed open-tank barrellarge torque
long using time
low noise

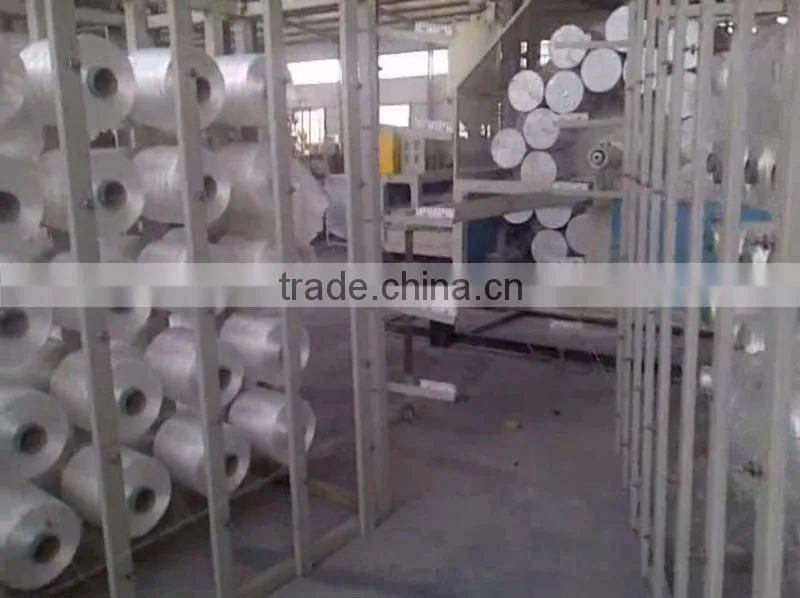

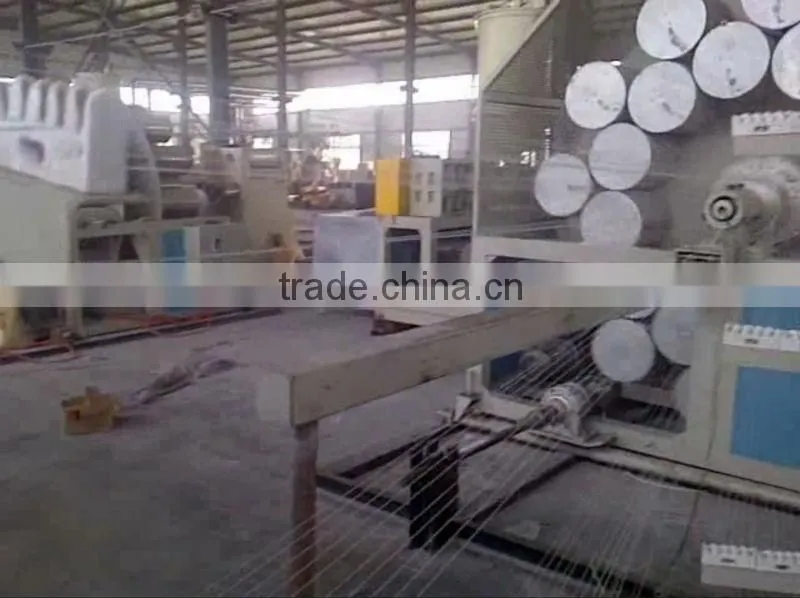

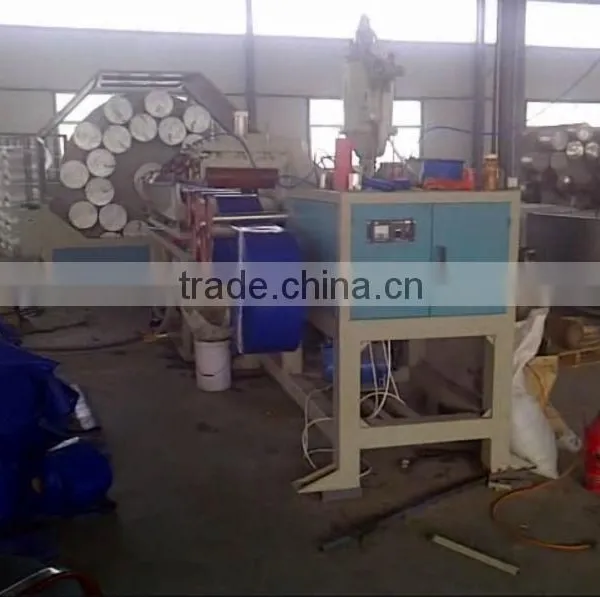

PVC Lay-flat fiber hose production line
Working environment
Place inside
Power no danger area
Humidity 85% No condensation
Temperature 0-40°C
Use conditions
Power 3 phases 380V(—10%,+5%) 50Hz
Cooling water ≤20°C ≥0.3Mpa ~3L/min
Air pressing 0.3m3/min >0.5MPa
Machine size about 26 m Long 1.2M width 2.5M high
Main technical parameters
As-90/28 single extruder
Adopts optimized screw and newly designed open-tank barrel, this extruder has high plasticization equally melt material, producing continuously and stably, high property gear box reducer has large torque , long using time, low noise, drive motors adopt frequency motor.
1. Model AS90×28
2. Screw 90mm
L/D 28:1
Material 38CrMoAlA
Surface treatment nitrogen treatment and polishing
3. Barrel
Material 38CrMoAlA
Inside treatment nitrogen and grinding treatment
Heating control zones 5 zones+ 1 zone metering
Heating type Ceramic heating circle
Heating power 1.5kw×5
Cooling system barrel fan cooling
Cooling power 0.06×5
Die head flange heating type Mica heating circle
Die head flange heating power 1.5kw
4. Reducing box
Box material HT200
Gear type helical gear
Gear material 20CrMnTi
Gear surface heating treatment quenching
Shaft material 40Cr
Cooling type inside circulating water cooling
5. Feeding seat
Type circulating water cooling
Materials Q235
6. Driving motor
Type frequency motor
Power 45kw
Speed 1480r/min
Motor control frequency to adjust speed

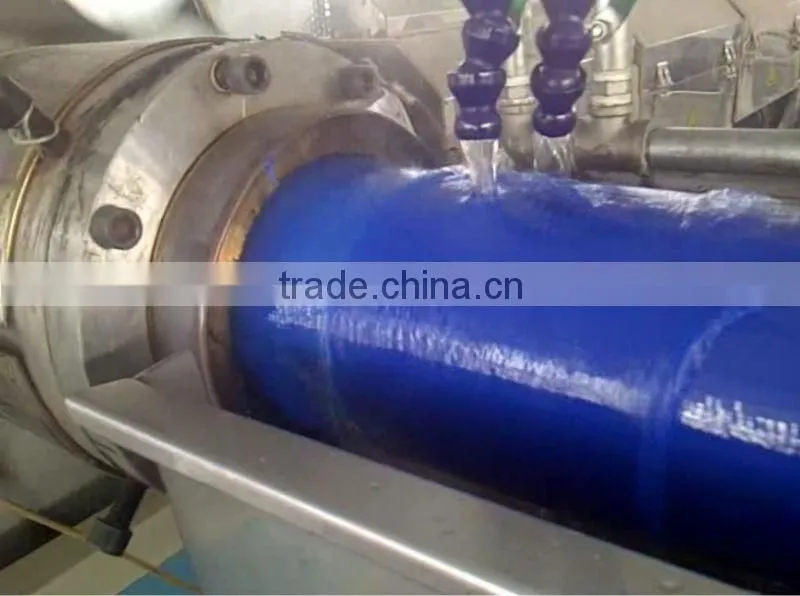

7. Mould
Pipe diameter 1/2/4/6/8inches
Heating zones 2 zones
Heating power: 3kw

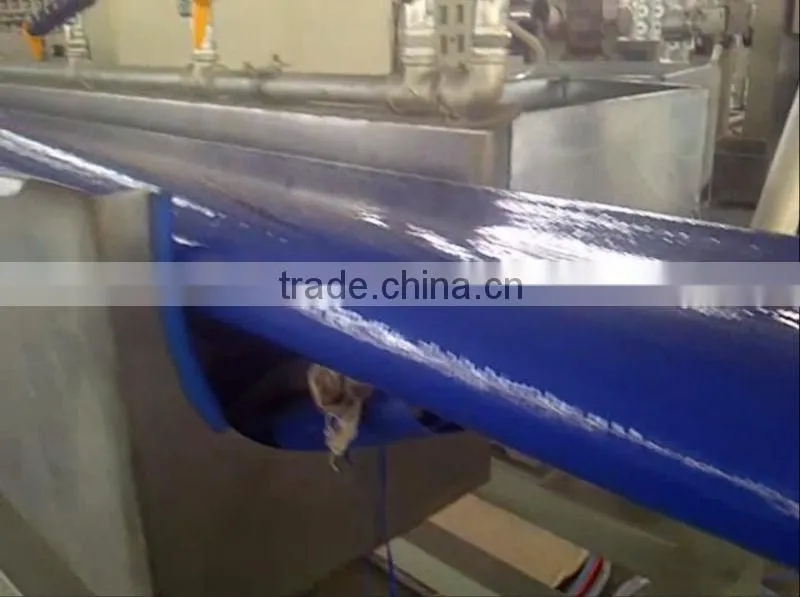

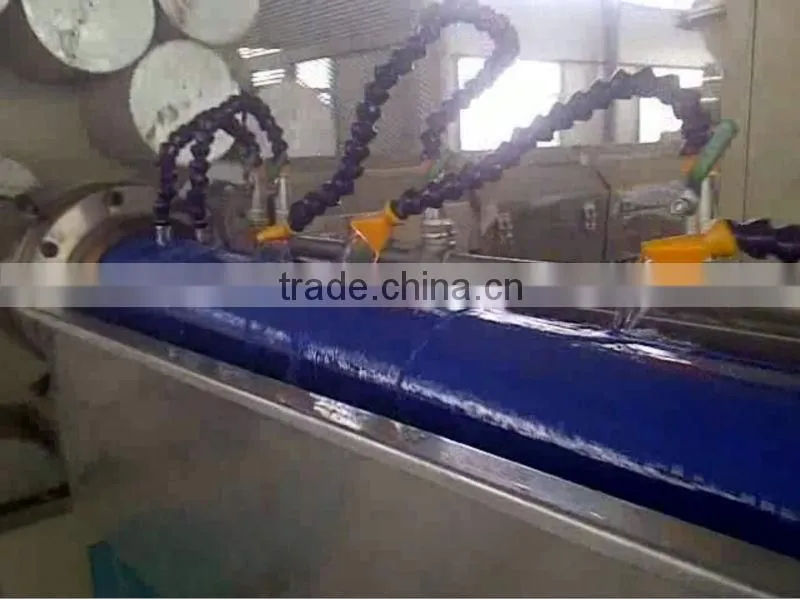

8. cooling tank(2.5m)
Water pump: 1 set *3kw
Material stainless steel (water touched part)

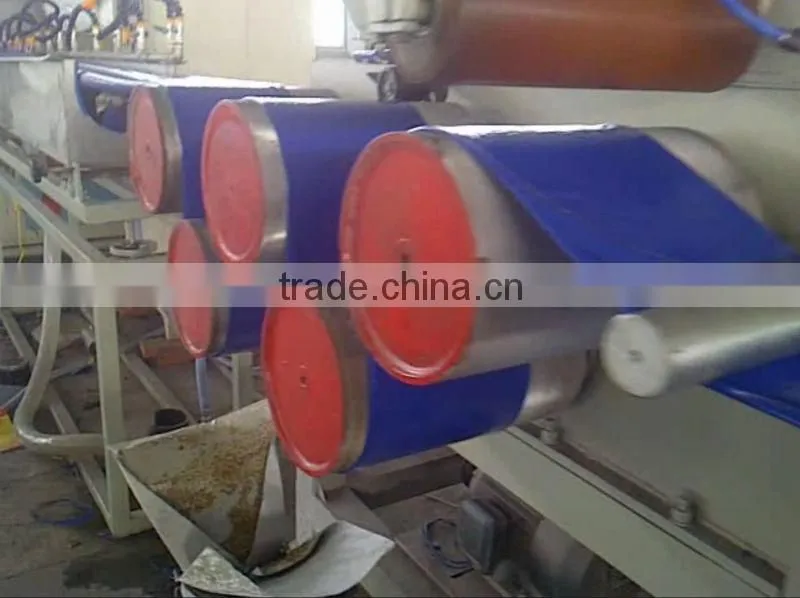

9. Stretch rollers with winder
Rollers quantity 5 pcs
10. Electric control system
Motors are Chinese brand
Inverter: Sifang brand (Chinese brand)
Temperature control: RKC
Low voltage components are Siemens
Accessories
number |
Name |
amount |
note |
1 |
Ac contactor |
2 pcs |
|
2 |
nozzle |
8 pcs |
|
3 |
reducer box oil sealing |
2 pcs |
|
4 |
Electromagnetic valve |
1 pcs |
|
5 |
Gate mould heating circle |
1 set |
|
6 |
thermocouple |
2 pcs |
|
7 |
Magnetic plug |
2 pcs |
|
8 |
Screw install tool |
1 set |
|
