Home > Manufacturing & Processing Machinery > Metallurgy Machinery > Diamond Wire Saw Machine for Granite and Mable Quarry
Diamond Wire Saw Machine for Granite and Mable Quarry
US$ 1 - 1,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
BESTLINK
Model Number:
BLD-75G/BLD-55G/BLD-37M/BLD-37G/BLD-W11Q
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Good Quality Precision Diamond Wire Saw MachineUS$ 1 - 1,000MOQ: 1 Set -
Diamond Wire Saw Machine for Cutting Granite QuarryUS$ 1 - 1,000MOQ: 1 Set
-
Selling Diamond Wire Saw Machine for Cutting Granite QuarryNegotiableMOQ: 1 Set
-
Diamond Wire Saw Machine for Cutting Granite Quarry Manufacturer in ChinaNegotiableMOQ: 1 Set
-
Diamond Wire Saw Machine for Cutting Granite Quarry Supplier in ChinaNegotiableMOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
BESTLINK
Model Number
BLD-75G/BLD-55G/BLD-37M/BLD-37G/BLD-W11Q
1.The wire tension and cutting current is closed loop automatic controlled by PLC and inverter. 2.The cutting process can be automatical controlled accurately.
3.The movement and rotation of the cutting head is driven by motor with position Limitation Protection.
4.Machine protection functions including:wire broken,Machine overload,cutting finished,and others malfunction happened
5.Display an saving with digitization:the value of cutting current,linear speed and moving speed indicated on the panel,and the cutting time can be saved.
6. The machine without phase request.It is needn't to change and distinguish .
Technical Data
| Type | BL-11G | BL-15G | BL-18.5G | BL-22G | BL-30G | BL-37G | BL-45G | BL-55G | BL-75G |
| Driving motor power (kw) | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 |
| Flywheel's Diameter (mm) | Φ550 | Φ550 | Φ650 | Φ650 | Φ800 | Φ800 | Φ800 | Φ800 | Φ1000 |
| Linear wire speed (m/s) | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 |
| Towable length of wire (m) | 10-20 | 10-30 | 10-35 | 10-40 | 20-50 | 20-80 | 20-100 | 20-120 | 20-150 |
| Feeding Power (kw) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
| Sideways Range(manual) (mm) | 200 | 200 | 450 | 450 | 450 | 450 | 650 | ||
| Rotation Angle | 360° | 360° | 360° | 360° | 360° | 360° | 360° | 360° | 360° |
| Machine travelling speed(m/h) | 0-30 | 0-30 | 0-30 | 0-30 | 0-32 | 0-32 | 0-32 | 0-32 | 0-32 |
| Length of Rail | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 |
| Power ( AC V/Hz) | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| Working Temperature Range (°C) | -15~ 40 | -15~ 40 | -15~ 40 | -15~ 40 | -15~ 40 | -15~ 40 | -15~ 40 | -15~ 40 | -15~ 40 |
| Weight (Tons) | ~0.35 | ~0.37 | ~0.6 | ~0.7 | ~2.1 | ~2.3 | ~2.6 | ~2.9 | ~3.1 |

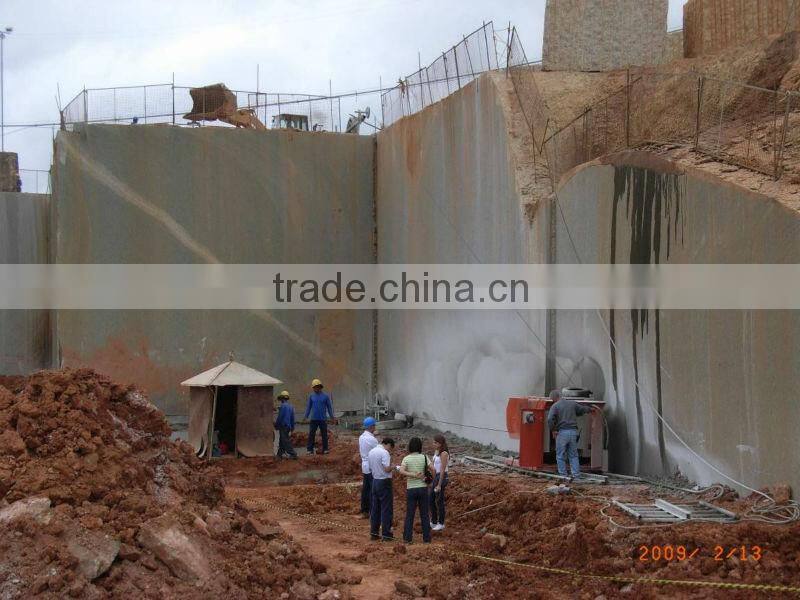

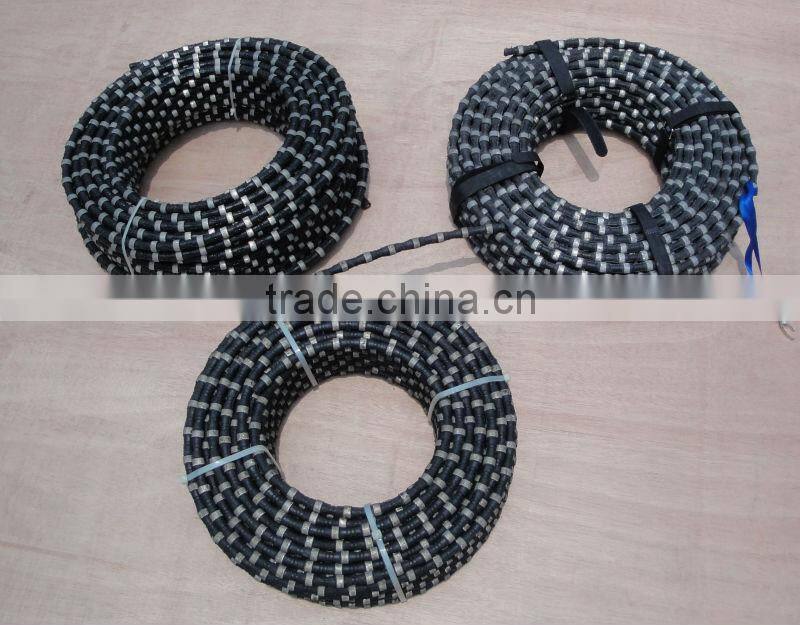

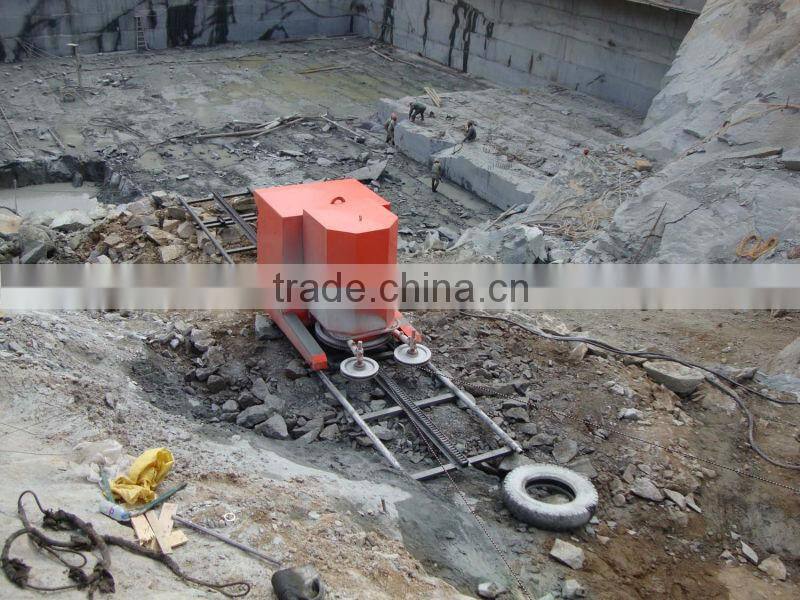

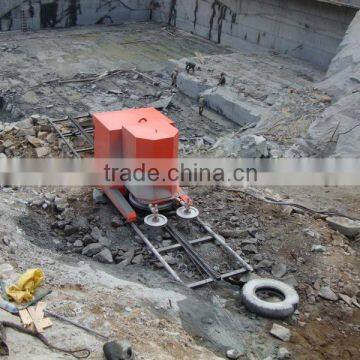

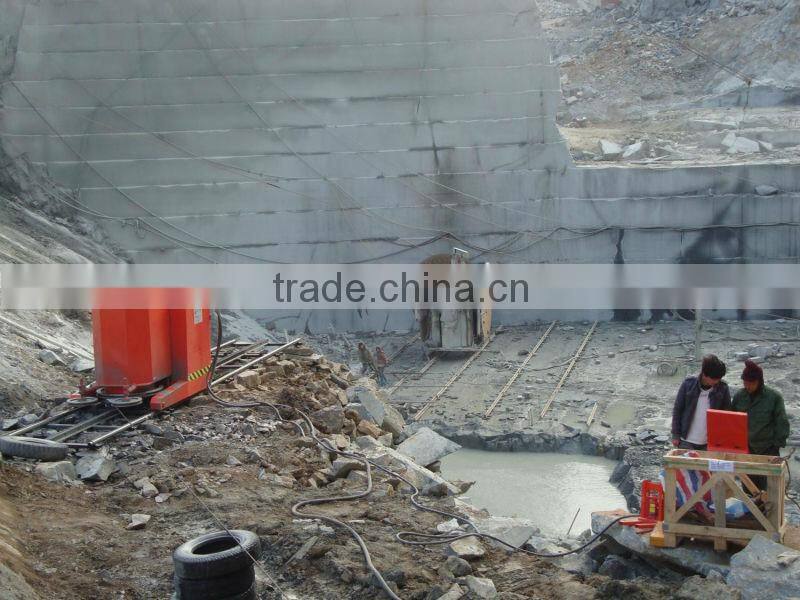

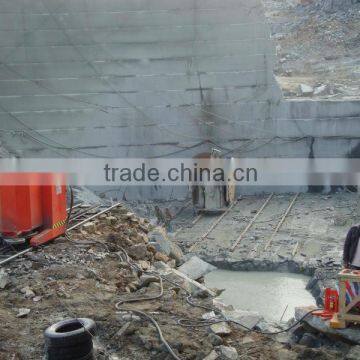

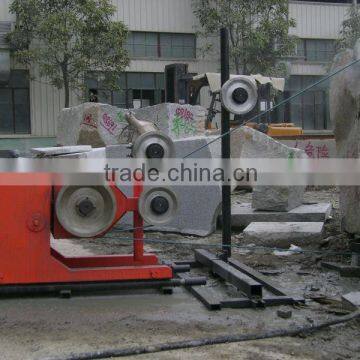

Picture photos

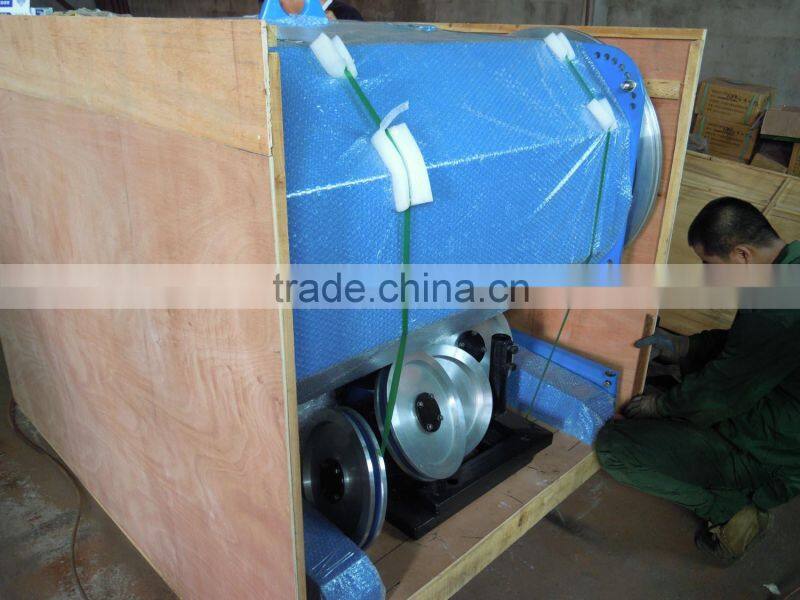

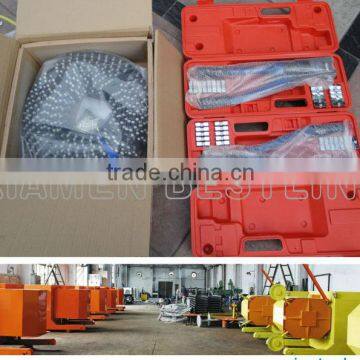

Packing
Wooden cases or specially afford your desire
