Introduction:
Equipped with specially designed screw, barrel, die-head and auxiliary machines, using advanced processing technique. The profile is a new environmental friendly product, material mixed plastic, wood and appropriate aditives. It is widely used for product carrier, packaging box, frame of window & door, decorating board and other outdoor products
Any Profile that you can provide us the drawing we can do it.
Characteristic:
1.The extruder and the extractor adopt the imported AC frequency control device ,the unique screw design ensures the high efficiency extrusion of PVC material, flexible plasticizing, and high output
2. Advanced control system ensures the smooth running

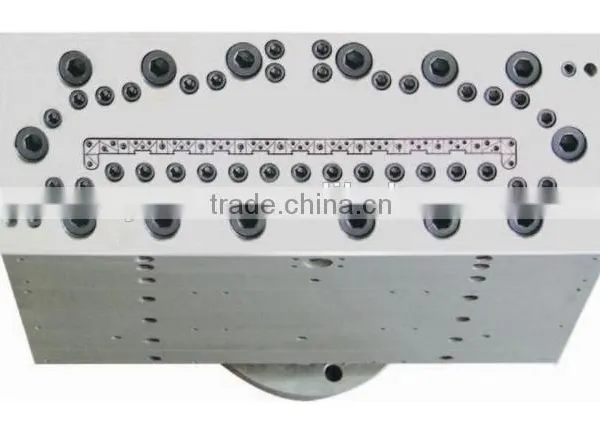

3.Die: innovative spiral flowing structure avoids fuse mark appearance on the bigger pipe , profile of ideal dwell time is full of the whole flow cross-section. Homogeneous melt distribution with selective temperature control guarantees outstanding product characteristics for PVC materials
If you are interested ,please contact with me for more details.
Main Technical Parameter:
Description |
Parameter |
Feed material |
PVC+ wood powder+assistant materials |
Product size |
600mm×35mm×1900mm(the length adjustable) |
Production line speed |
0.8-1m/min |
Max. output |
500kg/h |
Outline size |
23×2.5×3 L×W×H(m),unsaturated |
Weight |
16T |
Total power |
255kw |
Actual energy consumption power |
210kw |
Consumed air |
0.4m3/min |
Atmospheric pressure |
0.6mpa |
Water cycle |
0.3m3/min |
Power |
AC380V±10%,50HZ |
Water |
Industrial water, no impurity, with filtration treatment, pressure: 0.4Mpa temperature: 14-25°C |
Work environment temperature |
0-40°C |
Responsible for the installation and debugging, equipment warranty for one year.
