High speed multi dryer and cylinder kraft and corrugated paper machine price with the whole product line on sale
Technical Parameter
1. Output paper:Kraft paper
2. Basis weight:60-110g/m2
3. Paper width:1575mm
4. Cylinder width:1950mm
5. Design speed:150m/min
6. Working speed:60-100m/min
7. Productivity:5T/D
8. Gauge :2400mm
9. Pressure type:pneumatic pressure
10. Drive type: section drive with AC variable frequency
11. Machine design:square box type; right-side operating machine
12. Output rate :95%
13. Raw material: waste paper and wood pulp
Flowchart of the production line

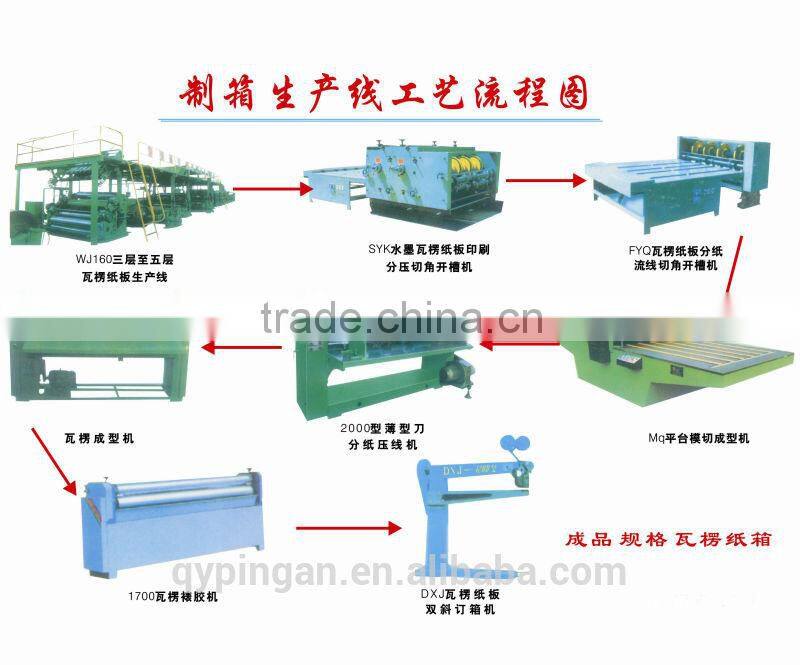

Technic processing chart of paper making
All the equipments of the whole product line
No |
Item |
Qty (set) |
1 |
1575mm double-dryer and double-cylinder paper machine |
1 |
2 |
Steam hood for dryer |
1 |
3 |
Exhaust blower |
1 |
4 |
15-vacuum pump |
1 |
5 |
Suction box |
3 |
6 |
Air-compressor |
1 |
7 |
Air filter |
1 |
8 |
Cylinder vat |
2 |
9 |
1575mmthree-roll calender |
1 |
10 |
1575mmcylinder reeling machine |
1 |
11 |
1575mm rewinding machine |
1 |
12 |
Reel roll |
10 |
13 |
Frequency conversion cabinet for paper machine |
1 |
14 |
Digital signal control cabinet |
1 |
15 |
All the work platform, staircases and handrails |
Full set |
16 |
35m³potcher |
2 |
17 |
700impeller |
5 |
18 |
50-pressure screen |
1 |
19 |
Double-entry pump-150 |
1 |
20 |
606sand separator-4 |
1 |
21 |
Pulp pump-150 |
7 |
22 |
Pulp pump -200 |
4 |
23 |
2m2 horizontal hydrapulper |
1 |
24 |
2m2vibrating screen |
1 |
25 |
High-pressure pump-100 |
1 |
26 |
Chemical box1500×1400mm |
4 |
27 |
380double-disk refiner |
1 |
Materials of paper making

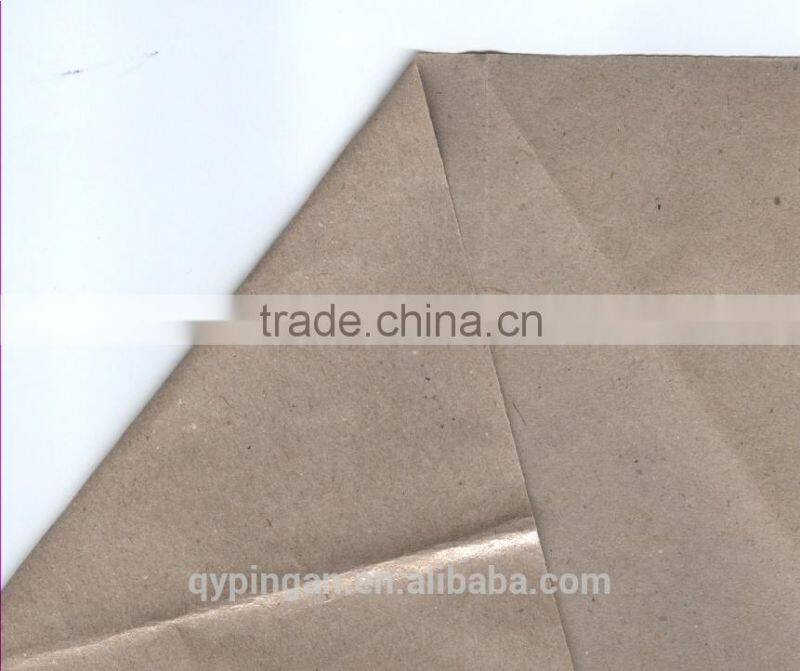

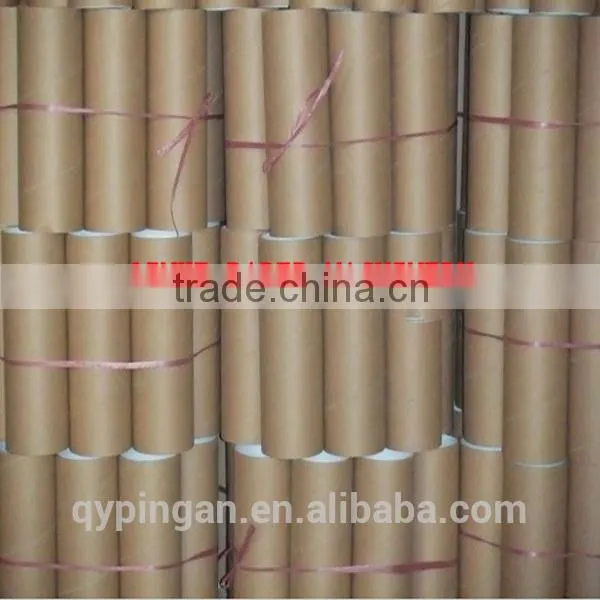

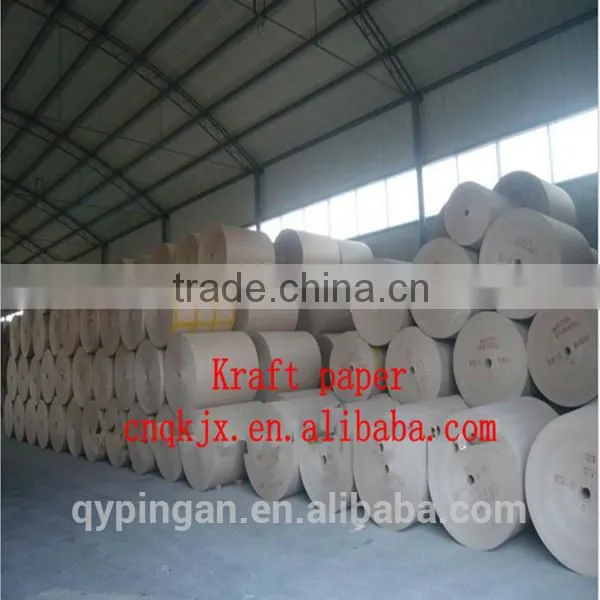

Paper products
Package ang shipment

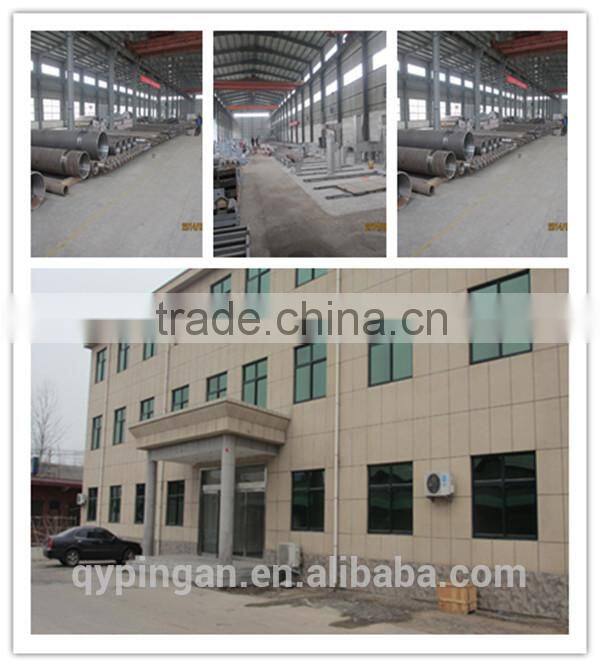

Established in 1968, our company is a large scale enterprise specialized in paper making machinery field, covering the scientific research, design, manufacturing, installation and commissioning area.
The main products of our company are multi-series cylinder mold paper machine, short fourdrinier paper machine based on the paper width of 787 mm, 1092mm, 1575mm, 1760mm, 1880mm, 2100mm, 2400mm, 2640mm, 2800mm, 3200mm, 3600mm, 3800mm, 4600mm; and we are also devoted to the manufacturing of pulp making equipment and paper converting equipment.
We are looking forward to cooperating with you.
Quality Promises
1. The seller should ensure that the products they offer are brand-new and unused. The equipment should be the latest design and made of suitable material. They should design and manufacture the machine strictly abided by the technical requirements signed by two sides and national and industry standards of paper machine.
2. After the production line is installed and debugged under correct guidance of the seller, they should assure that the whole line will produce qualified products 7days after smooth operation and reach the requirements specified by technical standards within 30 days
3. The supplier will appoint 1~2 technicians to install at the spot and ensure the installation safely and duly. The buyer will be responsible for the salary and accommodation of the technicians.
4. The seller should ensure the equipment they offer are safe to use and no hidden dangerous.
5. Quality assurance date: the quality assurance will be carried out based on the contract.
6. The seller need to ensure that they will be responsible for any fault, breakdown, damage of the production line caused by the seller's responsibility of the design, technical craft, manufacturing, installation, debugging, or the fault of material during the quality assurance period set in the contract.
7. During the quality assurance period, the buyer can make request to change the goods once they find that the goods are inconsistent with what described in the contract or they have got the proof of goods’ fault.
8. The seller should ensure that the spare parts of paper machine can be replaced universally and meet the requirements of systematization, standardization, generalization.
Guarantee of Mechanical Property
1. Under normal operation, the life of key parts mainly referring to dryer,rack,touch roll and drive bearing so forth conform to the rules of relevant national departments.
2. The manufacture standard and requirements of products: the products should meet relevant national standards and industry regulations.
3. The quality problem caused by the improper operation and manufacture craft problem will be undertaken by the buyer.
Technical Service
1. The seller should be responsible for the installation,debugging,and production, ensure the achievement of planned economic goal during the planning period and offer the spare parts in time.
2. The technical training of related personnel: the seller will be responsible for training technical backbone from buyer on the spot. The personnel of buyer should master the related skills of operation and maintain and can adjust the technical craft and deal with the fault in time after being trained.
3. The seller promises that after receiving the notice of quality problem from buyer, they will respond within 12 hours for common problem, and will respond within 24 hours for the important problems and will appoint the specially-assigned person to settle the problem on the spot with customer. The seller promises to offer spare parts in a long term with discount price and quick speed.
4. The seller promises to offer a lifelong tracking service for buyer.
1. How long it will take to get the quotation?
We usually give reply within 24hours after getting your inquiry. If you are urgent to get the quotation, please feel free to call 8615036719973 or tell us by email, then we can reply you as the first priority.
2. Can you make paper mill design for us?
Yes, we have professional team with rich experience of paper mill design by CAD software. You only need to tell us your open land dimension, we will make your future paper mill design.
3.How about your machine quality, we are worry about the quality.
Pingan is a mature brand in china, more than 30 years manufacturing experience of different kinds of paper machines. We strictly manufacture and manage according to IOS9001:2000 System and match all the CE standard or more strict standard. Our paper machine is running well in more than 20 countries. We are gold supplier on alibaba.
4. Your machine price is high, is there any discount?
We always provide high quality paper machines, we are paying more attention on oversea market, because of communication time after sales, and also it needs a long time to send new parts. Our paper machines have enough quality standard to make sure the machine can work more than the real warranty period. Our marketing style is quality=price and price=quality, the price will be acceptable for our clients and durable for our machines. When we will negotiate the price with each other during our meeting in factory and get a good satisfaction.
