High Speed PP Straps Making Machines

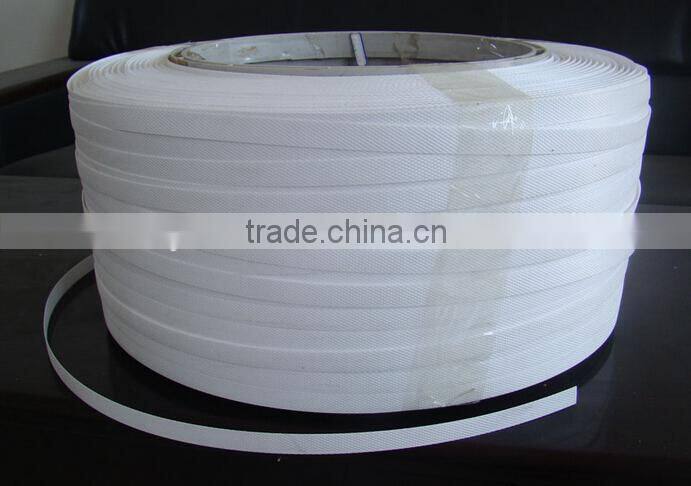

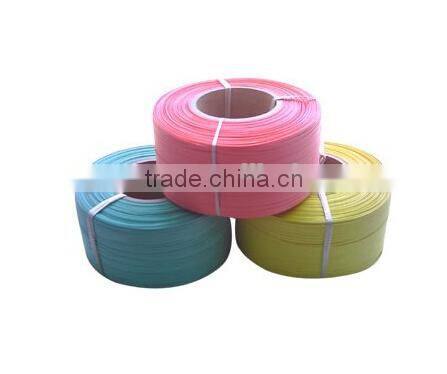

PP strap production line is used to produce mechanical or manual bands with 100% PP recycled granules as materials, if raw materials, it will be better. This kind of band is widely used in the packing of kinds of fields such as mines, general merchandise, weaving, electrical equipment, apparatus, architecture, medicine, etc.
Machine Advantages:
1. This line is specially designed for the production of PP Straps. It can produce 2 PP Straps at the same time that saves energy by 20%-30%;
2. Both the Shaping Water Tank and Calibrating Tank are made of stainless steel that the tanks are long-lived;
3. PLC Controller by touching keys with alternative languages, which is safe and easy to operate that keeps good status of all part and ensures the stable performance of whole line and continuous production of PP Straps.
Technical Parameter:
Processing Materials:PP Recycled Flakes or Granule
Power: 3-phase 380V 50Hz
| Model | APP-65 | APET-75 | APET-90 |
| Extruder | SJ-65/30 | SJ-75/35 | SJ-90/35 |
| Productivity | 60-100kg/h | 80-120kg/h | 120-150kg/h |
| Drive Motor | 22kw | 30kw | 55kw |
| Two-station Winder | 12-120m/min,adjustable | ||
| Strap Size | Width:5mm-20mm | Width:10mm-25mm | Width:20mm-35mm |
| Thickness:0.36mm-1.0mm | Thickness:0.5mm-1.3mm | Thickness:0.5mm-1.8mm | |
| Installed Capacity | about80kw | about 90kw | about110kw |
| Line Dimension | 30m×2m×2.2m (L×W×H) | 30m×3m×4.5m (L×W×H) | 30m×5m×6m (L×W×H) |
Components List
No. |
Items |
Quantity |
01 |
Vacuum Feeding and Drying System |
1 set |
02 |

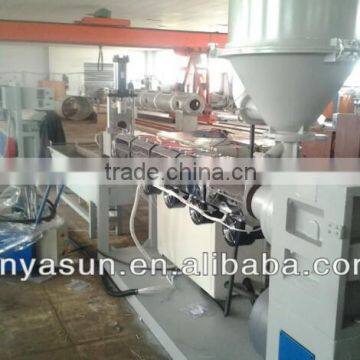

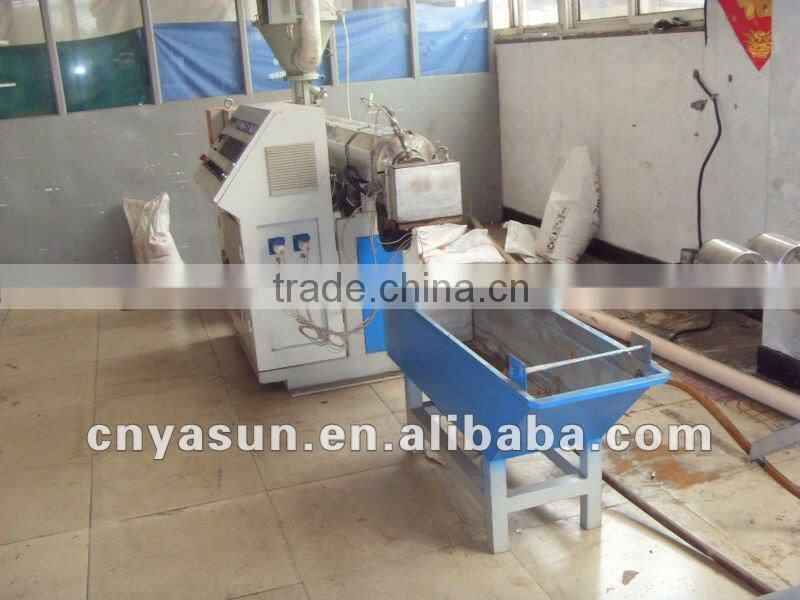

AS65/30 Effective Single-screw Extruder |
1 set |
03 |
Mould |
1 set |
04 |

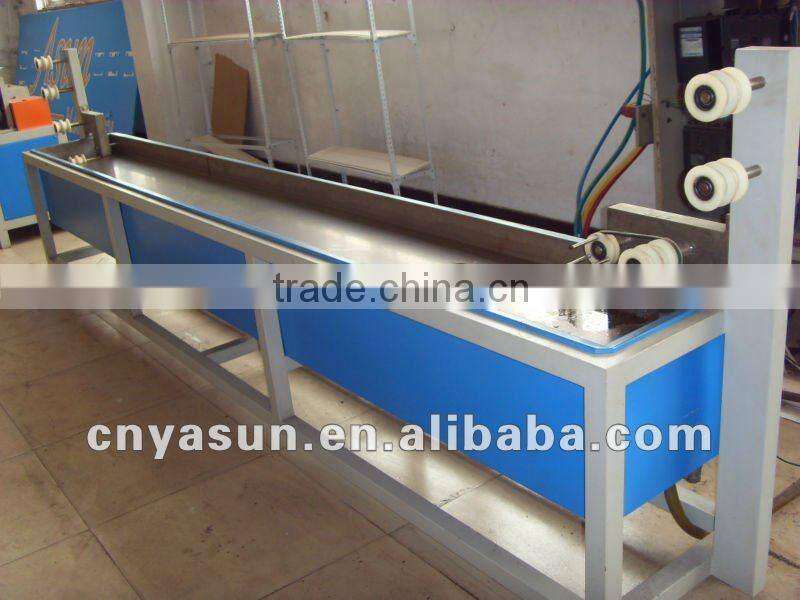

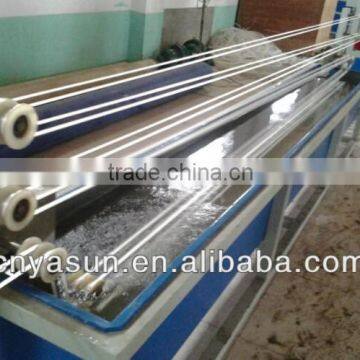

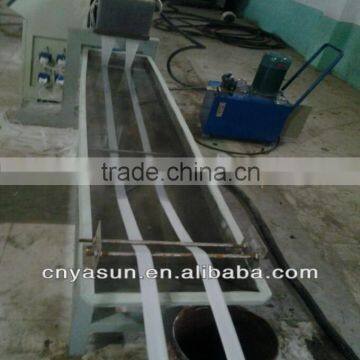

Straping Band Cooling Tank |
1 set |
05 |
The First Haul-off |
1 set |
06 |

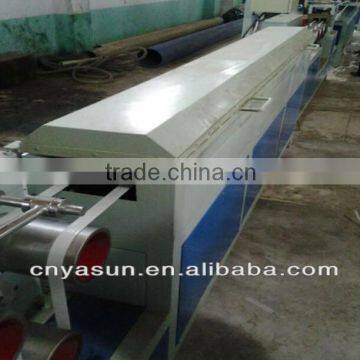

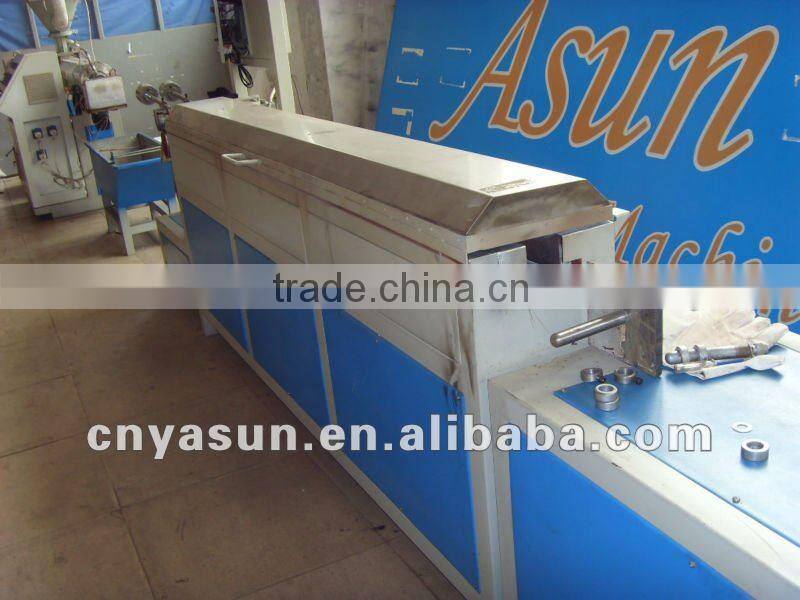

Heat Oven |
1 set |
07 |

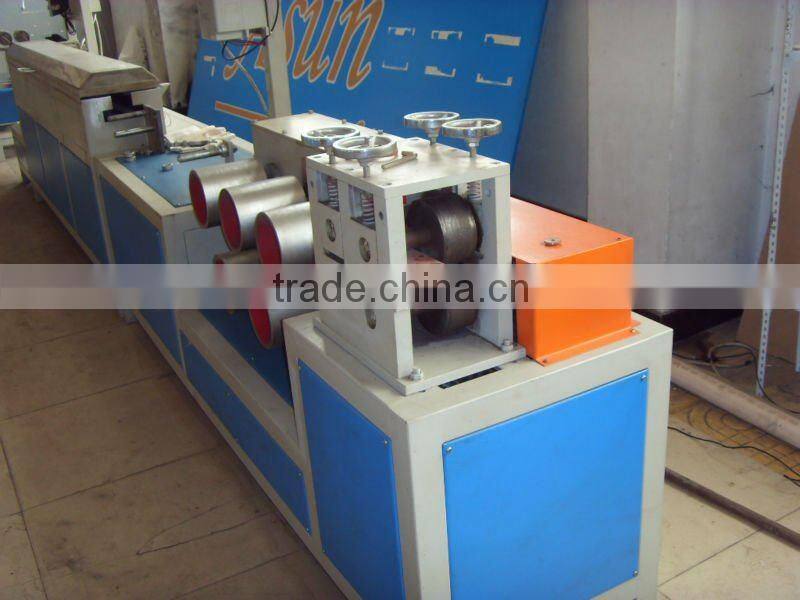

Stretching Machine |
1 set |
08 |
Embossing Machine |
1 set |
9 |
Calibrating Cooling Tank |
1 set |
10 |
The Second Haul-off Machine |
1set |
11 |

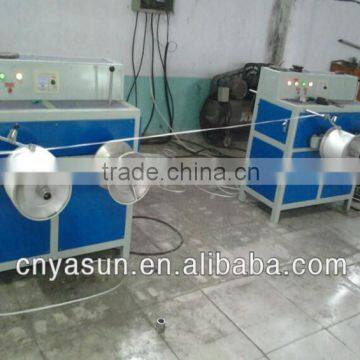

Winder |
1 set |
12 |
Electric Control Cabinet |
1set |
