China Manufacture Granite Block Pushing Hydro Bag
- 5000 Piece / Pieces per Month
- Xiamen
- T/T Credit Card
You May Like
Product Details
Place of Origin | Fujian, China | Brand Name | BESTLINK | |
Model Number | BL hydro bag | Condition | New | |
After-sales Service Provided | No overseas service provided |
Wooden case for China Manufacture Granite Block Pushing Hydro Bag
Product Description
China Manufacture Granite Block Pushing Hydro Bag
Products Feature:
The steel cushion Hydro Bag is widely used in the marble and stone quarrying industry,specially for stripping blocks from the mountain. The revolutionary aspect of the HYDRO BAG equipment lies basically in the possibility of stripping blocks up to 1000 tons or more, without the need to prepare slots to house the jacks since the HYDRO BAG has an original thickness of just 2 mm (0.08") and can be easily slipped into the wire saw cut.

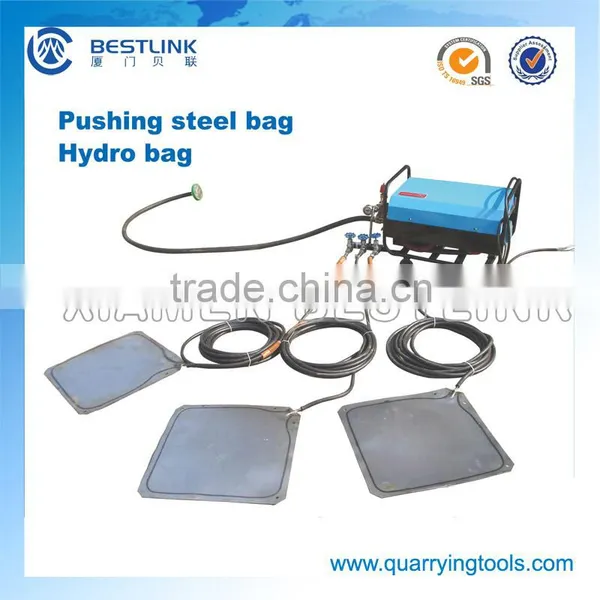

A complete HYDRO BAG equipment consists of:
1. Electric or pneumatic pump unit to create the pressure for the cushions;
2. Safety valves and distribution valves;
3. Pipes, cocks and inlet filters;
4. Quick couplings;
5. A series of HYDRO BAG cushions.
Main Technical Data:
Specification | Theoretical Pushing Capacity | Net weight (kg) |
50*50cm | 75 tons | 2.5 kgs |
100*50cm | 150 tons | 5.0 kgs |
100*100cm | 300 tons | 10.0 kgs |
100*200cm | 600 tons | 20.0 kgs |
150*150cm | 675 tons | 22.5 kgs |
More specification according to your demand!

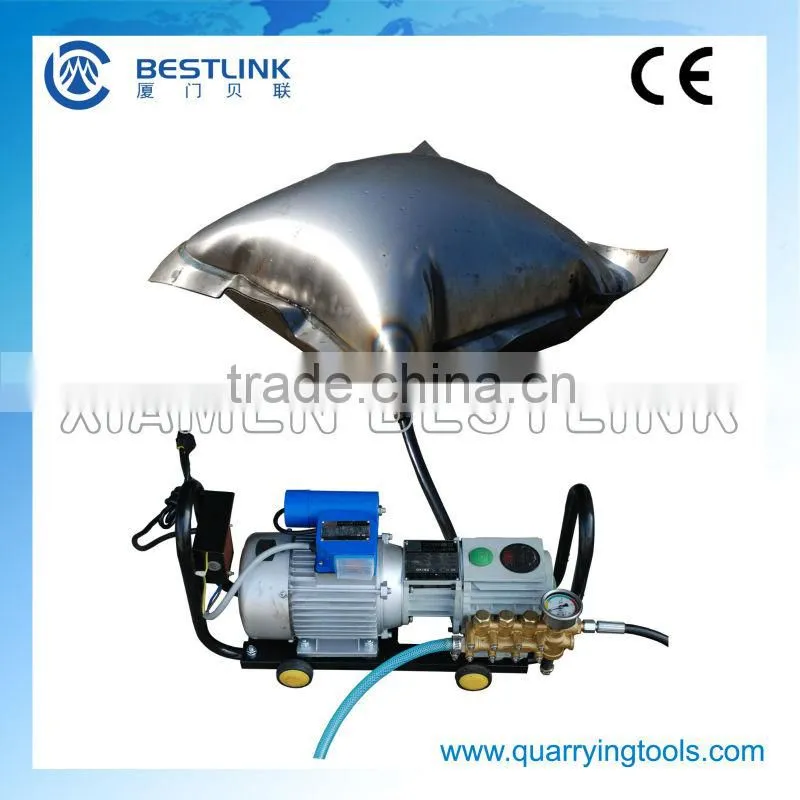

Pump Unit:
Item | Power | Specification | Weight |
High Pressure Water Pump | Electric | 2 phase, 220V/50Hz | 25.0 kgs |
High Pressure Water Pump | Pneumatic | air consumption 2 cbm/min, 5-7 bar | 25.0 kgs |
For more info.:

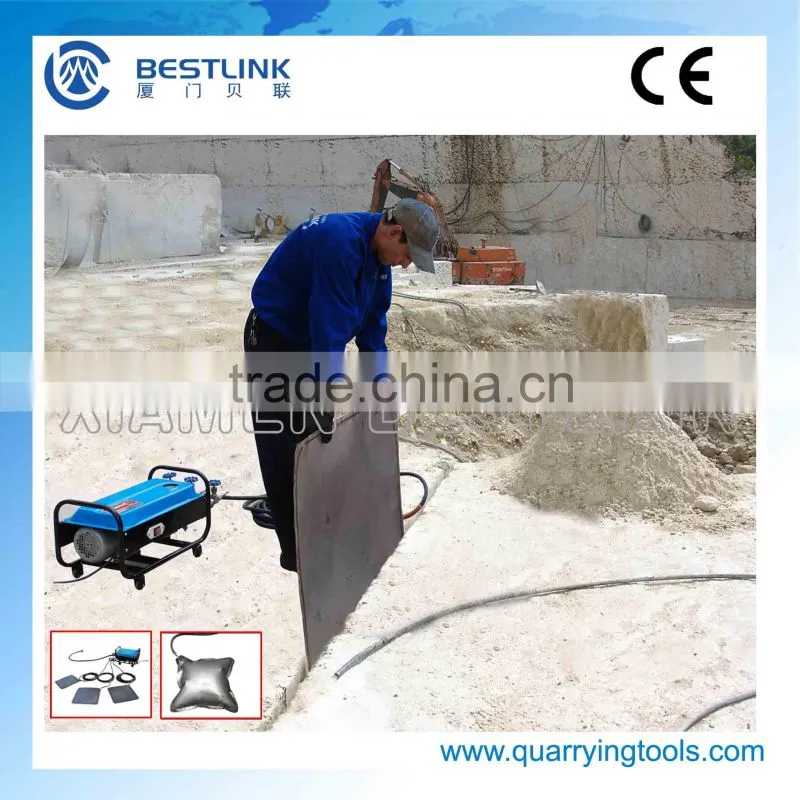

More photos for this steel hydro bag, and show you how it working.

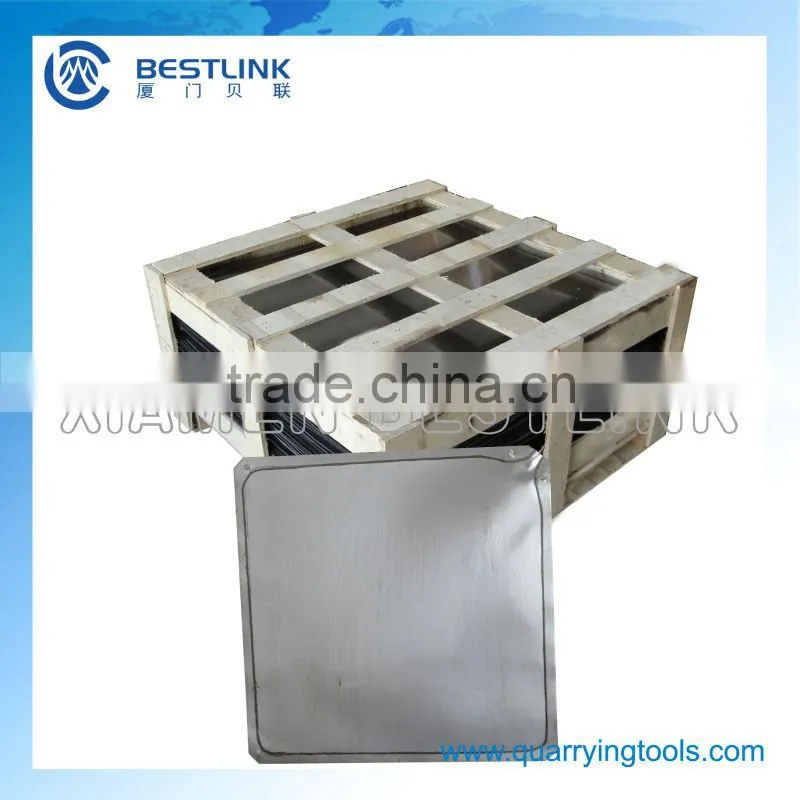

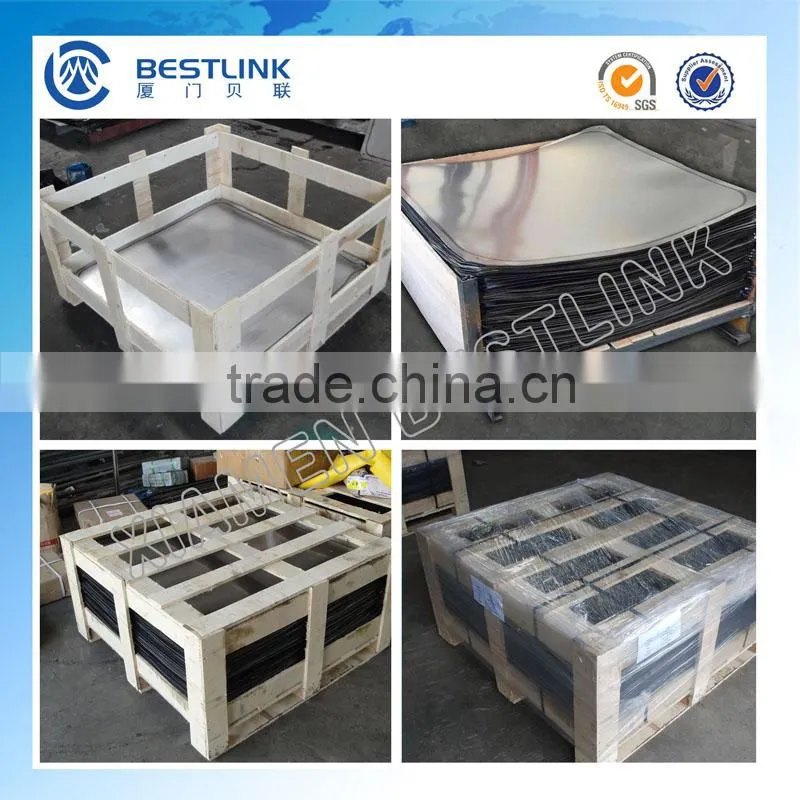

Package for the quarry stone Hydro bag:

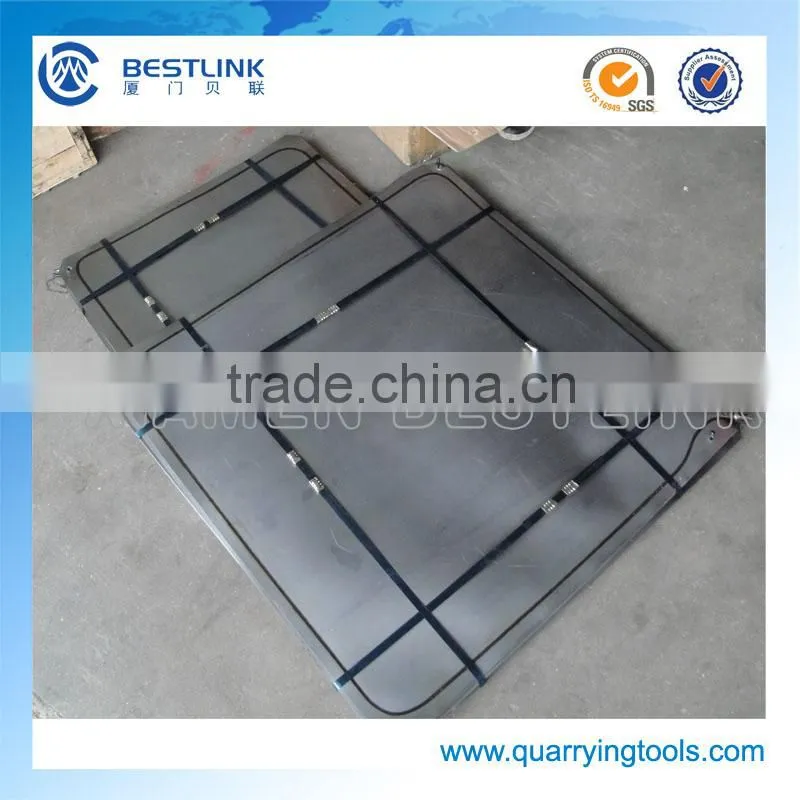

This Quarry Stone Pushing Tools Steel Hydro Bag will be packing into the wooden case, if the qty is enough. If you only need a few quatities, those hydro bag will be packed with a steel packing belt.
