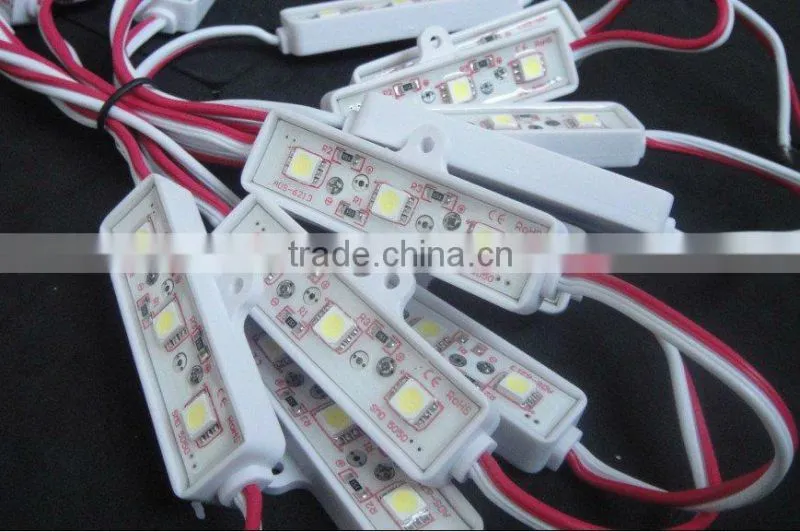

Help CenterOutdoor 5050 Smd Injection Led Module Panel Light for Screen or Sign Board
Related Products
-
Led Letter Signage 5050 Module Light Silmbox ce Rohs Approval Manufactory in Shenzhen ChinaUS$ 0.4 - 0.8MOQ: 20 Pieces -
Dot Madrix LED Pixel RGB Full Color Flasing Programmable Addressable Individual LED RGBUS$ 0.4 - 0.8MOQ: 20 Pieces
-
Logo Sign Backlight 5050 Smd LED ModuleUS$ 0.5 - 1MOQ: 20 Pieces
-
Outside Sign Letter Light Box DC12V 5050 SMD Led Modules 3 Chips Injection ModuleUS$ 0.3 - 0.8MOQ: 20 Pieces
-
Outside Signage LED LightUS$ 0.5 - 1MOQ: 20 Pieces
Specifications
1, direct from factory led backlight 5050 module2, Epistar chip for LED
3, CE/RoHS
4, 50.000 Hours
5, Shenzhen LED factory
Advantages
1. With 3pcs 5050 SMD LED,with large abd uniform angle, no shadow,low thermal resistance,low brightness declines,
effciently under the harsh environment.Energy saving,environment-friendly,long life span for 50,000hrs
3. Suitable for channel letters and light boxes backlighting,big logo etc.
4. This module can be linked up to 20pcs at max, more than 20pcs is strictly prohibited,
5. The diameter of power cord should be based on the actual maximum current, the product power,
cable length(recommend no more than 6meters)and the voltage of transmission line.
Specification
| color | Voltage | Power | LED Type | LED qty | Lifespan | Viewing Angle | Lm | nm/K | IP Grade |
| red | DC12V | 0.72W | SMD 5050 | 3 | 50000h | ≥140 | 12 | 619-635 | IP66 |
| green | DC12V | 0.72W | SMD 5050 | 3 | 50000h | ≥140 | 27 | 512-528 | IP66 |
| blue | DC12V | 0.72W | SMD 5050 | 3 | 50000h | ≥140 | 8 | 463-475 | IP66 |
| yellow | DC12V | 0.72W | SMD 5050 | 3 | 50000h | ≥140 | 8 | 584-595 | IP66 |
| white | DC12V | 0.72W | SMD 5050 | 3 | 50000h | ≥140 | 60 | 6000-7000 | IP66 |
LED module

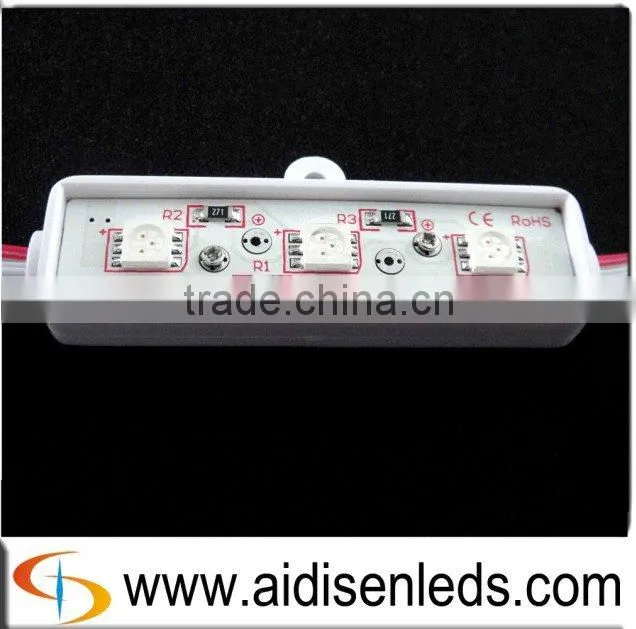

1, ADS-60123 series module used plastic shell, PCB plate,Red&white wire(thermostability,cold-resistant,resistant to UV)
2, With 3pcs 5050 SMD LED,with large abd uniform angle, no shadow,low thermal resistance,low brightness declines,
3, work effciently under the harsh environment.Energy saving,environment-friendly,long life span for 50,000hrs
4, Suitable for channel letters and light boxes backlighting etc.
5, This module can be linked uo to 20pcs at max, more than 20pcs is strictly prohibited,
6, The diameter of power cord should be based on the actual maximum current, the product power,cable length(recommend no more than 6meters)and the voltage of transmission line.
Trade Terms
1.Payment: T/T 100% in advance T/T,Paypal,Western Union
2.Production lead time 20000pcs: 2-3days, 20000~100000pcs:5~7days, above 100000 pcs :10 days.
3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, Mainland China
6.MOQ: 100 pcs
Our service
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information
