Help CenterDC12V 3 Chips 5050 SMD Waterproof White Color LED Module Manufacturer CE&RoHS
Related Products
-
Advetising 3-chips Smd 5050 DC12V Injection Waterproof Led Module LightUS$ 0.4 - 0.7MOQ: 100 Pieces -
DC12V Power Saving Injection Ce&rohs LED Module Lighting Direct From FactoryUS$ 0.55 - 0.75MOQ: 100 Pieces
-
4 Chips 5050 Smd DC12V Waterproofing LED Module for Outdoor Logo Sign or LettersUS$ 0.55 - 0.75MOQ: 100 Pieces
-
Dot Madrix RGB Fullcolor Flasing Programmable Addressable Individual LED RGB LED PixelUS$ 0.4 - 0.8MOQ: 100 Pieces
-
Outdoor Advertisement 5050 Smd Led Module(DC12V,LPD6803)US$ 0.8 - 1.5MOQ: 50 Pieces
Specifications
1, direct from led backlight 5050 SMD LED module factory2, Epistar chip for 5050 SMD LED
3, CE/RoHS
4, high lumen 50000hour
Advantages
1, direct from factory led backlight module
2, Epistar chip for LEDs
3, CE/RoHS
4, 50.000 Hours
5, Shenzhen LED factory
6, 3-5 day delivery
7, OEM/ODM accept
LED 5050 SMD module

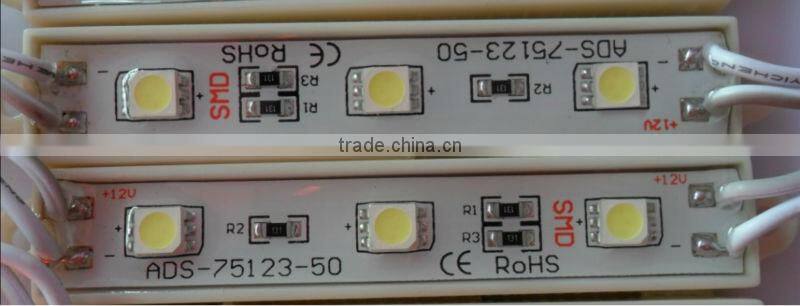

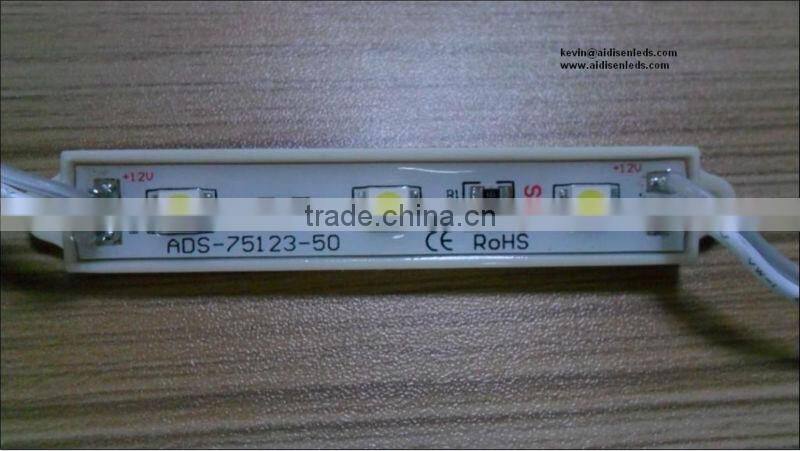

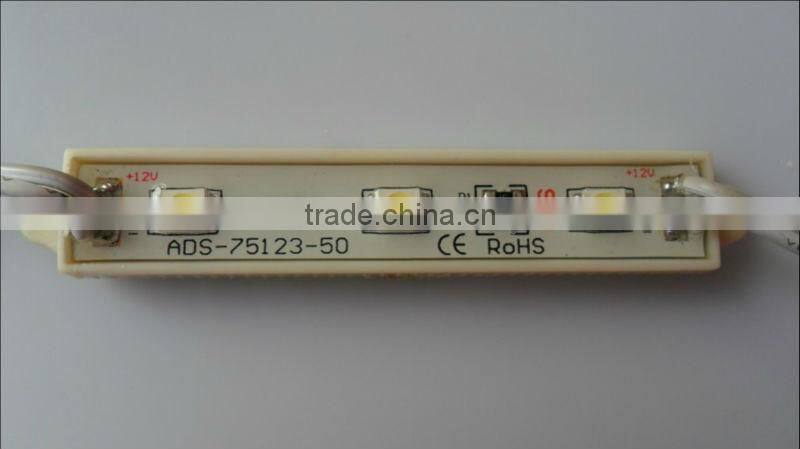

1, ADS-75123 series module used plastic shell, PCB plate,Red&white wire(thermostability,cold-resistant,resistant to UV)
2, With 3pcs 5050 SMD LED,with large abd uniform angle, no shadow,low thermal resistance,low brightness declines,
3, work effciently under the harsh environment.Energy saving,environment-friendly,long life span for 50,000hrs
4, Suitable for channel letters and light boxes backlighting etc.
5, This module can be linked uo to 20pcs at max, more than 20pcs is strictly prohibited,
6, The diameter of power cord should be based on the actual maximum current, the product power,
cable length(recommend no more than 6meters)and the voltage of transmission line.
Specification:
| Item | Color | LED Qty | Lumen | Wavelength Scope(nm/K) |
LED | PCB Dimension | Units |
| ADS-75123 | Red | 3 | 18 | 619-635K | 5050SMD | 70*8*2mm | 20pcs/chain |
| Green | 36 | 512-528K | |||||
| Blue | 15 | 463-475K | |||||
| Yellow | 15 | 584-595K | |||||
| warm white | 54 | 3000-3500K | |||||
| white | 54 | 6000-7000K | |||||
| cold white | 54 | 9000-15000K |
ADS-75123 module parameter
| Items | Parameter | Units |
| Voltage | DC12 | V |
| Power | 0.72 | W |
| Temperature | -40-60 | °C |
| IP grage | IP66 | |
| demension | 78*12*5 | mm |
| Lifespan | 50000 | hours |
| View angle | 120 | °C |
Applications

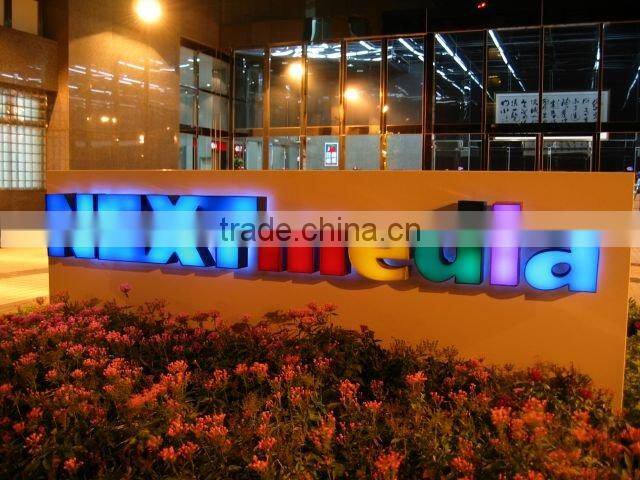

1) Using for the word advertising signs,
2) advertising light box, LED luminous characters,
3) Logo signage backlight
4) light box ,slim light box
5) light for street light
6) channel letter light backlit sign
7) decoration and so on
Trade Terms
1.Payment: T/T 100% in advance T/T,Paypal,Western Union
2.Production lead time 5000pcs: 2-3days, 10000~20000pcs:3-5days, above 50000pcs: 5-7days.
3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, Mainland China
6.MOQ:20M
Our service
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information
AidisenLED 2011 Exhibition
1. Exhibition Name Middle East Sign & Graphic Imaging 2011
Place: Dubai Airport Expo, Dubai
Date: 24-26th Jan, 2011
Booth/Stand Number U25
2. Exhibition Name LED China 2011
Place China Import and Export Fair Pazhou Complex, Area B, Guangzhou
Date 1st Mar. To 4th, Mar., 2011
Booth /Stand Number: G581
3. Exhibition Name Euro-Reklama Outdoor EXPO 2011
Place Poznan International Exhibition Centre, Poland
Date 12-15th Apr. 2011
Booth/Stand Number: Confirmed soon
4. Exhibition Name Expopublicitas 2011
Date 25th, May to 27th, May., 2011
Venue: Mexico city, Mexico
Booth/Stand Number: 1303
5. Exhibition Name: LED Shanghai 2011
Date: 2011 6~9th July
Venue: Shanghai, China
Booth No. 552(E1 HALL)
6. Exhibition Name: Serigrafia Sign 2011
Date: 21th, July. To 23th, July., 2011
Venue: Expo Center Norte - Sao Paulo, Brazil
Booth/Stand Number: 245-G
7. Exhibition Name: Expo Sign & Serigrafia
Date: 2011 4-6th August
Venue: Buenos Aires, Argentina
Booth/Stand Number: 1836
8. Exhibition Name: Sign Africa 2011
Date: 2011 24~26th August
Venue: Johannesburg, South Africa
Booth No. J8
9. Exhibition Name: Hong Kong International Lighting Fair(Autumn Edition)
Date: 2011 27-30th October
