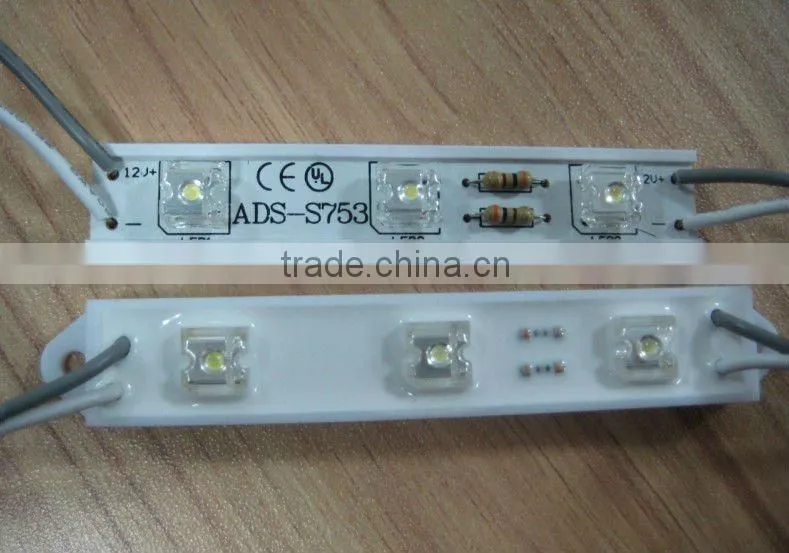

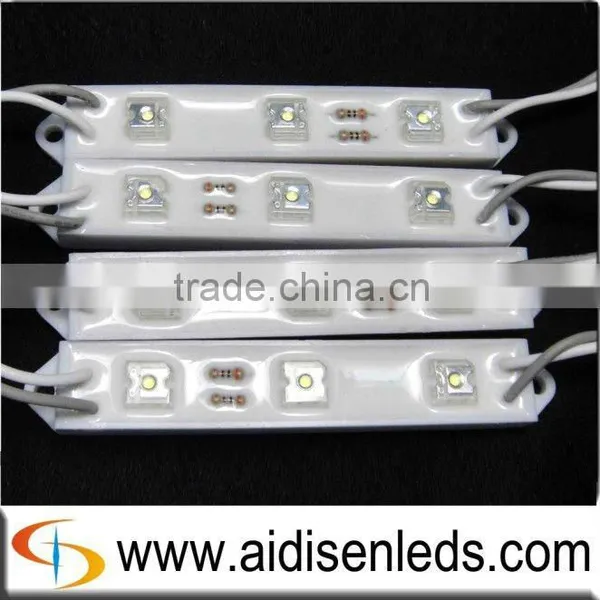

Waterproof Superflux Piranha Led Module

Waterproof Superflux Piranha Led Module thumbnail-1
Waterproof Superflux Piranha Led Module photo-1
US$ 0.1 - 0.25 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Model Number:
ADS-S753
Chip Material:
Other, Epistar
Emitting Color:
Other, white,red,blue,yellow,green
Contact Supplier Request Quote Chat Now
Shenzhen Aidisen Optoelectronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number ADS-S753
Chip Material Other, Epistar
Emitting Color Other, white,red,blue,yellow,green
Luminous Intensity 3000 mcd
Luminous Flux(lm) 6lm per led,18 lumen for 3 leds
Power Other, 0.3w
Color Temperature 6000k-7000k,
Operating Temperature(℃) -40, 60
Storage Temperature(℃) -50, 60
Place of Origin Guangdong, China
Brand Name ADS
Certification CE

Specifications

1,Direct from factory LED Piranha superflux Module light
2,Epistar chip with 50.000 hours
3,CE/RoHS
4, with 3-5days deliver

 Advantages

1,Direct from factory  Piranha superflux 3 chips led module light
2,Epistar chip with 50.000 hours
3,CE/RoHS/SGS
4,Manufacturer with  3-5days delivery

5, with low price for manufacturer

6, OEM/ODM accept





 ADS-S753 Series
Product Feature


1, ADS-S753 series module used plastic shell, PCB plate,grey&white wire(thermostability,cold-resistant,resistant to UV)


2, With Piranha superflux 3 chips led module LED,with large abd uniform angle, no shadow,low thermal resistance,low brightness declines,


3, work effciently under the harsh environment.Energy saving,environment-friendly,long life span for50,000hrs


4, Suitable for channel letters backlighting and lightbox and so on


5, This module can be linked up to 20pcs at max, more than 20pcs is strictly prohibited,


6, The diameter of power cord should be based on the actual maximum current, the product power,
cable length(recommend no more than 6meters)and the voltage of transmission line.



Specification

Items Color LED Qty Lumen
(LM)		   Wavelength
Scope(nm/K)		  LEDs PCB
dimension  		   unit
ADS-S753 series  Red 3 6 619-635K superflux Piranha        70*10*5       20PCS/chain
 Green 15 512-528K
 Blue 9 463-475K
 Yellow 6 584-595K
 warm white 18 3000-3500K
 white 18 6000-7000K
 cold white 18 9000-15000k



ADS-6493-35  module parameter

Items Parameter unit
Voltage DC12 V
Power 0.24 W
Temperature -40-60 °C
IP Grade IP66
demension 75*12*7 mm
lifespan 50000 hours
View angle 120   °C





LED Module Applications



1,channel letter backlighting

2,Advertisements sign backing

3,light box and bill boards backlight

4, indoo and outdoor ilumination

5, 3D letter sign backlit and decoration





Features:
1. Low wattage, energy efficient and major reduction in power costs
2. Virtually no maintenance
3. Low heat, high brightness, and works well under harsh conditions
4. Including 3M adhesive tape for convenient mounting
5. Full range of colors: Red, yellow, blue, green, and white
6. Input voltage: 12V DC, professionally designed to be fully waterproof
7. IP 65 protection degree can be normally operated even in cloudy, rainy and snowy weather
8. Solid-state, high shock or vibration resistant
9. No RF interference
10. Long life 50, 000hours
