ADS-AC3212-24 led pixel light:
1.ADS-3212 is a combination of E14(E10)lamp holder and PCB board made,including 9PCS 2835 SMD LED
2.This product has high brightness, low power consumption, long life, low voltage, low attenuation, 360 light emitting characteristics
3.Products powered 24V and 60v.Products used in amusement parks, game rooms, showrooms, Carousel, hotels, KTV entertainment, ferris wheel, entertainment venues, recreational facilities and other indoor and outdoor decorative lighting.
4.This product installation, E14 lamp holder spiral installed in parallel, the power line thickness should be based on the actual maximum current that may occur, the product power, cabling length (recommended no more than 5 meters) as well as low-voltage transmission line voltage drop may be.
ADS-AC3212-24 Single color led point source parameters:
| Item | Parameter | Unit |
| Voltage | AC24 | V |
| Power | 1.7 | W |
| Working Temp | -40-60 | °c |
| IP Grade | IP66 | |
| Dimension | 32*h26 | MM |
| Lifespan | ≥50000 | h |
| Viewing Angle | ≥140 | ° |
Optical characteristics:
| Item | Color | Led QTY | Lumen | Color Temp | PCB Board dimension | Unit | Led Type |
| ADS-3212 | RED | 12 | 76 | 619-635 | R=16 | 1pcs | smd2835 |
| Green | 120 | 512-528 | |||||
| White | 216 | 6000-7000 | |||||
| Yellow | 72 | 584-595 | |||||
| Blue | 72 | 463-475 |

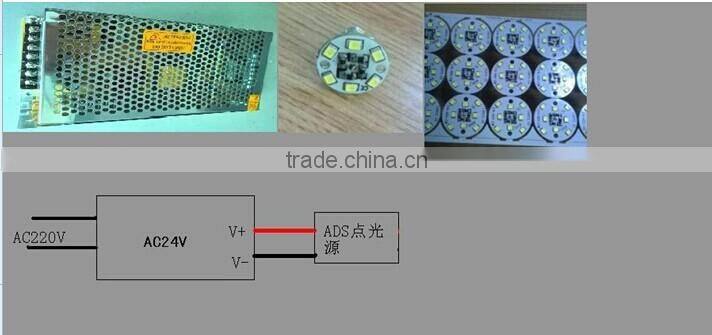

Installation Diagram:
A.Conneact DC24V transformer
B.The transformer 220V voltage
Dimension :
Picture:
