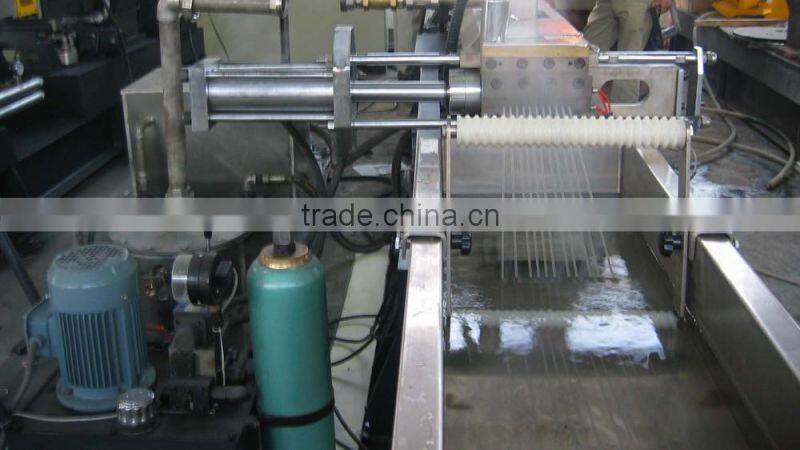

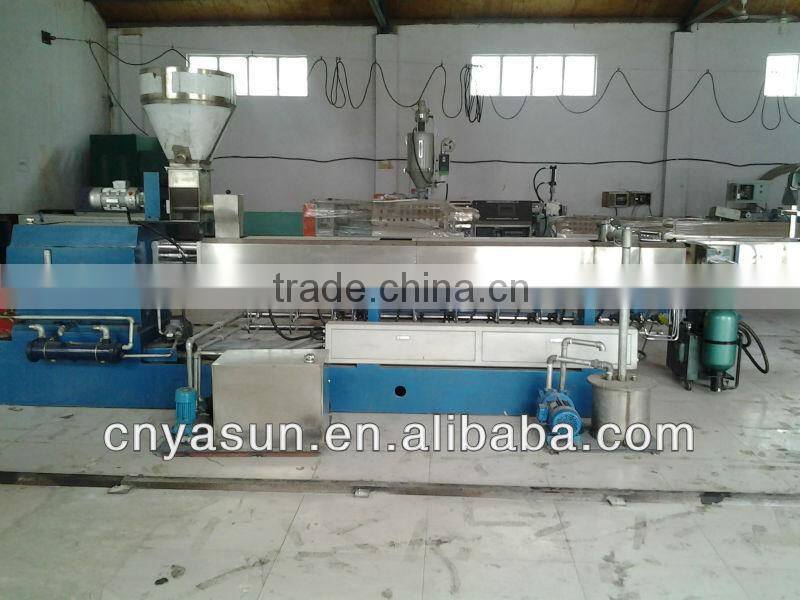

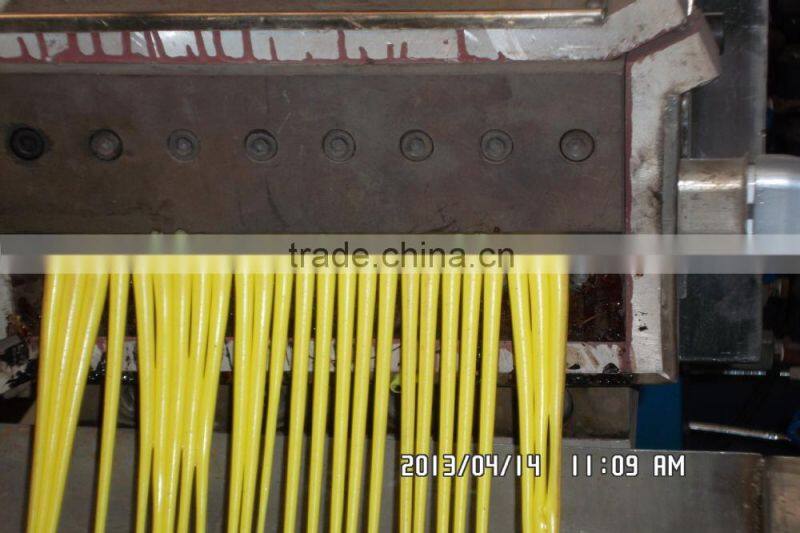

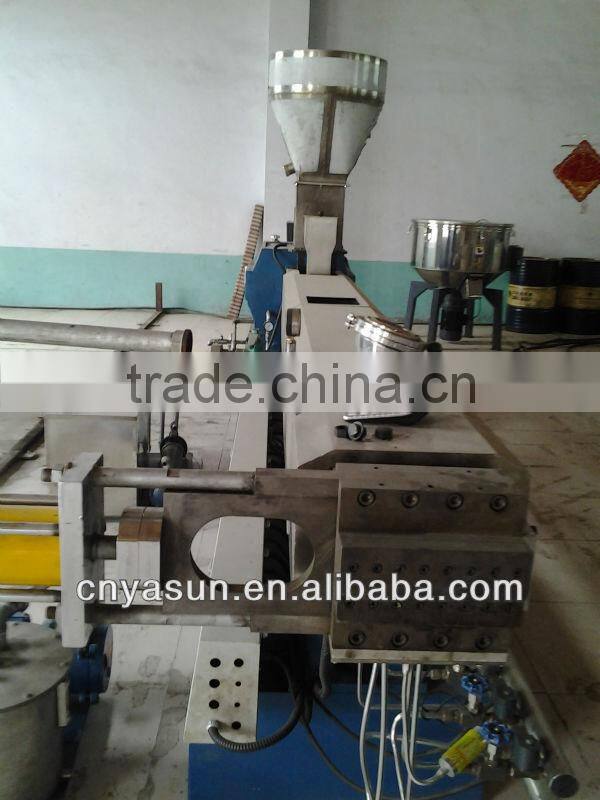

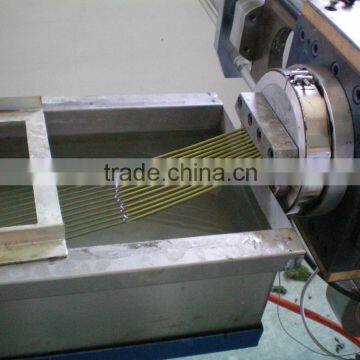

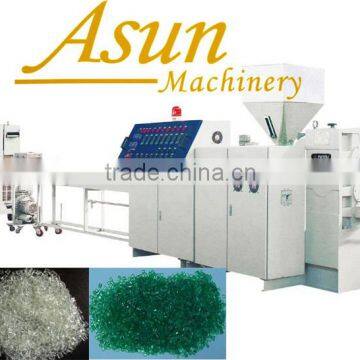

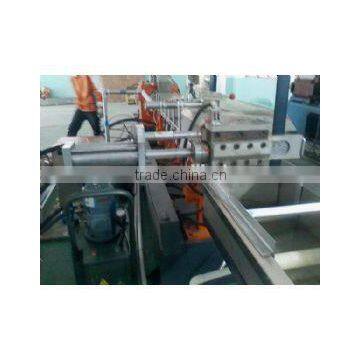

Qingdao PP bags recycle granule machine
Features:
1.The first stage is Co-rotating twin-screw compounder. Use the twin-screw advantage of high-speed, high shear, strong compounding to realize material full plasticization and compounding, because no drivehead back pressure, so we can according to different materials flexibly arrange screw array to achieve the best compounding condition.
2.The second stage is single screw extruder. The screw low-speed and deep groove feature provides a low-cut processing environment , while mating barrel cooling, to prevent the plasticized material from generating thermal decomposition in high-pressure extrusion.
Application:
Widely used for heatsensitive materials in various field, such as: PVC, XLPE, Halogen Free Flame Retardant cable material, shield material, high density carbon black master batch materials and rubber dehydration processing operations etc.
SHJS series two-stage compounding extruder parameter:
Model |
Screw Dia D (mm) |
L/D Ratio |
Screw speed N (r/min) |
Motor power P (KW) |
output Q (kg/h) |
|
SHJS50/100 |
SHJ50 |
50.5 |
24~48 |
500 |
37 / 45 |
100~350 |
SJ100 |
100 |
7~20 |
85 |
30 / 37 |
||
SHJS65/150 |
SHJ65 |
62.4 |
24~48 |
500 |
55 / 75 |
200~500 |
SJ150 |
150 |
7~20 |
85 |
37 / 45 |
||
SHJS75/180 |
SHJ75 |
71 |
24~48 |
500 |
90 / 110 |
400~800 |
SJ180 |
180 |
7~20 |
85 |
45 / 55 |
||
SHJS95/200 |
SHJ95 |
93 |
24~48 |
400 |
200 / 250 |
700~1500 |
SJ200 |
200 |
7~20 |
85 |
55 / 75 |
||
Responsible for the installation and debugging,equipment warranty for one year.
