Jiaozhou High Speed Automatic Disposable Plastic Cup Making Machine/PP Coffee cup machine

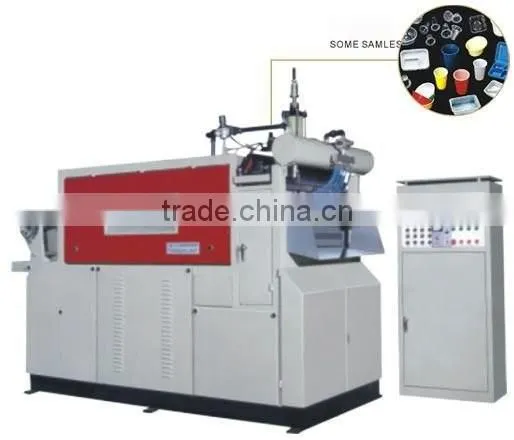

Asun-660C PLASTIC CUP MAKING MACHINE (Multifunctional Thermoforming Machine) is designed with most advanced thermoforming technology, a combination of mechanical, electrical and pneumatic components. And the whole system was controlled by PLC. The machine has man-interface operation which sends sheet by chain, running by cam, forming by up and down mould and cutting by mould knives. It combines the sheet sending, heating, stretching, forming, cutting into one process. The machine is suitable for PP, PE, PS, ABS material. They are widely used in producing disposable tablewares as various kinds of cups like ice cream cups, milk cups, jelly cups,cup covers, instant noodle bowls, toy boxes, etc. It can also be used in plastic package in medicine manufacturing, light industry, textile, tourism, etc.
Main Technical Parameters:
Model |
Asun-660C |
Suitable material |
PP,PS,HIPS,PET,PVC |
Suitable thickness of sheet |
0.2-2mm |
Suitable width of sheet |
330-660mm |
Max.forming area |
640x220mm 640x400mm |
Max.depth of forming |
160mm |
Adjustable length of the trip |
100-400mm |
Rated heating power |
60kw |
Regulator pressure mould heating |
50A |
Main machine motor power |
7.5kw |
Using power |
3x380V+N+PE,50HZ |
Sending motor power (Japan Yaskawa) |
3kw |
Rewinding Motor Power |
0.37 kw |
Productivity efficiency |
20-35times/min |
Using pressure |
0.5-0.8Mpa |
Air consumption |
2m³/min |
Water consumption(20°C) |
0.5³/min |
Water Temperature |
30°C |
Machine weight |
5.0/5.5T |
Dimension |
3250x1650x2350mm |
Advantage
1. EPS Foaming-Cup Machine is used to produce large quantities of hot coffee cup, hot tea cup, hot soup blow, noodle tub and other food and beverage packing .
2. Light weight, good rigidity and well heat isolation.
3. The machine holds many merits such as high foaming times, high producing efficiency, low steam consumption, low cost and different model products made at same time.
4. Pipes and tubes of the transferring system are all made from stainless material so that they resist eroding and easy to be cleaned.
5. Pre-expand and forming procedures are all operated by automatic controller, the mechanical and electrical device or apparatuses are all from famous brand.
Technics Process:
Mixing Raw Material→Pre-expand→dry→boult Material→storage→ injecting Forming
Responsible for the installation and debugging,equipment warranty for one year.
