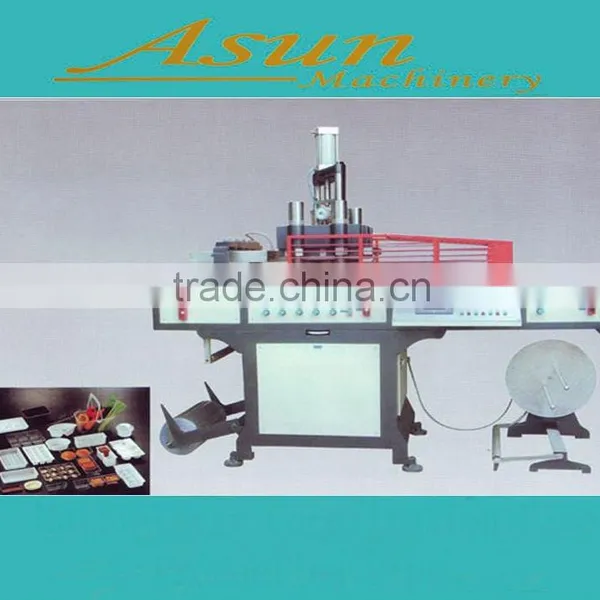

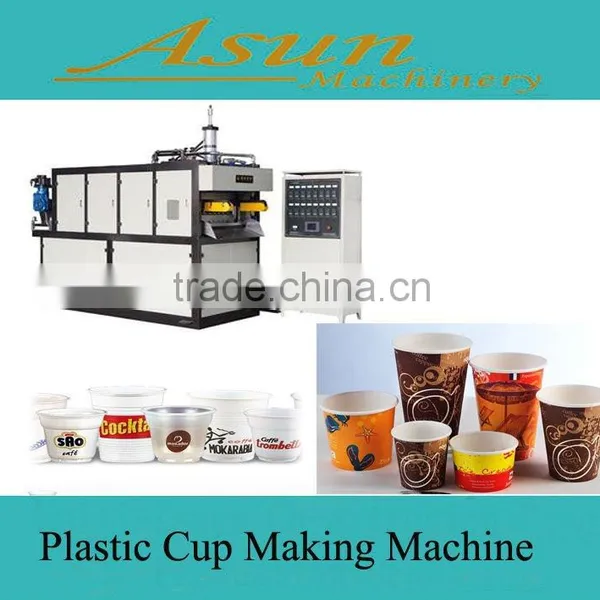

Automaic plastic plates and tea cup making machine
The machine set takes Expandable Polystyrene and zinc stearate as raw material, steam foaming, after two steps of foaming can produce cup and bowl. PLC control production. high level of automation, low labor intensity; high productivity, low cost. producing process adopt complete shut-off design in order to prevent from getting in touch with air while raw material expanding, making the cups and bowls good quality. Fully use energy sources and reduce forming time.
Sheet Materials |
PP.PS.PET.PE.ABS |
Sheet Width |
500-650mm |
Sheet Thickness |
0.25-2.5mm |
Max. Forming Area |
620x270mm |
Max. Forming depth |
140mm (Can be adjust more with request) |
Forming Pressure |
0.5-0.8Mpa |
Productivity |
10-35 mould/min |
Rated Heading Power |
67Kw |
Starting Power |
70K w |
Total Weight |
4.5ton |
Water Temperature |
>30℃ |
Overall Dimensions |
3300x1500x 2200 mm |
Advantage

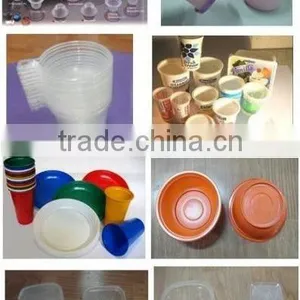

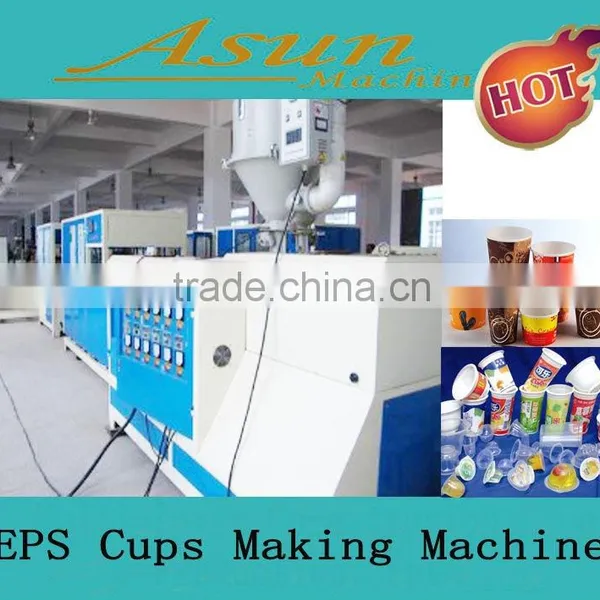

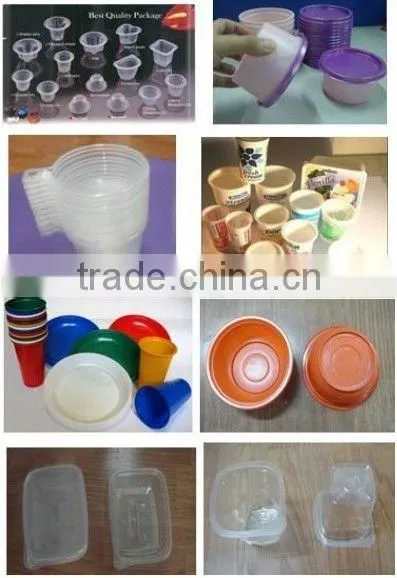

1. EPS Foaming-Cup Machine is used to produce large quantities of hot coffee cup, hot tea cup, hot soup blow, noodle tub and other food and beverage packing .
2. Light weight, good rigidity and well heat isolation.
3. The machine holds many merits such as high foaming times, high producing efficiency, low steam consumption, low cost and different model products made at same time.
4. Pipes and tubes of the transferring system are all made from stainless material so that they resist eroding and easy to be cleaned.
5. Pre-expand and forming procedures are all operated by automatic controller, the mechanical and electrical device or apparatuses are all from famous brand.
Technics Process:
Mixing Raw Material→Pre-expand→dry→boult Material→storage→ injecting Forming
Responsible for the installation and debugging,equipment warranty for one year.
