Home > Products > Plastic Cup Making Machine > Disposable Plastic Glass Equipments /Disposable Snack And Plastic Cup Extruder Machinery
Disposable Plastic Glass Equipments /Disposable Snack And Plastic Cup Extruder Machinery
- 35 Set / Sets per Month
- Qingdao port
- T/T Credit Card
Product Details
Application: | Other, cup | Plastic Processed: | WPC | Screw Design: | Single-screw |
Automatic Grade: | automatic | Place of Origin: | Shandong, China | Brand Name: | Asun |
Model Number: | AS | Voltage: | 220/380V | Power(W): | 150kw |
Dimension(L*W*H): | 25*3*3 | Weight: | 9t | Certification: | CE |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

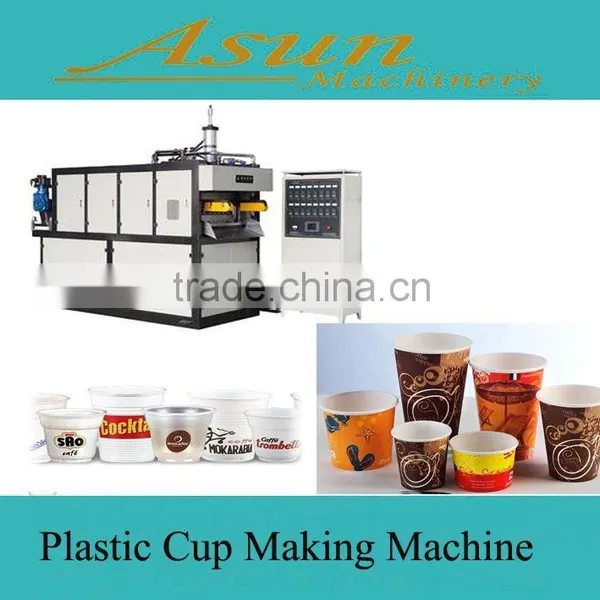

Disposable Plastic Glass Equipments /Disposable Snack And Plastic Cup Extruder Machinery
Introduction

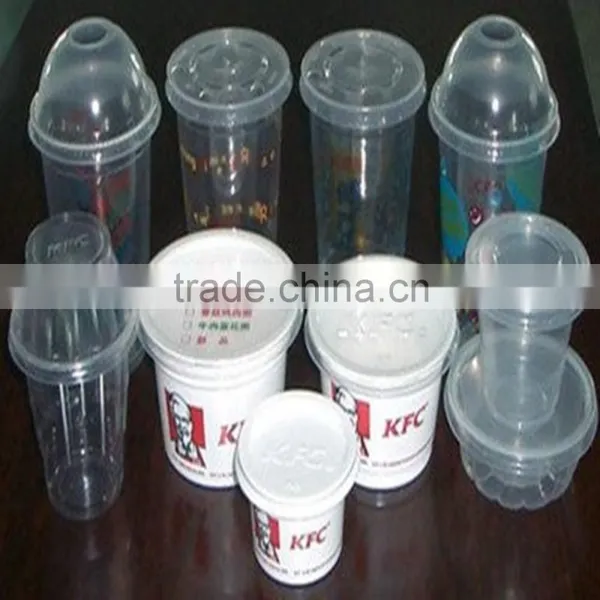

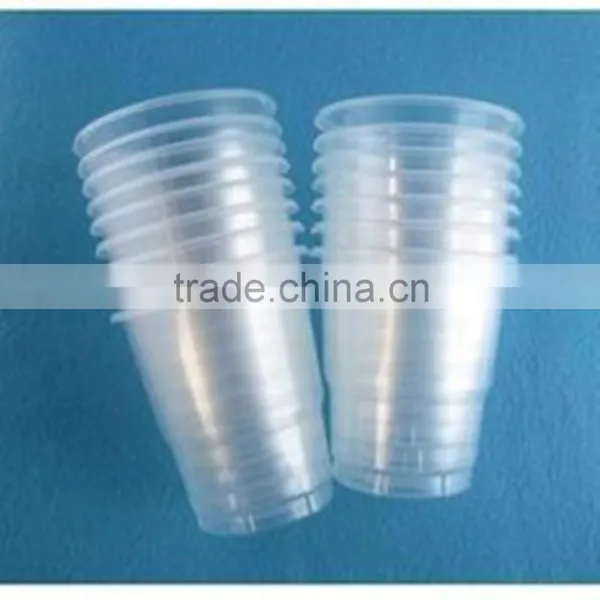

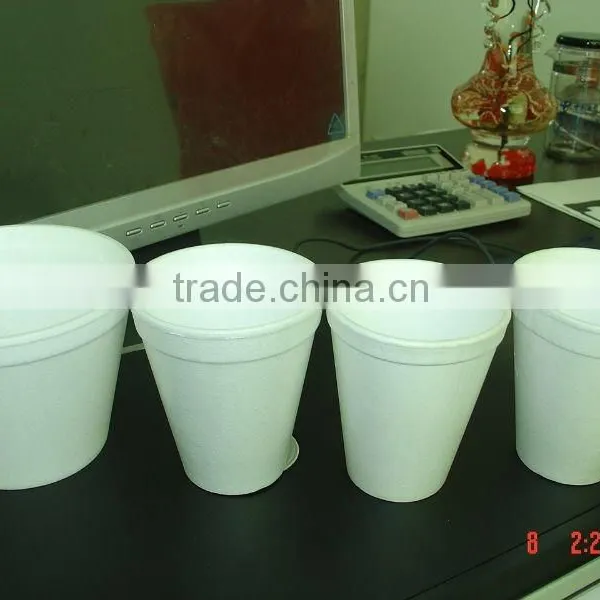

This machine can produce plastic packs like disposable cups , bowls, icecream cups, cold drinking cups,yogurt cups, fast food box, spoons, dishes, bowls for convenience noodles, etc.
Advantages
The disposable plastic products forming technology is through conveying sheet heating, stretching, forming and cutting , compeleting in one time,
Technical parameters
Standard width of plate(mm) | 320-650 |
Forming area (mm) | 650*320 |
Forming depth (mm) | 120 |
Sheet thickness (mm) | 0.2-1.3 |
Sheet width (mm) | 670-800MM |
Suitable sheet materail | PP PS HIPS |
Roll sheet diameter (mm) | 600mm |
Forming speed (mould/min) | 25-35(adjustable) |
Adjustable travel |
|
Heating arrangement | Top+botton heating with IR ceramic heater |
Tempreture controler | Separate PID type |
Connected heating | Solid state relays |
Feeding power (kw | 1.5 |
Heating power (kw | 38 |
Oil pump motor (kw | 15 |
Actual power (kw | 55 |
Compressed air | About 0.6-0.8Mpa/1.6m/3min |
Water supply | 0.5m/3h |
Overall demension (L*W*H mm) | 3250*1450*2670 |
Weight (t) | 3 |
Our service :
1.We offer best after-sales for customers.
2.Engineers available to solve any problem in need.
3.Factory helps order spare parts quickly and correctly.
4.Our engineers have more than 20 years of experience in the plastic machinery
field.If you have any questions,don’t hesitate to tell us through the
follow contact information ,and we can offer you more details about
the product.
QingDao Asun Machinery Co.Ltd is a high-tech Chinese company which specializing in producing plastics machinery. Our main machinery includes pipe/profile/sheet/WPC/film production line and plastic recycling line series.
Web:
whatsapp:18300290218
Address:Tongxin Road Nanguan Industrial Area QingDao China
Contact:Joanna
