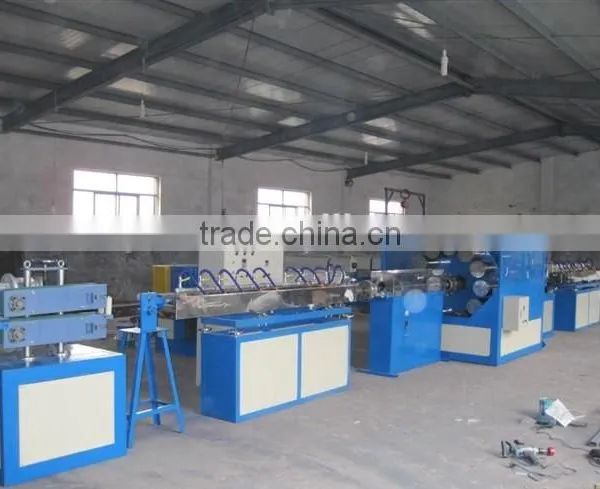

Qingdao advanced technology PVC fiber reinforced pipe production line/extrusion line/machinery
Specifications

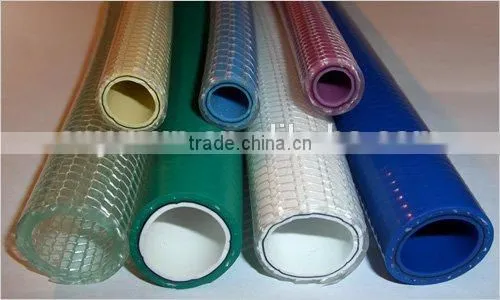

pvc fiber reinforced pipe production line
1.holds CE,SGS,ISO certification
2.more than ten years produce
pvc fiber reinforced pipe production line
PVC Pipe Production Line are mainly used to produce variety of PVC pipe for water supply, drainage, cable protection ,etc.

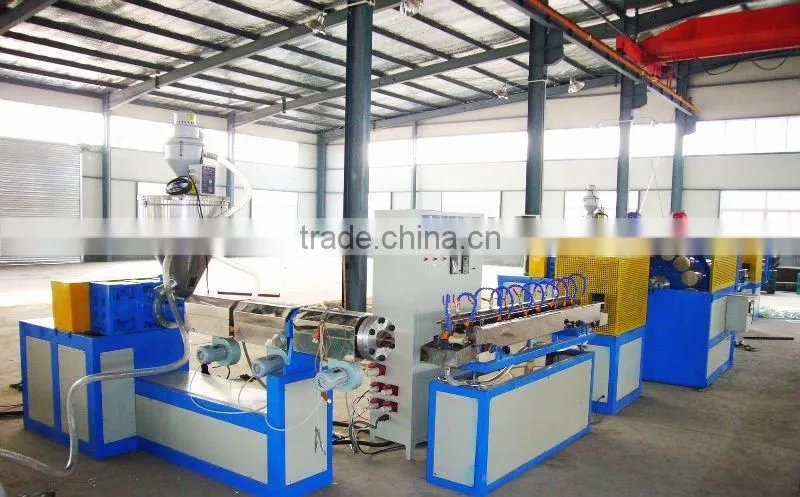

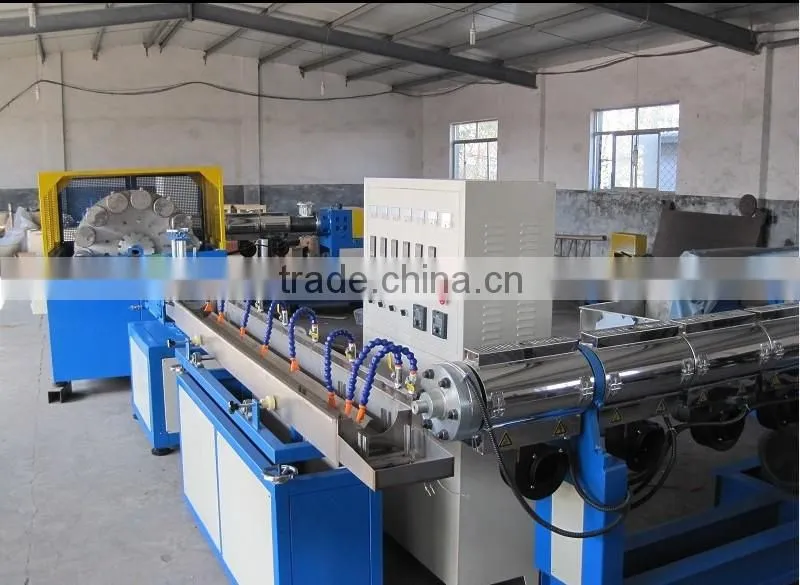

Mainframe:Equipped with conical twin screw extruder or parallel twin screw extruder, adopt optimized spider die with chrome-plating, ensure the melt plasticization homogenous and distribution uniform.It adopts pipe extrusion die, vacuum calibrating water tank, spray cooling water tank, hauling unit, cutting unit and stack unit.The features of the rigid pipe equipment:pedrall hauling, automatic cutting and material discharging. Features of the production line:automatic temperature controlling, stable performance, and easy operation. It shall be the first choice for PVC pipe production.
We can allocate the special installation for the manufacture of the inner wall spiral coil and core ply blister tube set according to the client 's requirements.
Main Technical Parameter :
Item |
PVC63 |
PVC160 |
PVC250 |
PVC315 |
PVC450 |
PVC630 |
Produced Pipe Specification(mm) |
φ16-φ63 |
φ75-φ160 |
φ125-φ250 |
φ180-φ315 |
φ200-φ450 |
φ355-φ630 |
Vacuum forming length(mm) |
6000 |
6000 |
6000 |
6000 |
6000 |
6000 |
Degree of vacuum(Mpa) |
-0.03~0.08 |
-0.03~0.08-0.03~0.08 -0.03~0.08 |
-0.03~0.08 |
-0.03~0.08 |
-0.03~0.08 |
-0.03~0.08 |
Max hauling force(N) |
10000 |
15000 |
20000 |
25000 |
30000 |
50000 |
Hauling speed(m/min/max) |
10 |
6 |
4 |
3 |
2 |
1.4 |
Effective hauling length(mm) |
1000 |
1500 |
1500 |
1500 |
1800 |
1600 |
Compressed air consumption(m3/h) |
0.4 |
0.6 |
1.0 |
1.2 |
1.5 |
2.0 |
Refilled water volume(m3/h) |
5 |
6 |
7 |
8 |
9 |
12 |
Line length(m) |
20 |
22 |
30 |
30 |
36 |
