CE Certificate PP Drinking Straw Extruder Machine/A Variety of Colors Drinking Straw Production Line
Applications:
This machine is mainly to produce drink straw,sprinkler pipe,cotton stick,candy stick,tooth pick,the refills of ball point pen and water color pen,toy pipe industrial casing pipe,droping tube and other small industrial irregular shape pipes etc.It uses the materials such as PE and PP etc
Introductions:

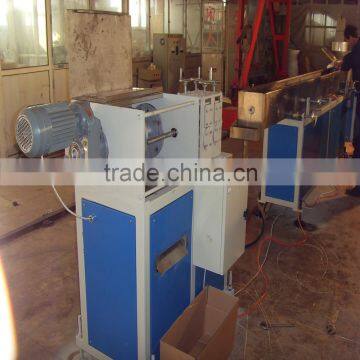

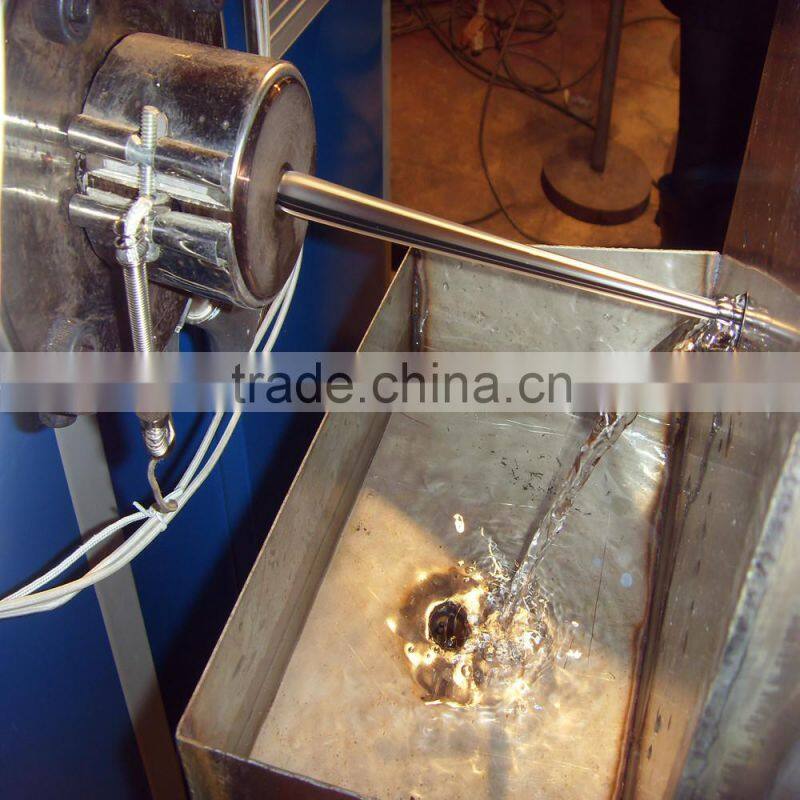

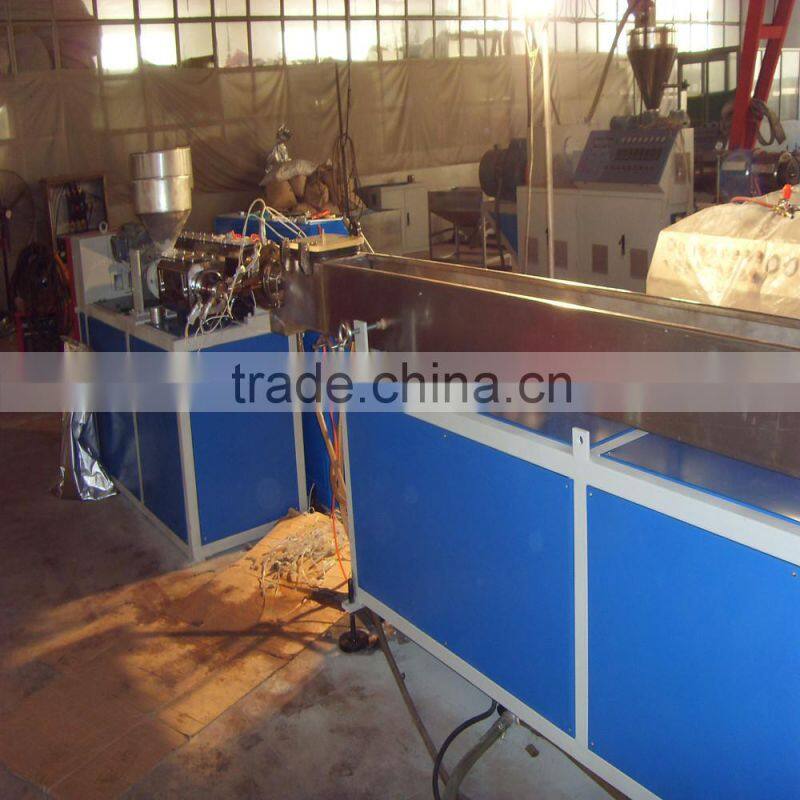

SJ-Drink straw machine is composed of frequency conversion extrusion machine, mould, vacuum diameter-fixed monochromatic, dichromatic, tricolor, four-color and etc. It makes different diameters and lengths straight straws.
Main technical Prameters
Model |
Screw diameter |
L/D |
Main motor power |
Automatic temperature zones |
Cooling tank |
Haul-off and cut power |
Straw diameter |
Single color |
50mm |
28:1 |
11kw |
5 |
3000mm |
0.75*2 |
1-9mm |
55mm |
15kw |
1-13mm |
|||||
Two colors |
50mm*1 25mm*1 |
28:1 |
11kw*1 0.75kw*1 |
6 |
3000mm |
0.75*2 |
1-9mm |
55mm*1 25mm*1 |
28:1 |
15kw*1 0.75kw*1 |
1-13mm |
||||
3 colors |
50mm*1 25mm*1 |
28:1 |
11kw*1 0.75kw*1 |
8 |
3000mm |
0.75*2 |
1-9mm |
55mm*1 25mm*1 |
15kw*1 0.75kw*1 |
1-13mm |
|||||
Raw Material |
PP PE |
||||||
Products diameter |
≥3mm |
||||||
Extruding capacity |
500pcs/min |
||||||
Machine size |
L6500mm*W1120mm*H1200mm |
||||||
Specifications(PP/PE):
We can produce different size of PP,PE Drinking Straw machine according to client requirement.more infos or video,please contact with me.
About PP,PE Drinking Straw Making Machine:

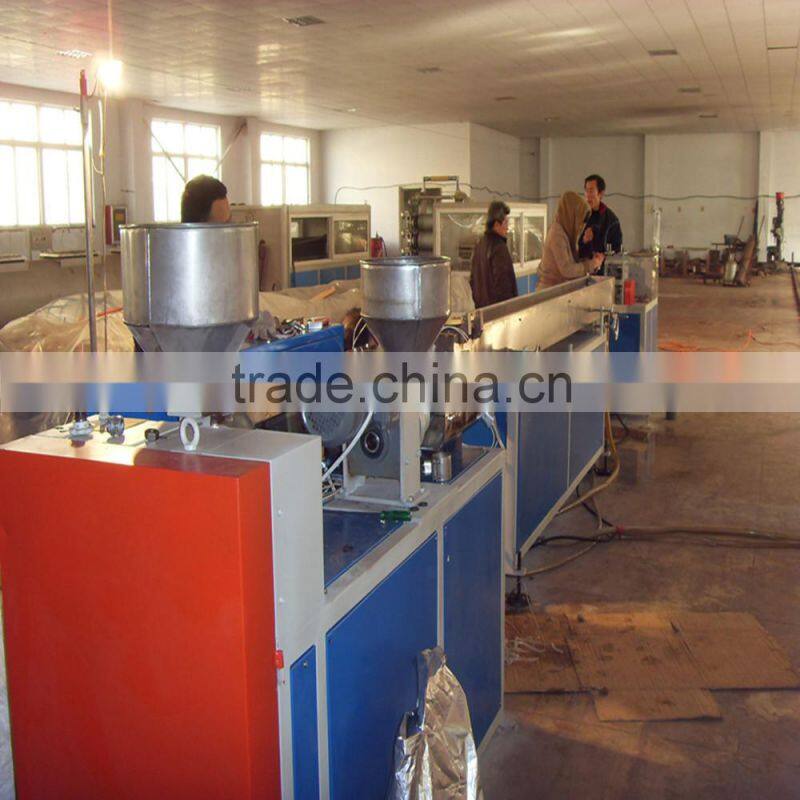

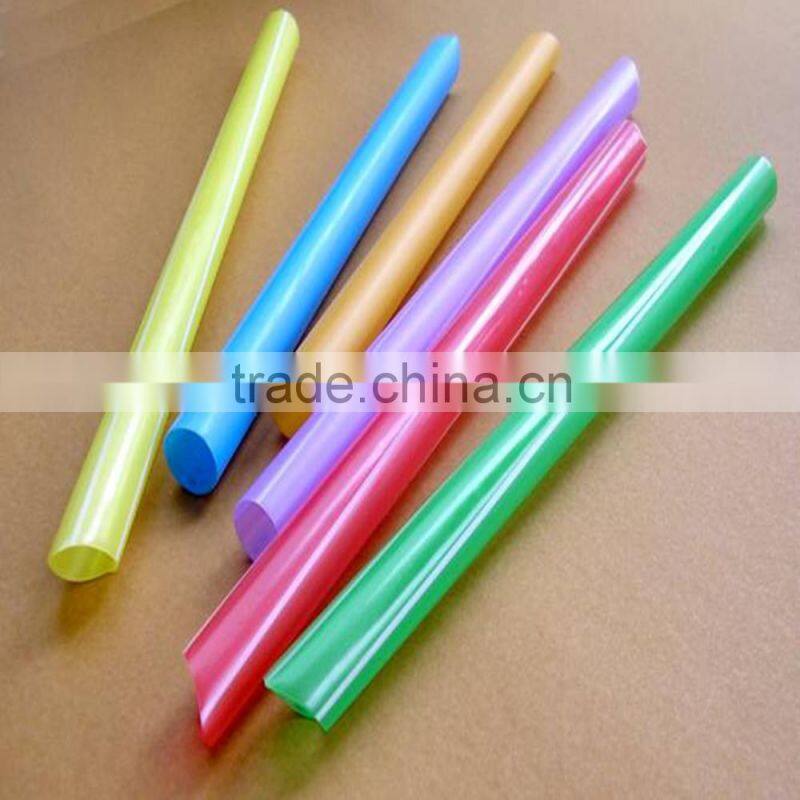

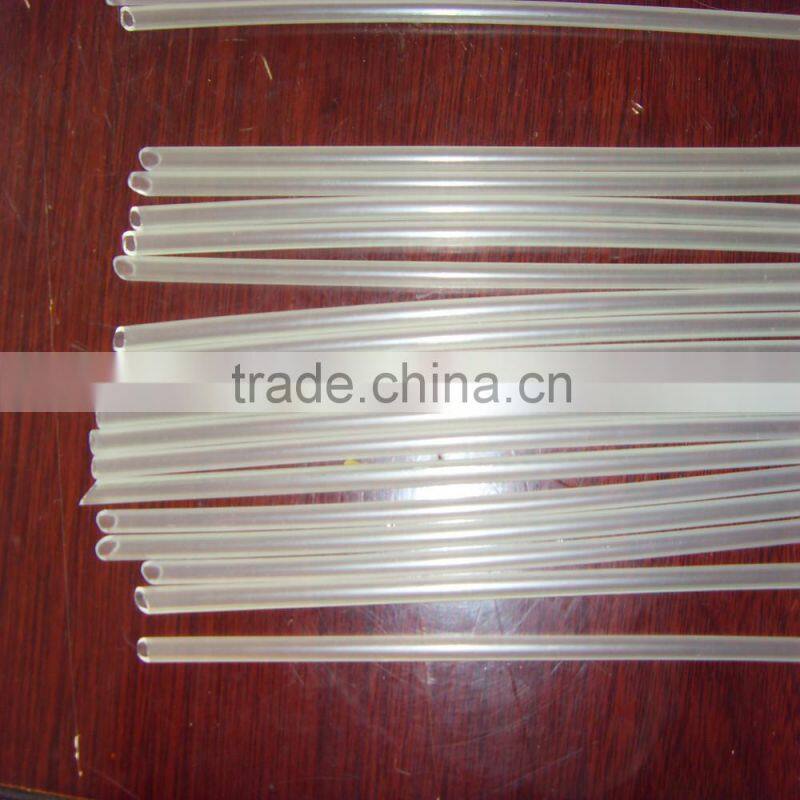

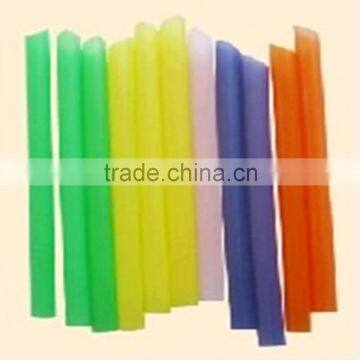

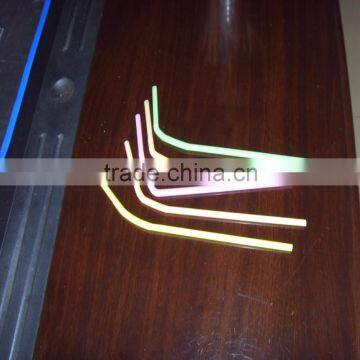

Drinking straw extrusion line is a set drinking straw production line,using polypropylene (PP)as raw materials, with the use of masterbatch, after melting, extrusion, shaping, cooling, pulling, cutting then produce colorless, color, two-color, three-color drink straw. With the mold, or other auxiliary equipment, which is also suitable for extruding a variety of tube similar to the drinking straw, and such of sheet in small size can be used with wide range of applications, for example:

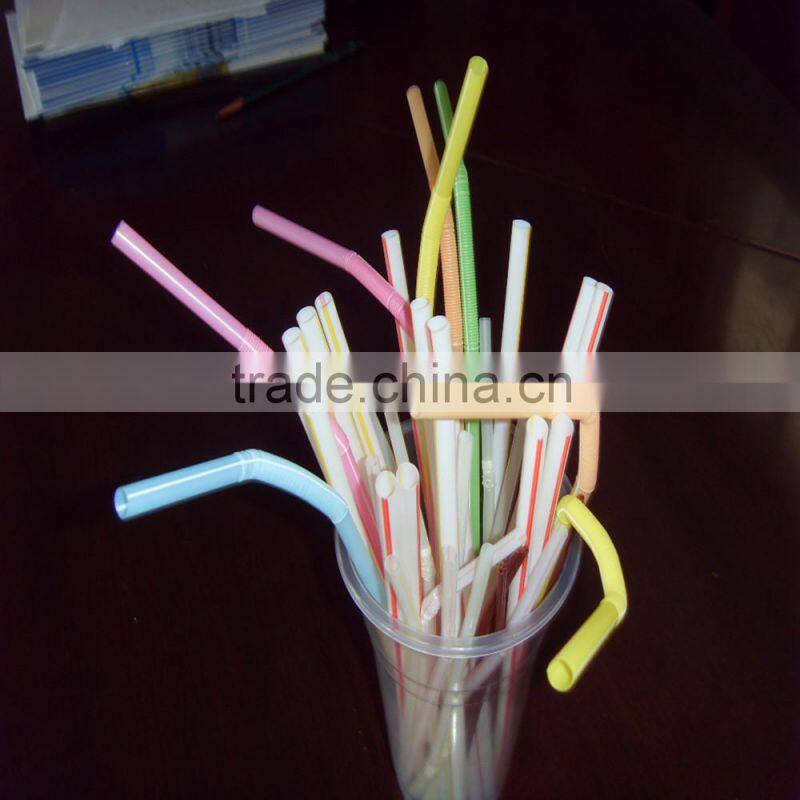

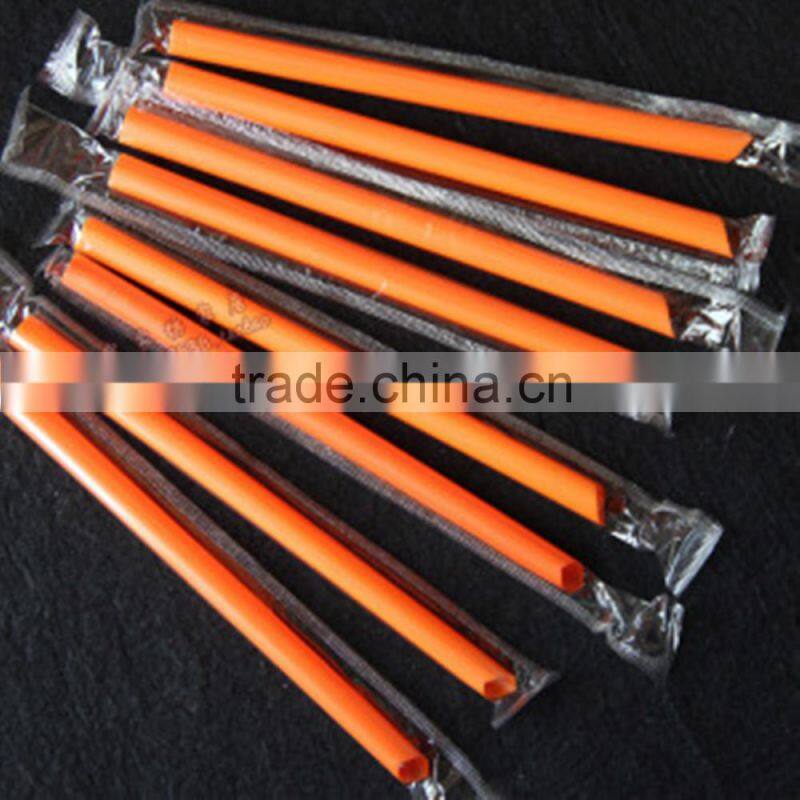

1.Food industry;PP PE pipe drinking straws,Lollipop sticks,Coffee strring stick etc.
2.The other industry: bullpens refill, Cotton swab sticks, brake pipe and some small diameter pipe

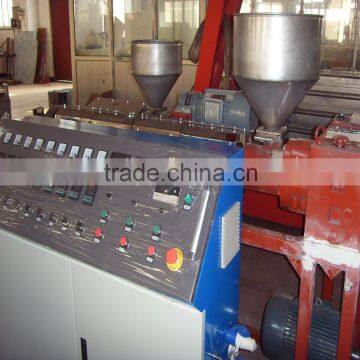

Extruder is leading machine of completely line(PP/PE):
a. high output & lower power costing
b. easier operation
c. stable quality
d. competitive price
Technical Parameters:
| Pipe Range | 16-50mm(double) | 75-160mm | 110-315mm | 315-630mm |
| Extruder type | SJZ51/105 | SJZ65/132 | SJZ80/156 | SJZ92/188 |
| Motor power | 18.5KW | 37KW | 55KW | 110KW |
| Capacity | 220kg/hour | 300kg/hour | 400kg/hour | 800kg/hour |
| Lineal speed | 12m/min | 5m/min | 3m/min | 1.2m/min |
| Production time | 45Days | 45Days | 45Days | 45Days |
| Guarantee period | 1Year | 1Year | 1Year | 1Year |
Our Products:
QingDao Asun Machinery Co.Ltd is a high-tech Chinese company which specializing in producing plastics machinery. Our main machinery includes pipe/profile/sheet/WPC/film production line and plastic recycling line series.
Web:
Tel:+86 18354257516
whatsapp:18563934738
Address:Tongxin Road Nanguan Industrial Area QingDao China
Contact:Joanna
