Pvc Electric Conduit Pipe Making Machine

Pvc Electric Conduit Pipe Making Machine thumbnail-1
Pvc Electric Conduit Pipe Making Machine thumbnail-2
Pvc Electric Conduit Pipe Making Machine thumbnail-3
Pvc Electric Conduit Pipe Making Machine thumbnail-4
Pvc Electric Conduit Pipe Making Machine thumbnail-5
Pvc Electric Conduit Pipe Making Machine thumbnail-6
Pvc Electric Conduit Pipe Making Machine photo-1
Pvc Electric Conduit Pipe Making Machine photo-2
Pvc Electric Conduit Pipe Making Machine photo-3

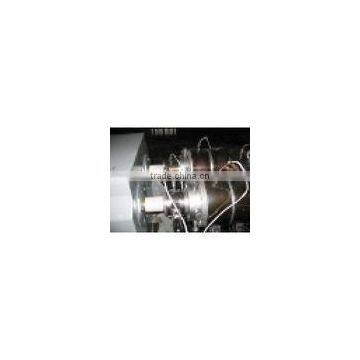

Pvc Electric Conduit Pipe Making Machine photo-4
Pvc Electric Conduit Pipe Making Machine photo-5
Pvc Electric Conduit Pipe Making Machine photo-6
US$ 30,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Pipe
Plastic Processed:
PVC
Contact Supplier Request Quote Chat Now
Qingdao Asun Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Pipe
Plastic Processed PVC
Screw Design Double-screw
Automatic Grade automatic
Place of Origin Shandong, China
Brand Name ASUN
Model Number AS
Voltage 380v
Power(W) 100KW
Dimension(L*W*H) 23*3*3
Weight 6T
Certification CE
After-sales Service Provided Engineers available to service machinery overseas



 PVC electric conduit pipe making machine



Specifications

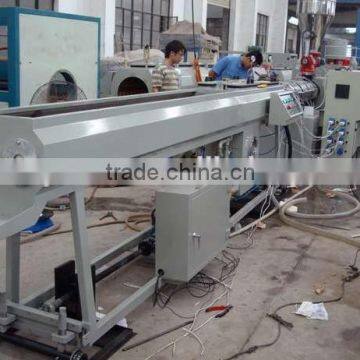

PVC conduit pipe production line
1.Rigid PVC pipe size:16-63mm
2.Output:120kg/h
3.PLC control system
4.SGS,CE&ISO9001:2008

PVC conduit pipe production line



Mainly used for the PVC conduit pipes extruding at the same time. The pipes diameter range:16mm, 20mm, 25mm, 32mm, 40mm,53mm ,63mm.The pipes used for the electrical wire transport and the dirty water discharge .

Composition:

Item

Name

Model

Quantity

1

Double-screw extruder

SJSZ51/105

1

2

Die head and mould

16mm-63mm

1 set

3

Double-vacuum tank

4000mm

1

4

Double-strand hauling machine

1.1kw x 2

1

5

Double-strand cutter

1.1kw x 2

1

6

Double-strand stacker

4000mm

1

7

Plastic powder charger

ZJF300

1

Application :



PVC electric conduit pipe making machine is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness. This PVC electric conduit pipe making machine mainly consists of twin conical (parallel) screws extruder, vacuum calibrating tank, haul-off unit, cutting unit, tilter, etc. single screw extruder and haul-off unit have applied imported A/C inverter, both vacuum pump and driving motor have applied excellent products. The haul off machine includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, etc. Saw cutting or planet cutting can be applied, it is additionally applied with length measuring meter and thickness increasing device, the property of machine group is reliable, the production efficiency is high. With special device, it can produce inner wall spiral pipe, inner wall hollow pipe etc.

 Advantages:

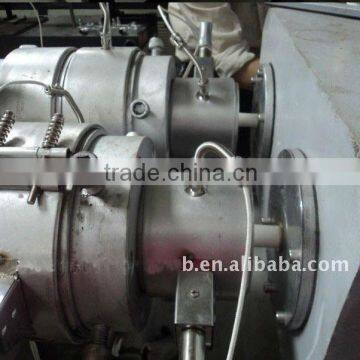

1. conical twin screw extruder: SJSZ-51/105.it equipped with the over-load protectionand  stoppage   alarming  system.The screw's core and the outside of the barrel is cooled by circulation of oil, it  includes vacuum venting and forced feeding.

2. extrusion moulds ,mould steel

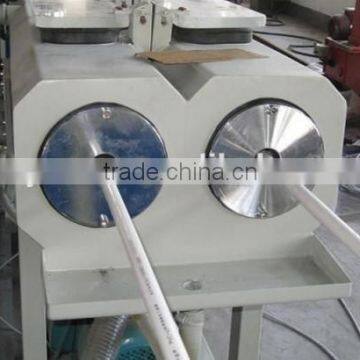

3. twin vacuum calibrating tanks,4m,consist of two stainless steel sizing boxes actually, which are Use

    automatic controller and motor to control the liquid level and movements respectively;

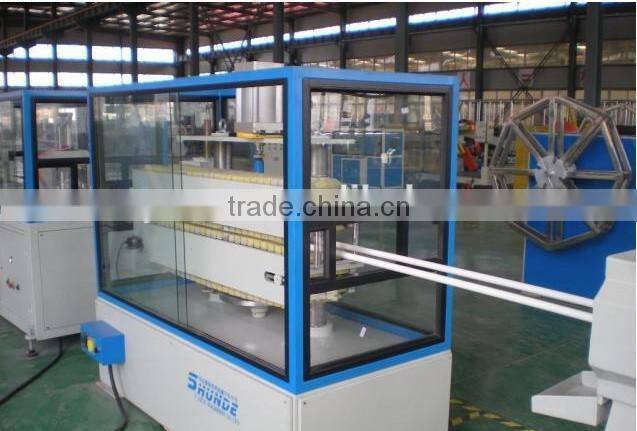

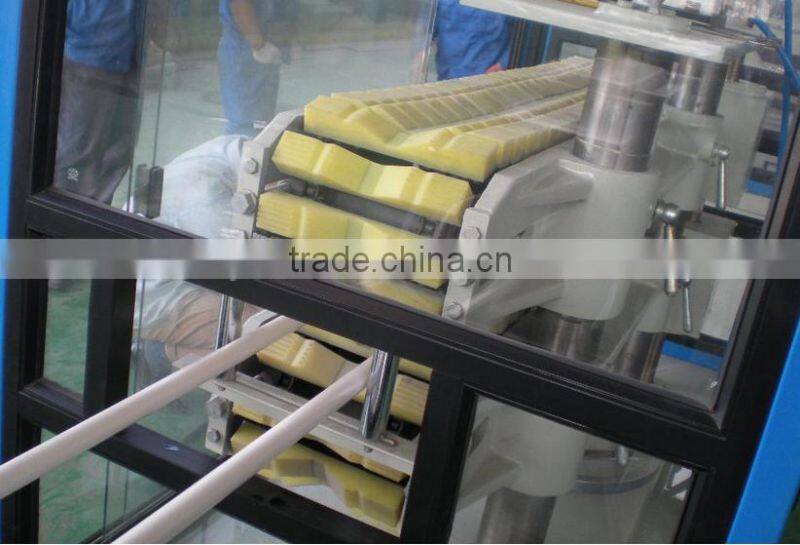

4. twin haul-off machines, 1,1kwx2 ,adopts frequency conversion  and the clamping is in a    pneumatic way;

5. twin cutting machines. 1.1kwx2,The cutter is of automatic metering and cutting;

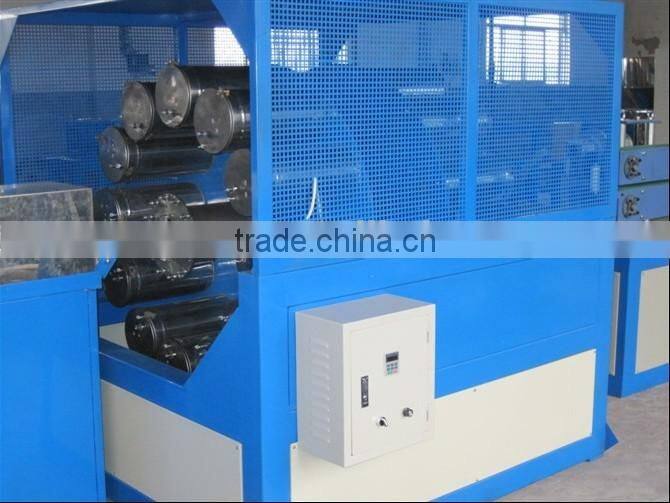

6. Stackers, 4-6m,it can turn automatically;

7. powder loader. ZJF300,it can automatically carry plastic powder into the hopper, it can save labor,realize the safety and reliability.



Eletrical Parts

1. Main motor frequency controller : FUJI or ABB

2. Temperature controller : OMRON or RKC

3. AC controller : Schneider or siemens

4. Thermal overload relay : Schneider

5. Switch : DELIXI or Schneider



pvc electric conduit pipe making machine pvc electric conduit pipe making machinepvc electric conduit pipe making machinepvc electric conduit pipe making machine

 pvc electric conduit pipe making machine



Responsible for the installation and debugging, equipment warranty for one year.
