Qingdao 20-60 mm PERT hot water pipe making machine

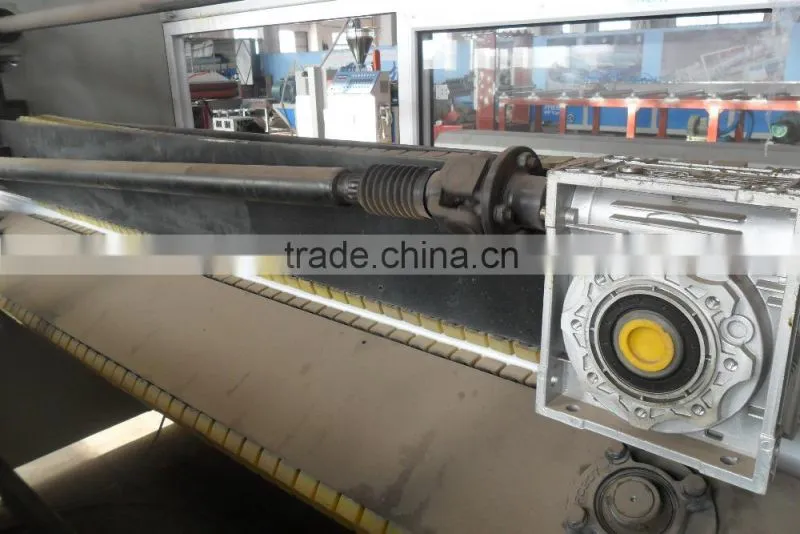

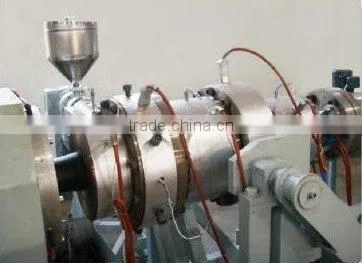

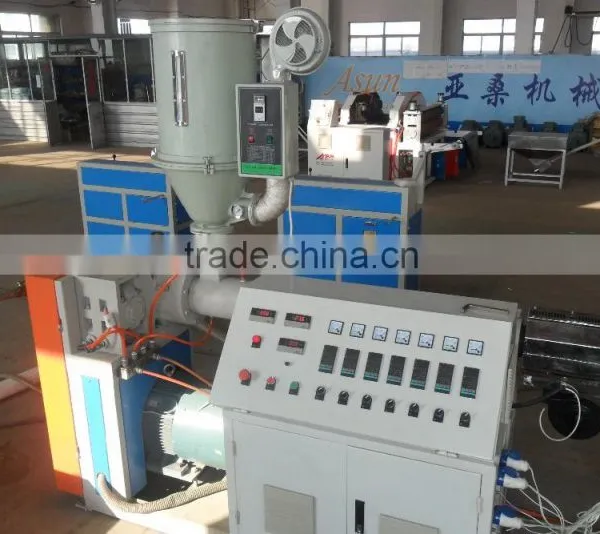

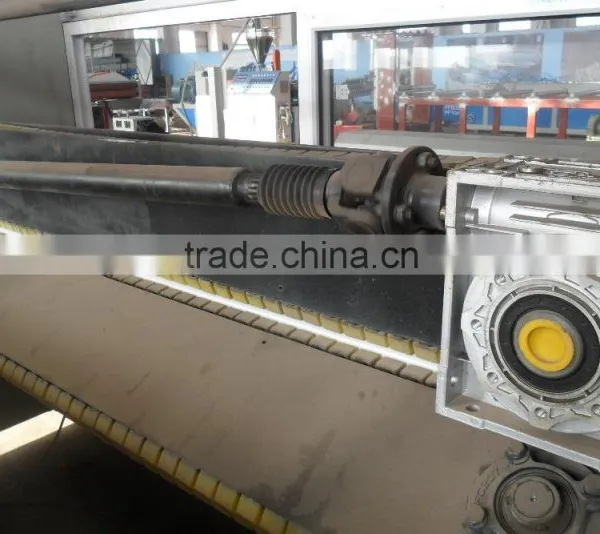

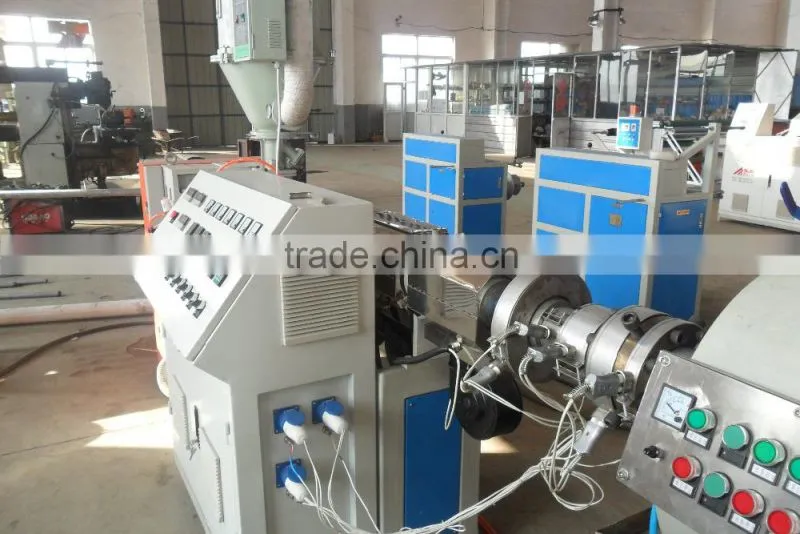

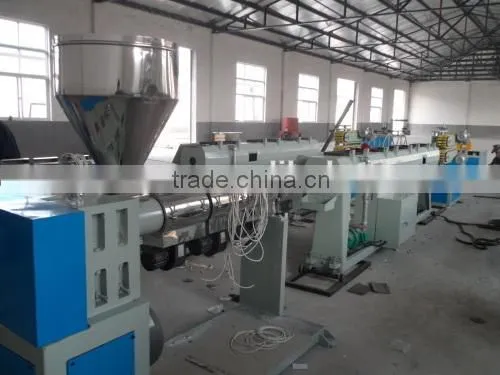

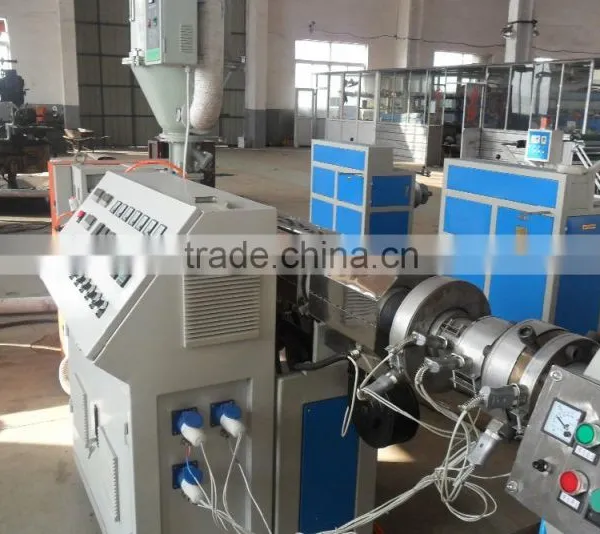

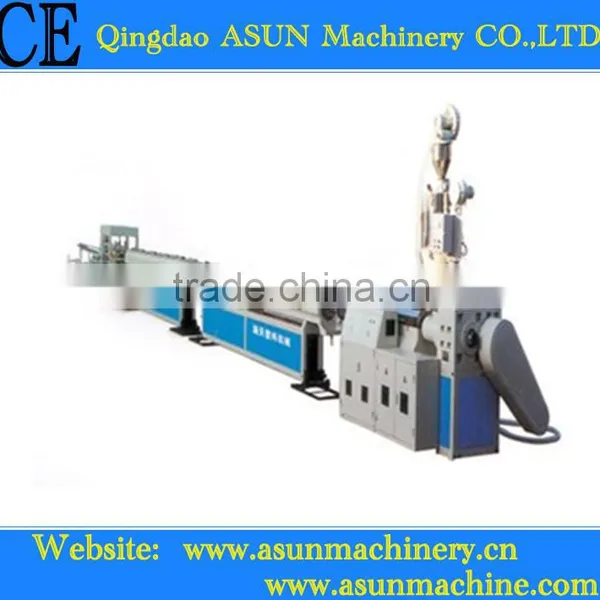

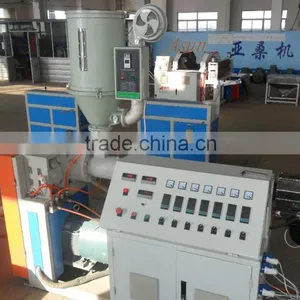

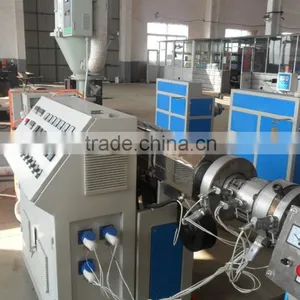

This production line is used to produce PERT pipes for cold and hot water supply in house. It's composed of vacuum feeding machine, hopper dryer, single screw extruder, mould, make line co-extruder, vacuum calibration and cooling tank, extended spraying cooling tank, haul off machine, printer, cutter and stack bracket.
Main advantages:
1. Barrier type screw, by which the material can get good plasticizing at low temperature but high extrusion output.
2. Barrel with feeding groove, material is 38CrMoAl and nitrogen treated, surface hardness is HRC 65-68, which can has a long use life.

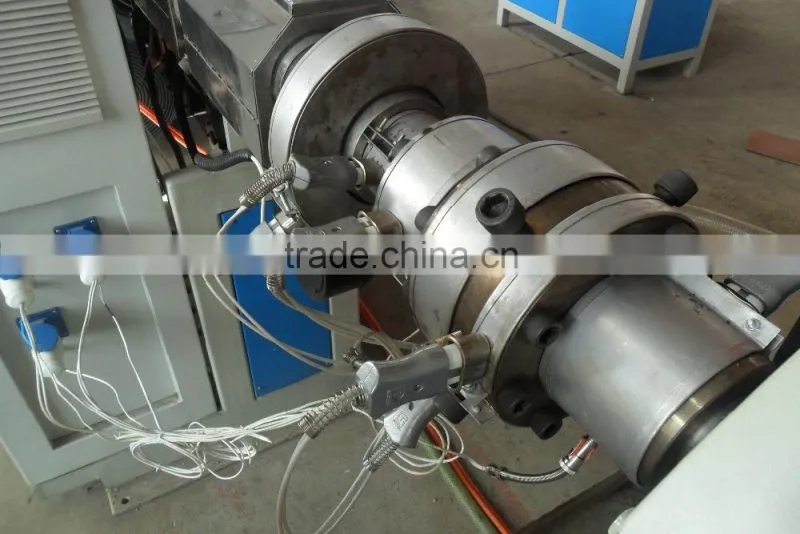

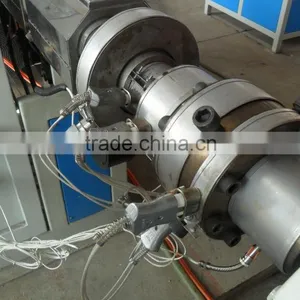

3. Millipore type mould with suitable inner compression ratio which can guarantee to produce high quality PERT pipes.
4. High automatic level. The production line is controlled by PLC(touch screen). All parts, like extruder, haul off unit, cutter etc can be controlled by touch screen synchronously.
This line can also be used to produce PPR, PE pipes
Main technical data:
Model Applicable diameter
PERT-63 20-63mm
PERT-110 75-110mm
PERT-160 7 75-160MM
Technical paremeters
Model |
Diameter of pipe (mm) |
Output (kg/h) |
Exrtusion speed (m/min) |
AS-55*33 |
16-63 |
120 |
1.0-12 |
AS-65*33 |
20-110 |
180 |
1.0-18 |
AS-75*33 |
75-200 |
270 |
1.0-5 |
AS-90*33 |
160-315 |
500 |
0.5-4 |
AS-120*33 |
250-500 |
800 |
0.1-1.2 |
AS-150*33 |
500-1200 |
1000 |
0.1-1.0 |
