PPR Plastic Water Pipe Making Machine/ Production Line
US$ 20,000 - 40,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Pipe
Plastic Processed:
Other, PPR
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Manufacturer PPR Pipe Production LineUS$ 15,000 - 50,000MOQ: 1 Set -
16-630mm PVC Water PIpe Making Machine/Water Etruder Machinery/Pipe Production LineUS$ 50,000 - 90,000MOQ: 1 Set
-
100-250mm HDPE Water Pipe Extruder Machinery /Pipe Making Machine/Production LineUS$ 30,000 - 40,000MOQ: 1 Set
-
Certificate CE PPR Plastic Pipe Extrusion Line/Water Pipe Extruder MachineUS$ 30,000 - 45,000MOQ: 1 Set
-
15-120mm Qingdao Pvc Rigid Pipe Production LineUS$ 20,000 - 60,000MOQ: 1 Set
Condition
New
Application
Pipe
Plastic Processed
Other, PPR
Screw Design
Single-screw
Automatic Grade
Automatic
Place of Origin
Shandong, China
Brand Name
ASUN
Model Number
AS-SJ65
Voltage
380V
Power(W)
60~120W
Dimension(L*W*H)
20~30m
Weight
6~8t
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
PPR Plastic Water Pipe Making Machine
Introduction
The screw of the extruder equipped with barrier unit and mixing structure, and the barrel owns new style grooves. All of these offer good plastification and mixing effect. Special design of basket die head of for HDPE(PP,ABS) large diameter pipe with thick wall offer lower melting temperature, good mixing, lower pressure of cavity ,and stable production.
Special design for sizing and cooling system by using film and water ring to cool HDPE(PP,ABS)material, which can fit for the requirement of HDPE(PP,ABS).And the design can ensure the stability of diameter and roundness when producing the pipe with thick wall.

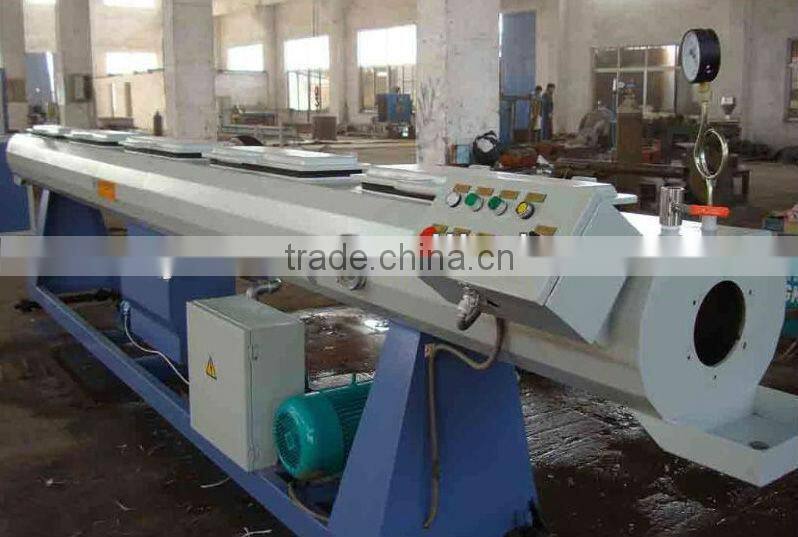

Special design vacuum sizing tank can ensure the stability of size and roundness, Speed controllers are used in extruder, haul-off to offer stability and precision.

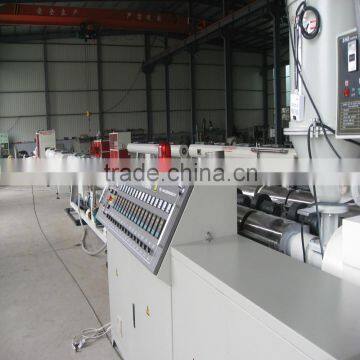

The whole line adopts PLC control system and large liquid crystal screen, which makes the operation very convenient. The line can be equipped with another extruder used for extruding the mark line.
Detailed Product Description

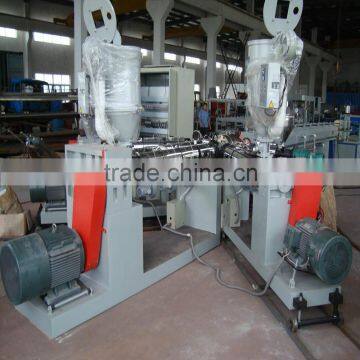

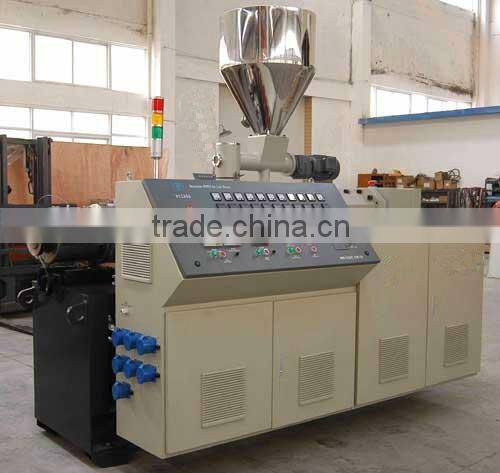

1.single screw extruder, very suitable to process PE resin with high capacity, max capacity 1000kg/h
2.The production line adopts reasonable design, absorbing safe producing technology, acquiring CE certificate.
3.Diameter range is 16mm-800mm, which can be changed into inch standard to meet clients special requirement.
Technical data
Pipe range |
16-63mm |
20-110mm |
75-160mm |
90-250mm |
110-315mm |
160-450mm |
315-630mm |
500-800mm |
Extruder |
¢45mm |
¢60mm |
¢75mm |
¢75mm |
¢90mm |
¢90mm |
¢120mm |
¢150mm |
Extruder power |
AC30kw |
DC75kw |
DC110kw |
DC110kw |
DC160kw |
DC160kw |
DC280kw |
DC335kw |
Extrusion capacity |
60-100kg |
100-150kg |
250-300kg |
250-300kg |
350-400kg |
350-400kg |
650-700kg |
850-900kg |
Max. Production speed |
10m/min |
6m/min |
6 m/min |
6 m/min |
3 m/min |
1.2m/min |
0.9m/min |
0.7m/min
|

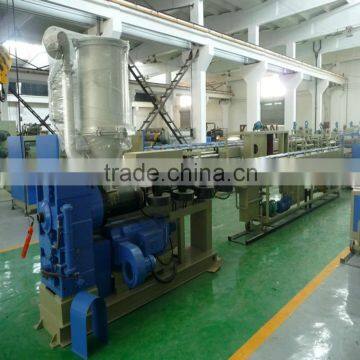

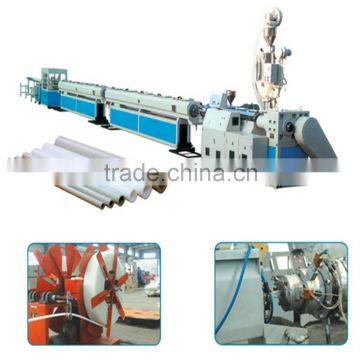

PPR pipe extrusion line process as following :
1. Dryer & Vacuum feeder
2. High speed single screw extruder
3. Extrusion mould and calibrators
4. Vacuum bath / vacuum tank
5. Draw machine / Haul-off Unit
6 Cutting machine / Cutter
7. Stacker
Our support and after-sale service
1.We supply plastic extruder technical support,such as engineers,drawings,and instruction manual.
2.We send one or more than one engineers to your company for installing and adjust the machine.
3.Buyer also can sent workers to our workshop for learning how to conduct Plastic extruder.
