Specifications
With a longtime experience of making plastic machines.With powerful technique support.
Introduction:

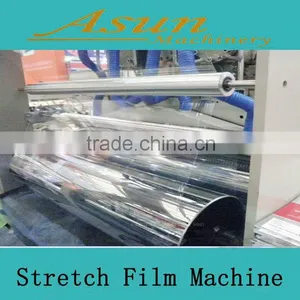

This machine set is used for producing LDPE or LLDPE stretch film, if the machine adopts double screws, the two hoppers should use different type of material, one side of the extruded stretch film is adhesive and the other side is normal. It is widely used for packing architecture and hardware parts etc.
1. Screw and cylinder are all made of 38CRMOALA alloy and treats by nitrogen. It has an advantage of corrosion resistance and endurance etc.
2. The cooling device adopts cycle water cooling; provide the best transparent effect of the stretch film.
3. Take-up equipment adopts with friction type rewinding, and equipment with edge correcting device to ensure the quality.
Main Technical Parameters
Main Technical Parameters | |
Diameter of screw |
φ50mmx2 |
L/D |
30:1(L/D) |
Width of products |
200-550mm |
Thickness |
0.015-0.03mm |
Output |
40kg/h |
Main motor power |
7.5kwx2 |
Heating power |
30kw |
Machine weight |
3.5T |
Overall dimensions |
5600x2600x1800mm |
Power supply |
380/3/4/50(Volt/Ph/Line/ |
Machine model |
FM-800 |
FM-1100 |
FM-1400 |
FM-1600 |
Extruder model |
SJ45/30 |
SJ55 |
SJ55/SJ65 |
SJ65 |
Revovling Die head |
Φ200 |
Φ250 |
Φ300 |
Φ350 |
Wind circle |
F-800 |
F-1000 |
F-1000 |
F-1000 |
Winder |
MZFJ-800 |
MZFJ-1100 |
MZFJ-1400 |
MZFJ-1600 |
Haul off roller specification |
Φ160x800 |
Φ160x1000 |
Φ160x1400 |
Φ160x1600 |
Haul-off&winding Line speed |
3-30m/min |
3-30m/min |
3-30m/min |
3-30m/min |
