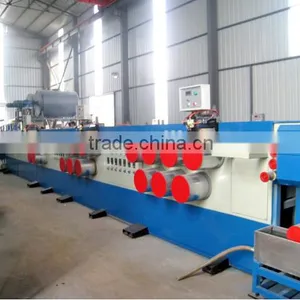

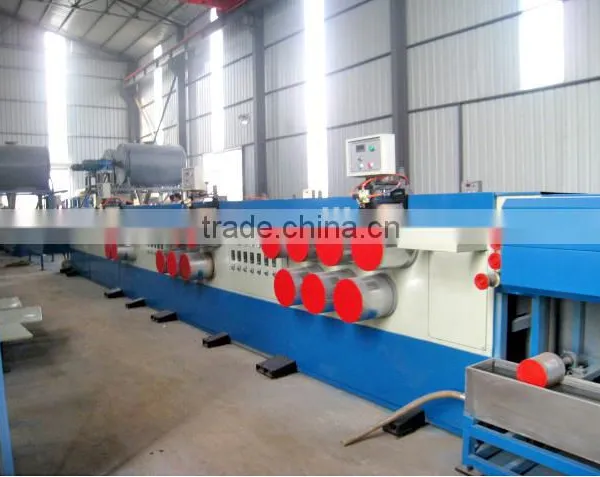

Plastic Extruder Machine For PET Broom Making Machine /PET Broom Machinery

No.

Part Name

Qty.

Introduction of Main Parts

1

Extruder

1set

1. Raw material: PET virgin or bottle flakes

2. Frequency conversion control speed.

3. Hard tooth surface gear motor: Jiangsu changzhou.

4. Screw and cylinder: Made in Zhejiang Zhoushan.

5. Material of screw heating: Al Casting.

2

Spinning die

1pc

1. Heating method of die head: oil heating.

2. Material of spinneret: SUS316.

3. Frequency conversion control speed, cycloidal pinwheel reducer.

3

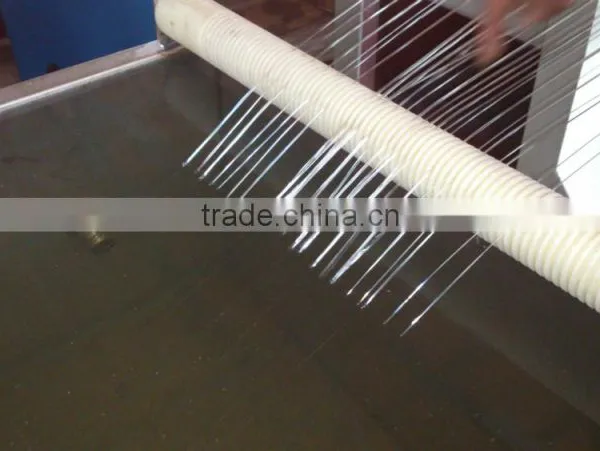

Cooling water tank

1set

1. Yarn separate pole is movable.

2. Material of box: stainless steel.

4

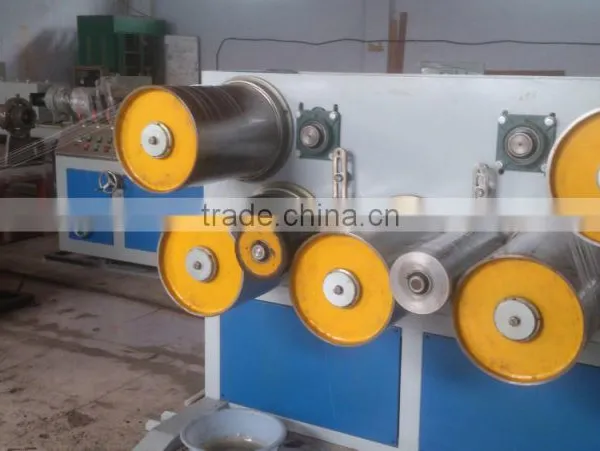

Seven roller Stretching A

1set

1. Frequency conversion control speed.

Frequency conversion motor.

2. Steel structure of box, gear transmission, running balance.

3. In front, one rubber roller and stainless steel separate pole.

5

Hot water tank

1set

1. Material is stainless steel with heat preservation, and cover is opened by gas

2. Heating method :electrical heating

3.Equip water recycling pump

6

Seven roller Stretching B

1set

1. Frequency conversion control speed

Frequency conversion motor

2. Steel structure of box, gear transmission, running balance.

3. In front, one rubber roller and stainless steel separate pole

7

Hot blast stretching recycled oven

1set

1. Single layer recycled hot blast oven

2. Equip wind power control

3. Hot blast path especial design make them equality

4. Frequency control of motor speed

8

Seven roller Stretching C

1set

1. Frequency conversion control speed

Frequency conversion motor

2. Steel structure of box, gear transmission, running balance.

3. In front and back, each with one rubber roller and stainless steel separate pole.

9

Oiling unit

1set

1. Frequency conversion control speed

Frequency conversion motor

10

Yarn guider system

1set

11

Winder

2sets

Frame style winder

12

Cabinet

1set

Shown in another list
