filament extruder/plastic filament extruder
/filament production line
Application:

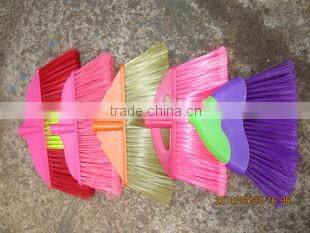

The filament making machine can make the filament for broom,wig,brush and rope application
Features:
1)The products Using the recycling bottle slices as raw materials by making them melt directly,
which reduces the course of raw material-making
2) The products With the multi-purpose machine, it can produce PET straps in different specifications directly and doesn"t need to change the mould head
3) The products has the same transparency as made from new polyester slices, but
the tensile strength and shock resistance are stronger
4)The products is low energy consumption, high production capability
5)The products is easy to operate, saves manpower
No. |
Part Name |
Qty. |
Introduction of Main Parts |
1 |

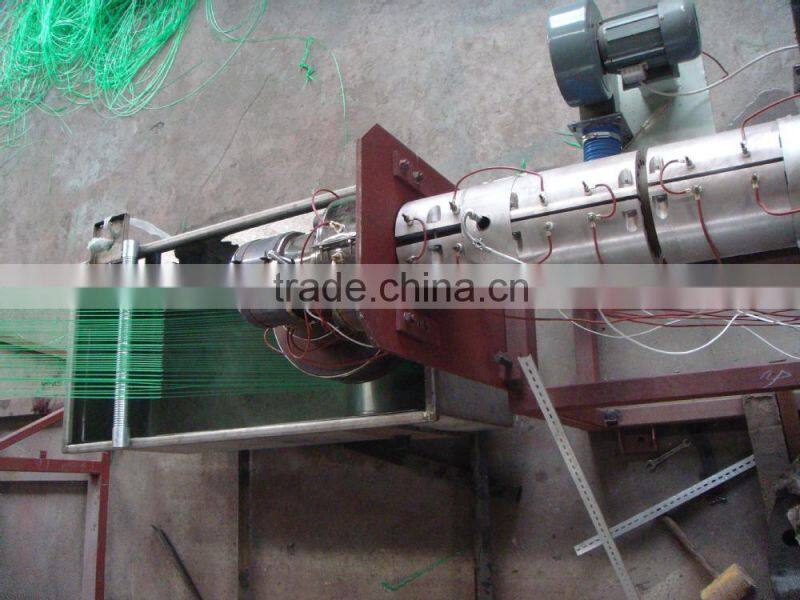

Extruder |
1set |
1. Raw material: PET virgin or bottle flakes 2. Frequency conversion control speed. 3. Hard tooth surface gear motor: Jiangsu changzhou. 4. Screw and cylinder: Made in Zhejiang Zhoushan. 5. Material of screw heating: Al Casting. |
2 |

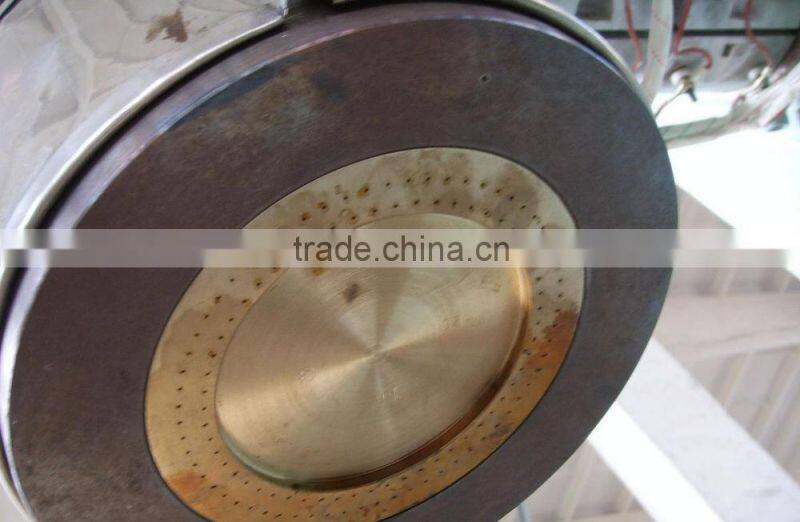

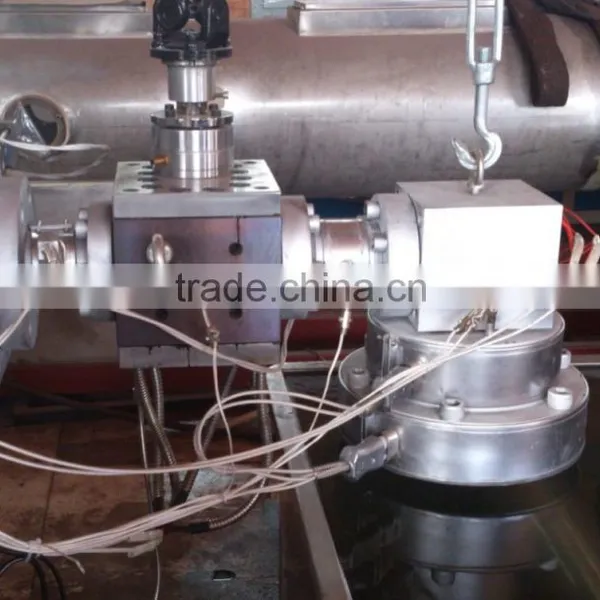

Spinning die |
1pc |
1. Heating method of die head: oil heating. 2. Material of spinneret: SUS316. 3. Frequency conversion control speed, cycloidal pinwheel reducer.
|
3 |
Cooling water tank |
1set |
1. Yarn separate pole is movable. 2. Material of box: stainless steel. |
4 |

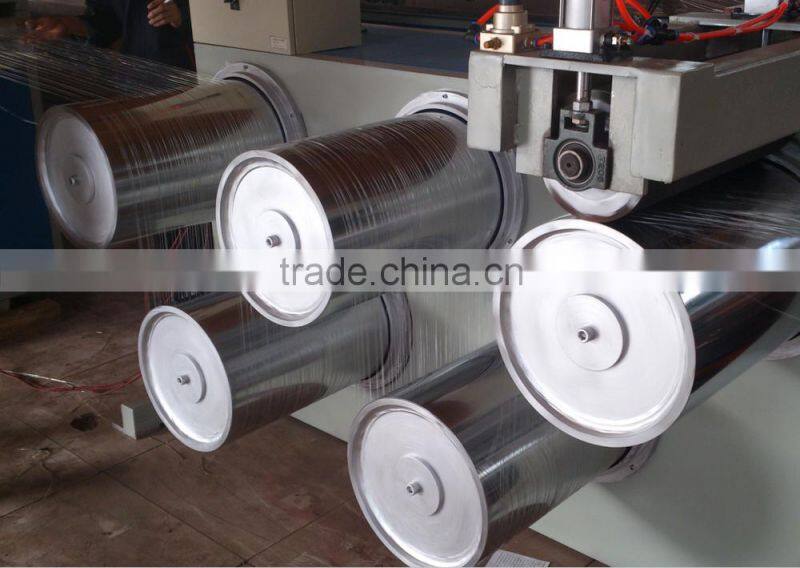

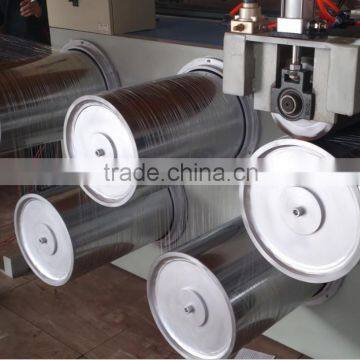

Seven roller Stretching A |
1set |
1. Frequency conversion control speed. Frequency conversion motor. 2. Steel structure of box, gear transmission, running balance. 3. In front, one rubber roller and stainless steel separate pole.
|
5 |
Hot water tank |
1set |
1. Material is stainless steel with heat preservation, and cover is opened by gas 2. Heating method :electrical heating 3.Equip water recycling pump |
6 |
Seven roller Stretching B |
1set |
1. Frequency conversion control speed Frequency conversion motor 2. Steel structure of box, gear transmission, running balance. 3. In front, one rubber roller and stainless steel separate pole
|
7 |
Hot blast stretching recycled oven |
1set |
1. Single layer recycled hot blast oven 2. Equip wind power control 3. Hot blast path especial design make them equality 4. Frequency control of motor speed |
8 |
Seven roller Stretching C |
1set |
1. Frequency conversion control speed Frequency conversion motor 2. Steel structure of box, gear transmission, running balance. 3. In front and back, each with one rubber roller and stainless steel separate pole.
|
9 |
Oiling unit |
1set |
1. Frequency conversion control speed Frequency conversion motor |
10 |
Yarn guider system |
1set |
|
11 |
Winder |
2sets |
Frame style winder |
12 |
Cabinet |
1set |
Shown in another list |
Application:

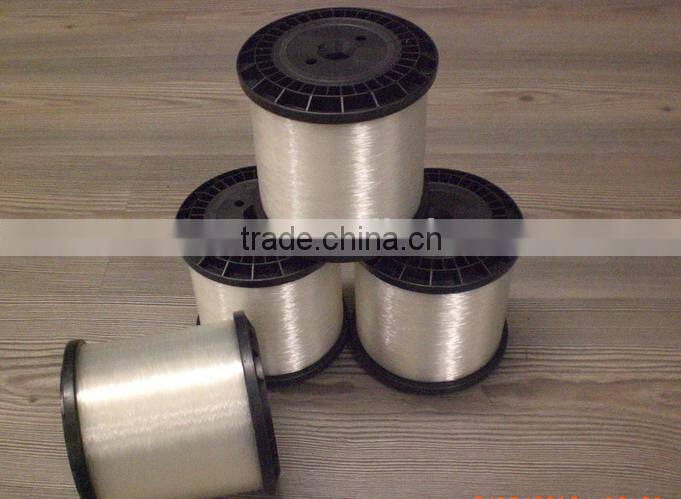

The round yarn made from the machine are applicable for the manufacturing of ropes, cables, finish nets, construction safety nets, broom ,sun shielding nets, artificial hair, mosquito nets, brushes, as well as protective nets for the cotton fields. The series of the machine have different spinnerets as 20-120.
Our service :
1.We offer best after-sales for customers.
2.Engineers available to solve any problem in need.
3.Factory helps order spare parts quickly and correctly.
4.Our engineers have more than 20 years of experience in the plastic machinery
field.If you have any questions,don’t hesitate to tell us through the follow contact information ,and we can offer you more details about the product.
Welcome to visit our factory for further discussion!
