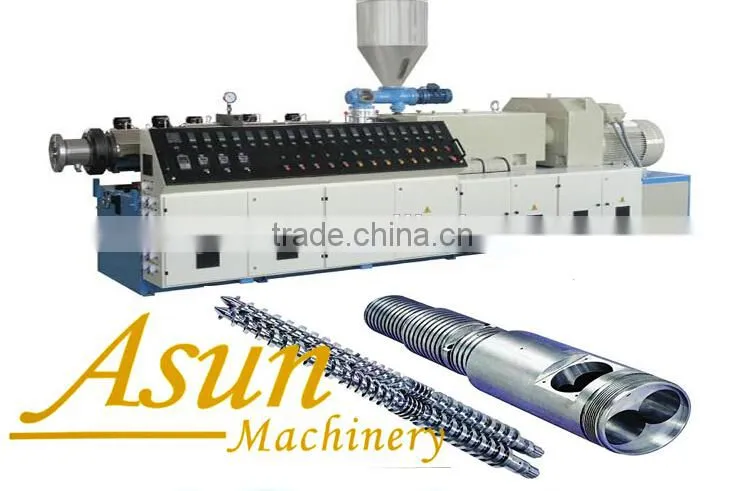

PVC Conical Twin Screw Extruder machine
Introduction
SJSZ series conical twin screw plastic extruder is a highly efficient agglomerating and extruding equipment.Machiners of this series feature low shearing rate,uneasy decomposition of material stock,even plastication and agglomeration,reliable quality,wide application range and long service life.Using HPVC powder as raw material for a direct forming,the extruders perform an excellent effectiveness. These machines have auto matic temperature control,vacuum gas exhaustion,oil-cooled screws,stepless speed regulation.as well as a forced feeding and self-cleaning mechanism.
The main technique parameter
Item Model |
SJSZ-51×22 |
SJSZ-65×22 |
SJSZ-80×22 |
Diameter of Screw (mm) |
51/105 |
65/132 |
80/165 |
Using Length of Screw (mm) |
1122 |
1430 |
1760 |
Rotating Speed of Screw(rpm) |
3.8-38 |
3.8-38 |
3.8-38 |
Torque( N.M) |
4500 |
4800 |
5500 |
Rotary Direction |
Converse Outside |
ConverseOutside |
Converse Outside |
Max.Pressure of die(Mpa) |
30000 |
35000 |
40000 |
Power of Main Motor(KW) |
18.5 |
37 |
55 |
Central Height(mm) |
1000 |
1000 |
1000 |
Heating Zones |
6 |
6 |
6 |
Heating Power(KW) |
18 |
20 |
26 |
Cooling Way |
Air-Cooling |
Air-Cooling |
Air-Cooling |
Output( kg/h) |
60-120 |
100-200 |
160-280 |
Material Sending |
Automatic |
Automatic |
Automatic |
Feeding Way |
Volume Metering |
Volume Metering |
Volume Metering |
Exhaust |
Vacuum Exhaust |
Vacuum Exhaust |
Vacuum Exhaust |
Weight(kg) |
2200 |
3500 |
5200 |
Sise(L×W×H)mm |
4000×1200×2400 |
4500×300×500 |
5000×1400×2600 |
ASUN Machinery
contact Ms Alice
skype: asunalice
mobile:86+18300290219
