Marine Type A Jaw Swivel Shackle

Marine Type A Jaw Swivel Shackle thumbnail-1
Marine Type A Jaw Swivel Shackle thumbnail-2
Marine Type A Jaw Swivel Shackle thumbnail-3
Marine Type A Jaw Swivel Shackle thumbnail-4
Marine Type A Jaw Swivel Shackle photo-1
Marine Type A Jaw Swivel Shackle photo-2
Marine Type A Jaw Swivel Shackle photo-3
Marine Type A Jaw Swivel Shackle photo-4
US$ 5 - 100 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Type:
Other, Swivel
Material:
Other, Alloy, Alloy Steel
Size:
22mm-162mm
Contact Supplier Request Quote Chat Now
Qingdao Powerful Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port Shanghai Port etc
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Swivel
Material Other, Alloy, Alloy Steel
Size 22mm-162mm
Model Number Anchor Swivel Shackle



Product Description


Powerful Machinery

Anchor Swivel Shackle

Type B
   Key Features Marine Type A Jaw Swivel Shackle

    •   WLL: 1/3T to 55T

   •   Surface: Black Painted, Hot Dip Galvanized, Self Colored, etc
   •   Certificate.:LR,BV,CCS,GL,RINA,NK,KR and DNV
   •   Grade: AM2, AM3, ORQ, R3, R3s, R4, R4s, R5



   Introduction

   •    The swivel shackle, fitted directly between the chain cable and the

        anchor, avoids the use of an anchor shackle and a Kenter link

        if the chain is fitted with an end link.



Data Sheet







Type B

Marine Type A Jaw Swivel ShackleMarine Type A Jaw Swivel Shackle

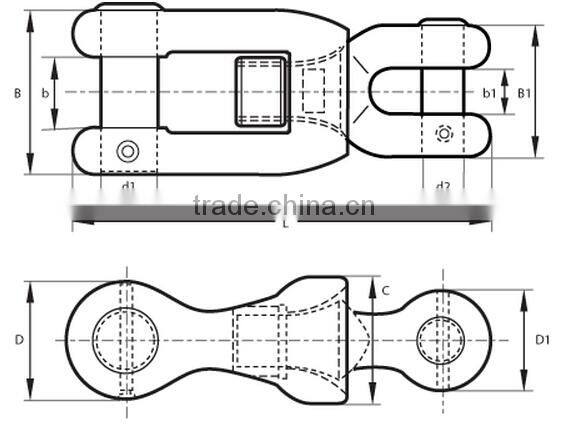

Anchor Swivel Shackle - Type B

Chain Diameter L I B b B1 b1 D D1 d1 d2 C Weight
mm mm mm mm mm mm mm mm mm mm mm mm kgs
22 204 189 110 48 88 31 77 66 37 29 84 7.6
24 321 206 120 53 96 34 84 75 41 31 91 9.9
26 347 224 130 57 104 36 91 78 44 34 99 12.5
28 374 241 140 62 112 39 98 84 48 37 106 15.7
30 401 258 150 66 120 42 105 90 51 39 114 19.4
32 427 275 160 70 128 45 112 96 54 42 122 23.4
34 454 292 170 75 136 48 119 102 58 44 129 28
36 481 310 180 79 144 50 126 108 61 47 137 33.4
38 508 327 190 84 152 53 133 114 65 49 144 39.4
40 534 344 200 88 160 56 140 120 68 52 152 46
42 561 361 210 92 168 59 147 126 71 55 160 53
44 588 378 220 97 176 62 154 132 75 57 167 61
46 615 396 230 101 184 64 161 138 78 60 175 70
48 641 413 240 106 192 67 168 144 82 62 182 79
50 668 430 250 110 200 70 175 150 85 65 190 89
52 695 447 260 114 208 73 182 156 88 68 198 101
54 721 464 270 119 216 76 189 162 92 70 205 113
56 748 482 280 123 224 78 196 168 95 73 213 126
58 775 499 290 128 232 81 203 174 99 75 220 140
60 802 516 300 132 240 84 210 180 102 78 228 155
62 828 533 310 136 248 87 217 186 105 81 236 171



Marine Type A Jaw Swivel Shackle







Powerful Machinery

Product Photos



Marine Type A Jaw Swivel Shackle















Powerful Machinery

Other Marine Hardwares



Marine Type A Jaw Swivel Shackle





Powerful Machinery

Testing Equipment



Marine Type A Jaw Swivel Shackle







Powerful Machinery

Usage



Marine Type A Jaw Swivel Shackle







Powerful Machinery

Certifications



 Marine Type A Jaw Swivel Shackle







Packaging & Shipping


Powerful Machinery

 Package and Transportation



 Marine Type A Jaw Swivel Shackle



Company Information


Powerful Machinery

Our Company





Marine Type A Jaw Swivel Shackle





     •   We started as an anchor chain factory, Yongxiang Anchor Chain Co., Ltd, about 20 years ago in Qingdao, China, and gradually

         developed into a big manufacturer of marine hardware supplies.

     •   At the same time, to meet the growing demands from our clients in new business areas, we created our trading brand - Powerful

         Machinery, and expand our scope to rigging hardwares and fasteners, and other related hardware by setting up solid partnership

         with other factories.

     •   Now we're proud to say that POWERFUL MACHINERY has ranked as top supplier on marine & rigging hardwares in northern China.













Powerful Machinery

Marketing



Marine Type A Jaw Swivel Shackle







     •   Our products, such as high grade chains, blocks & pulleys, steel  wire rope, stainless steel products, are popular in Europe, U.S,

          most Asia areas for its first class quality and competitive price.

     •   By offering one-stop solution service, our experienced customer service team can assist you from inquriy to  delivery.









FAQ


Powerful Machinery

FAQ
1. Are you a factory or trading company? We started as an anchor chain factory about 20 years ago and gradually developed into a big manufacturer in marine supplies. At the same time, to meet the growing demands from our clients in new business areas, we expanded our scope to rigging hardware and fasteners, and other related hardware by setting up solid partnership with other factories. Now we’re proud to say that POWERFUL has ranked as a top supplier on chains & rigging hardware in northern China.
2. Where is your factory located?

Our factory is located at #37, Wenhua Road, Jimo, Qingdao City, Shandong Province, China.
You’re welcomed to visit us any time for future cooperation.

3. What products do you supply?  As mentioned above, Qingdao Powerful Machinery is capable of supplying:
♦ all kinds of marine supplies
♦ chains
♦ rigging hardwares
♦ fasteners
♦ and related hardwares
4. Do you produce them all?

We produce all kinds of chains in our factory, other products in our partner factories. By establishing cooperation agreements & capital injection, we obtained a wide & solid supply chain to meet your demands.

5. How do you control quality? By setting up quality control points and inspecting at each production process with strict standards, the defective products will be eliminated before packaging and delivery. For partner factories, we use a comprehensive system of quality standards to evaluate the
production line. Also our professional QC team will implement the onsite check and finish product check before delivery.
6. Why are you more trustworthy than the other factories? Quick Response:

We feedback your questions immediately 24 hours a day, 7 days every week.
Competitive Price:
We can provide a more competitive price based on the same quality level by more efficient management in every process.
One-stop Solution:
Just say what you need, and we’ll figure out a one-stop solution for your business to save your time and effort.

7.  How do I pay? We accept 30% payment in advance & 70% before shipment for the first cooperation, either by T/T or L/C.
8. How do I receive the goods? With our professional transport agents, we are capable of delivery products to most ports all over the world. Door-to-door service is also supported.

FOB, C&F, CIF are most commonly used trade terms.
