ZINC PLATED U.S. TYPE DROP FORGED BOLT TYPE ANCHOR SHACKLE

ZINC PLATED U.S. TYPE DROP FORGED BOLT TYPE ANCHOR SHACKLE thumbnail-1
ZINC PLATED U.S. TYPE DROP FORGED BOLT TYPE ANCHOR SHACKLE thumbnail-2
ZINC PLATED U.S. TYPE DROP FORGED BOLT TYPE ANCHOR SHACKLE thumbnail-3
ZINC PLATED U.S. TYPE DROP FORGED BOLT TYPE ANCHOR SHACKLE thumbnail-4
ZINC PLATED U.S. TYPE DROP FORGED BOLT TYPE ANCHOR SHACKLE thumbnail-5
ZINC PLATED U.S. TYPE DROP FORGED BOLT TYPE ANCHOR SHACKLE thumbnail-6
ZINC PLATED U.S. TYPE DROP FORGED BOLT TYPE ANCHOR SHACKLE photo-1
ZINC PLATED U.S. TYPE DROP FORGED BOLT TYPE ANCHOR SHACKLE photo-2
ZINC PLATED U.S. TYPE DROP FORGED BOLT TYPE ANCHOR SHACKLE photo-3
ZINC PLATED U.S. TYPE DROP FORGED BOLT TYPE ANCHOR SHACKLE photo-4
ZINC PLATED U.S. TYPE DROP FORGED BOLT TYPE ANCHOR SHACKLE photo-5
ZINC PLATED U.S. TYPE DROP FORGED BOLT TYPE ANCHOR SHACKLE photo-6
US$ 1 - 100 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Material:
Other, Carbon steel, carbon steel or others
Type:
US Type
Shape:
Bow
Contact Supplier Request Quote Chat Now
Qingdao Powerful Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Carbon steel, carbon steel or others
Type US Type
Shape Bow
Surface Treatment Galvanized
Place of Origin Shandong, China
Brand Name POWERFUL
Model Number G2130



Product Description



Powerful Machinery

U.S. TYPE DROP FORGED SCREW PIN BOW SHACKLE

   Quick Details



   • Size -  1/4"-3"

   • Material - carbon steel

   • Surface - Galvanized,painted and others

  • Technology - forged

   • Safety Factor - 6:1



   Introduction

   • this products is used for lifting, pullling and other usages.







Data Sheet




Powerful Machinery

Specifications

U.S. TYPE DROP FORGED BOLT TYPE ANCHOR SHACKLE(G2130)





SIZE DIA. OF PIN WEIGHT(KG/PC) WLL
IN. IN. ANCHOR TYPE TON
1/2" 5/8" 0.36 2
5/8" 3/4" 0.76 3-1/4
3/4" 7/8" 1.23 4-3/4
7/8" 1" 1.79 6-1/2
1" 1-1/8" 2.78 8-1/2
1-1/8" 1-1/4" 3.75 9-1/2
1-1/4" 1-3/8" 5.31 12
1-3/8" 1-1/2" 6.98 13-1/2
1-1/2" 1-5/8" 9.43 17
1-3/4" 2" 15.38 25
2" 2-1/4" 23.7 35
2-1/2" 2-3/4" 44.57 55
3" 3-1/4" 69.85 85
3-1/2" 3-3/4" 120.2 120
4" 4-1/4" 153.32 150







Powerful Machinery

Product Illustrations





 ZINC PLATED U.S. TYPE DROP FORGED BOLT TYPE ANCHOR SHACKLEZINC PLATED U.S. TYPE DROP FORGED BOLT TYPE ANCHOR SHACKLEZINC PLATED U.S. TYPE DROP FORGED BOLT TYPE ANCHOR SHACKLEZINC PLATED U.S. TYPE DROP FORGED BOLT TYPE ANCHOR SHACKLE



Production



Powerful Machinery

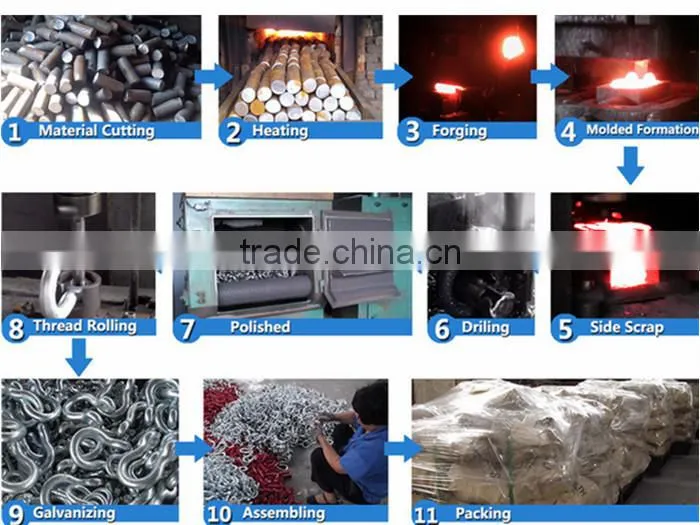

  Production Process

 ZINC PLATED U.S. TYPE DROP FORGED BOLT TYPE ANCHOR SHACKLE



 Noted: This process is suitable for almost rigging hardware products. Such as  shackles, turnbuckles, hooks and others.
