Offshore D Type Joint A.S

Offshore D Type Joint A.S thumbnail-1
Offshore D Type Joint A.S thumbnail-2
Offshore D Type Joint A.S thumbnail-3
Offshore D Type Joint A.S thumbnail-4
Offshore D Type Joint A.S photo-1
Offshore D Type Joint A.S photo-2
Offshore D Type Joint A.S photo-3
Offshore D Type Joint A.S photo-4
US$ 5 - 100 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Size:
14-162mm
Model Number:
End Shackle
Material:
Other, Alloy
Contact Supplier Request Quote Chat Now
Qingdao Powerful Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port Shanghai Port etc
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Size 14-162mm
Model Number End Shackle
Material Other, Alloy



Product Description


Powerful Machinery

  Offshore D Type Joint A.S

   Key Features Offshore D Type Joint A.S

   •  WLL: 1T to 55T
   •  Treatment: Drop-Forged, Cast
   •  Surface: Black Painted, Hot Dip Galvanized, Self Colored, etc
   •  Certificate.:LR,BV,CCS,GL,RINA,NK,KR and DNV
  •  Grade: AM2, AM3, ORQ, R3, R3s, R4, R4s, R5

   Introduction

   •   Anchor shackle,also called end shackle, is a U-shaped piece of

       metal secured with a clevis pin or bolt across the opening,that is

       an uncomplicated link between your anchor and chain,

       with no articulating or swivelling parts.

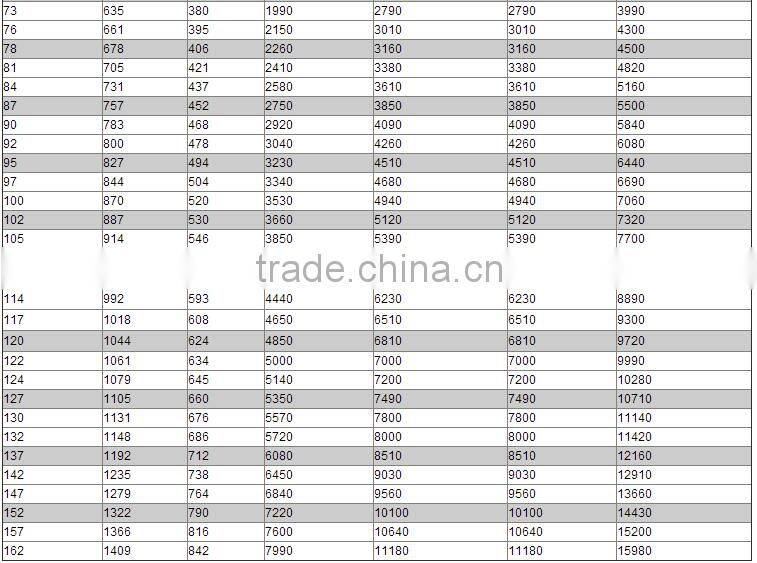

Data Sheet



Offshore D Type Joint A.S



Marine End Anchor Shackle

Diameter(mm) Length(mm) Width(mm)

Grade 2

Grade 3
Proof Load(KN) Breaking Load(KN) Proof Load(KN) Breaking Load(KN)
14 122 73 82 116

-

-
16 139 83 107 150 - -
17.5 152 91 127 179 - -
19 165 99 150 211 - -
20.5 178 107 175 244 - -
22 191 114 200 280 - -
24 209 125 237 332 - -
26 226 135 278 389 - -
28 244 146 321 449 449 642
30 261 156 368 514 514 735
32 278 166 418 564 583 833
34 296 176 468 655 655 937
36 313 187 523 732 732 1050
38 331 198 581 812 812 1160
40 348 208 640 896 896 1280
42 365 218 703 981 981 1400
44 383 229 769 1080 1080 1540
46 400 239 837 1170 1170 1680
48 418 250 908 1270 1270 1810
50 435 260 981 1370 1370 1960
52 452 270 1060 1480 1480 2110
54 470 270 1140 1590 1590 2270
56 487 291 1220 1710 1710 2430
58 505 302 1290 1810 1810 2600
60 522 312 1380 1940 1940 2770
62 539 322 1470 2060 2060 2940
64 557 333 1560 2190 2190 3130
66 574 343 1660 2310 2310 3300
68 592 354 1750 2450 2450 3500
70 609 364 1840 2580 2580 3690

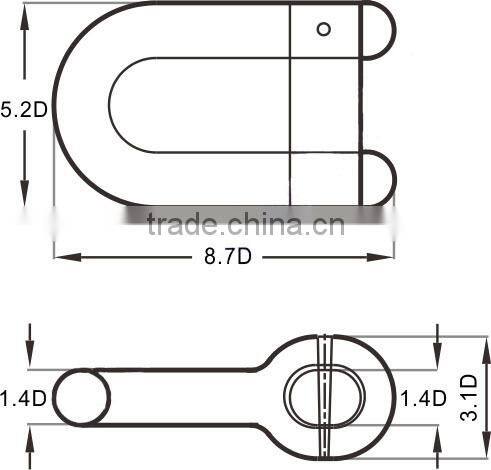

Detailed Dimensions

Offshore D Type Joint A.S

Offshore D Type Joint A.S







Powerful Machinery

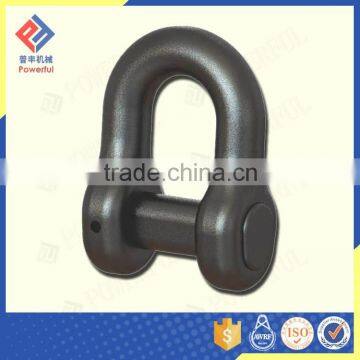

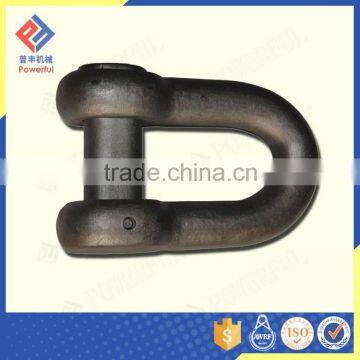

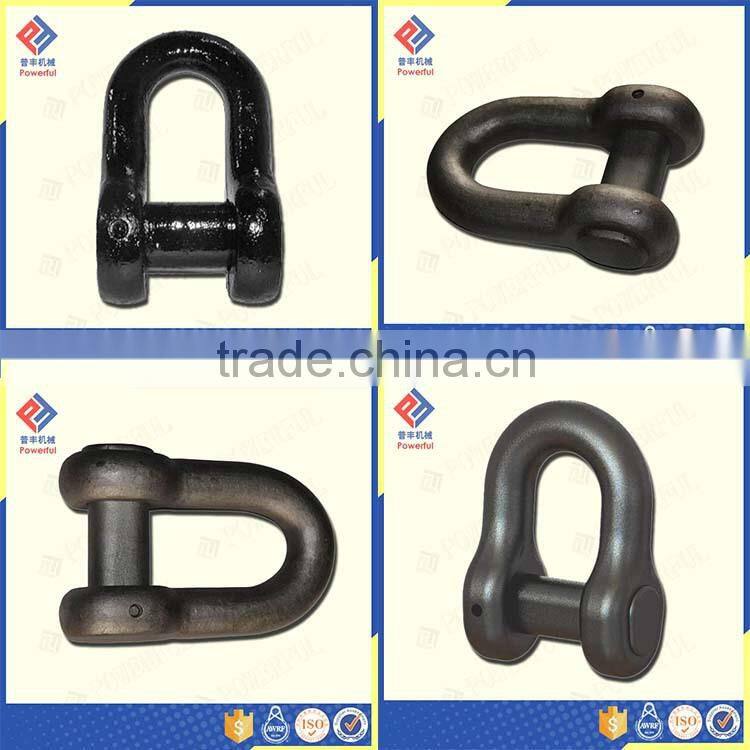

Product Photos



Offshore D Type Joint A.S



Offshore D Type Joint A.S











Powerful Machinery

Other Marine Hardwares



Offshore D Type Joint A.S





Powerful Machinery

Testing Equipment



Offshore D Type Joint A.S







Powerful Machinery

Usage



Offshore D Type Joint A.S







Powerful Machinery

Certifications



 Offshore D Type Joint A.S







Packaging & Shipping


Powerful Machinery

 Package and Transportation



 Offshore D Type Joint A.S



Company Information


Powerful Machinery

Our Company





Offshore D Type Joint A.S





     •   We started as an anchor chain factory, Yongxiang Anchor Chain Co., Ltd, about 20 years ago in Qingdao, China, and gradually

         developed into a big manufacturer of marine hardware supplies.

     •   At the same time, to meet the growing demands from our clients in new business areas, we created our trading brand - Powerful

         Machinery, and expand our scope to rigging hardwares and fasteners, and other related hardware by setting up solid partnership

         with other factories.

     •   Now we're proud to say that POWERFUL MACHINERY has ranked as top supplier on marine & rigging hardwares in northern China.













Powerful Machinery

Marketing



Offshore D Type Joint A.S







     •   Our products, such as high grade chains, blocks & pulleys, steel  wire rope, stainless steel products, are popular in Europe, U.S,

          most Asia areas for its first class quality and competitive price.

     •   By offering one-stop solution service, our experienced customer service team can assist you from inquriy to  delivery.
