Help CenterHIGH STRENGTH SCREW PIN BOLT TYPE BOW SHACKLE / DEE SHACKLE
Related Products
-
G210 US TYPE DROP FORGED SCREW PIN ANCHOR DEE SHACKLEUS$ 5 - 50MOQ: 1 Ton -
U.S. TYPE G2130 DROP FORGED BOLT TYPE ANCHOR BOW SHACKLEUS$ 5 - 50MOQ: 1 Ton
-
U.S. TYPE G2150 DROP FORGED BOLT TYPE CHAIN DEE SHACKLEUS$ 5 - 50MOQ: 1 Ton
-
AS2741 AUSTRILIAN STANDARD ALLOY STEEL GRADE S BOW SHACKLEUS$ 5 - 50MOQ: 1 Ton
-
AS2741 AUSTRILIAN STANDARD ALLOY STEEL GRADE S DEE SHACKLEUS$ 5 - 50MOQ: 1 Ton
Specifications
1.MATERIAL: ALLOY / CARBON STEEL2.USE: LIFTING
3.ISO9001 CE GS
4.SURFACE:ELECTROGALVANIZING / HOT DIP GALV.
5. SHACKLE
Product Description

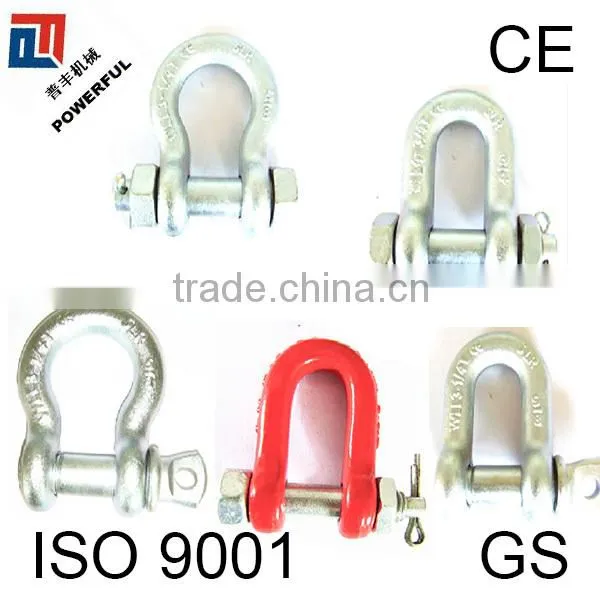

HIGH STRENGTH SCREW PIN BOLT TYPE BOW SHACKLE / DEE SHACKLE
1.MATERIAL: BOTY :CARBON STEEL
BOLT: ALLOY
2.USE: LASHING AND PULLING
3.CERTIFICATE:ISO9001 CE GS
4.SURFACE: ELECTROGALVANIZING / HOT DIP GALVANIZING
5.PROCESS: FORGED
6.KEY WORDS: SHACKLE
FOR LIFTING APPLICATION. FORGED-QUENCHED AND TEMPERED
BOW BODY-SURFACE FINISH: HOT DIP GALVANIZING/ ELECTROGALVANIZING
NUT-SURFACE FINISH : ELECTROGALVANIZING
BOLT-SURFACE FINISH: HOT DIP GALVANIZING / ELECTROGALVANIZING / POWDER PLASTIFIED
TYPE 1. HIGH STRENGTH BOLT TYPE BOW SHACKLE
| HIGH STRENGTH BOLT TYPE BOW SHACKLE | |||||||||||
| ITEM NO. | WEIGHT | WLL | B.L | A±1.5 | C±1.5 | D±1 | L±3 | H+0.2 | N | L1±0.5 | B |
| LBS | T | T | |||||||||
| 3/16" | 0.06 | 0.33 | 1.98 | 9.7 | 15.3 | 4.8 | 37.5 | 7 | 6 | 32 | 3.2 |
| 1/4" | 0.11 | 0.5 | 3 | 11.9 | 19.8 | 6.35 | 46.8 | 8.7 | 7.5 | 40 | 4 |
| 5/16" | 0.22 | 0.75 | 4.5 | 13.5 | 21.4 | 8 | 53 | 11.5 | 9.5 | 48.4 | 5 |
| 3/8" | 0.33 | 1 | 6 | 16.8 | 26.2 | 9.7 | 63.3 | 13 | 11.2 | 58.8 | 6 |
| 7/16" | 0.49 | 1.5 | 9 | 19 | 29.5 | 11.2 | 78 | 15 | 13.4 | 65.9 | 7 |
| 1/2" | 1.01 | 2 | 12 | 20.6 | 33.3 | 12.7 | 83.3 | 17 | 15.2 | 73.7 | 8 |
| 5/8" | 1.6 | 3.25 | 19.5 | 27 | 42.9 | 17.5 | 106.5 | 21 | 19 | 94 | 10 |
| 3/4" | 2.42 | 4.75 | 28.5 | 32 | 50.8 | 20.6 | 126.5 | 23.5 | 21.2 | 108.7 | 10 |
| 7/8" | 3.95 | 6.5 | 39 | 36.6 | 58 | 24.6 | 148.1 | 26.5 | 24 | 127.8 | 12 |
| 1" | 5.66 | 8.5 | 51 | 43 | 68.4 | 27 | 166.6 | 29.5 | 27 | 145.8 | 13.5 |
| 1-1/8" | 8.27 | 9.5 | 57 | 46 | 74 | 31.75 | 190 | 32 | 30 | 160.6 | 15 |
| 1-1/4" | 11.71 | 12 | 72 | 51.6 | 82.6 | 35 | 209.6 | 38.5 | 36 | 181.4 | 18 |
| 1-3/8" | 15.83 | 13.5 | 81 | 57.2 | 92.2 | 38.1 | 232.7 | 41 | 39 | 188.3 | 19 |
| 1-1/2" | 20.8 | 17 | 102 | 60.5 | 98.6 | 41.2 | 254 | 41.5 | 39 | 211 | 20 |
| 1-3/4" | 33.91 | 25 | 150 | 73.2 | 127 | 57.2 | 313.5 | 50.5 | 48 | 281.6 | 39 |
| 2" | 52.25 | 35 | 210 | 82.5 | 146 | 61 | 347.5 | 58.5 | 56 | 311 | 46 |
| 2-1/2" | 98.25 | 55 | 330 | 105 | 184.2 | 79.5 | 453.2 | 70.5 | 68 | 403 | 58 |
| 3" | 154 | 85 | 510 | 127 | 200.2 | 92 | 546 | 82.5 | 80 | 476 | 64 |
Ultimate load is 6 times the working load limit.

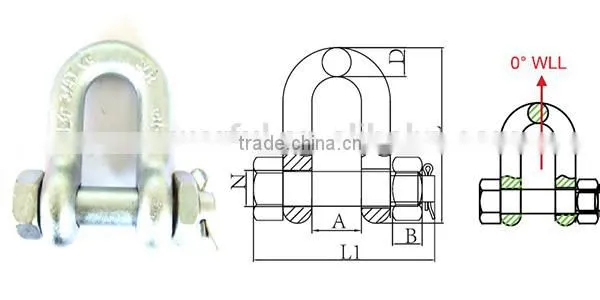

TYPE 2. HIGH STRENGTH BOLT TYPE DEE SHACKLE
| HIGH STRENGTH BOLT TYPE DEE SHACKLE | |||||||||
| ITEM NO. | WEIGHT | WLL | B.L | A±1.2 | D±0.5 | N±0.2 | L±2 | L1±0.5 | B |
| LBS | T | T | |||||||
| 3/16" | 0.02 | 0.33 | 1.98 | 9.7 | 4.8 | 7 | 34.15 | 32 | 3.2 |
| 1/4" | 0.13 | 0.5 | 3 | 11.9 | 6.4 | 8 | 40.4 | 40 | 4 |
| 5/16" | 0.23 | 0.75 | 4.5 | 13.5 | 8 | 9.7 | 48.5 | 48.4 | 5 |
| 3/8" | 0.33 | 1 | 6 | 16.8 | 9.7 | 11.2 | 58.7 | 57.8 | 6 |
| 7/16" | 0.49 | 1.5 | 9 | 19 | 11.2 | 12.7 | 67.8 | 65.9 | 7 |
| 1/2" | 0.75 | 2 | 12 | 20.6 | 12.7 | 16.3 | 77 | 73.7 | 8 |
| 5/8" | 1.47 | 3.25 | 19.5 | 27 | 16 | 20 | 95.5 | 94 | 10 |
| 3/4" | 2.52 | 4.75 | 28.5 | 32 | 20.6 | 22.6 | 115 | 108.7 | 10 |
| 7/8" | 3.85 | 6.5 | 39 | 36.6 | 24.6 | 25.9 | 135.4 | 127.8 | 12 |
| 1" | 5.55 | 8.5 | 51 | 43 | 25.4 | 29.2 | 151 | 145.8 | 13.5 |
| 1-1/8" | 7.6 | 9.5 | 57 | 46 | 31.75 | 31.8 | 172.2 | 163.7 | 15 |
| 1-1/4" | 10.81 | 12 | 72 | 51.6 | 35 | 35.6 | 190.5 | 178.4 | 18 |
| 1-3/8" | 13.75 | 13.5 | 81 | 57.2 | 38.1 | 38.9 | 210.3 | 188.3 | 19 |
| 1-1/2" | 18.5 | 17 | 102 | 60.5 | 41.2 | 42.2 | 230 | 211 | 20 |
| 1-3/4" | 31.4 | 25 | 150 | 73.2 | 53.8 | 51.8 | 278.7 | 281.6 | 39 |
| 2" | 46.75 | 35 | 210 | 82.5 | 59.9 | 58.4 | 323.6 | 313.5 | 46 |
| 2-1/2" | 85 | 55 | 330 | 105 | 66.8 | 71.1 | 377.2 | 375 | 58 |
| 3" | 124.25 | 85 | 510 | 127 | 90 | 82.6 | 428.5 | 444.4 | 64 |
Ultimate load is 6 times the working load limit.

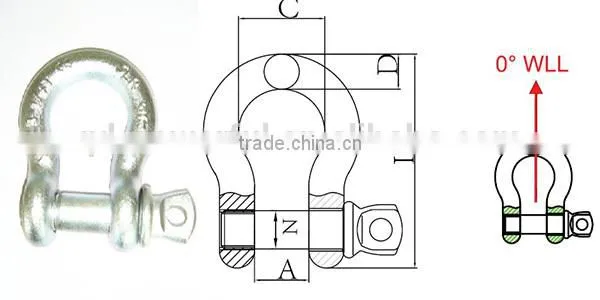

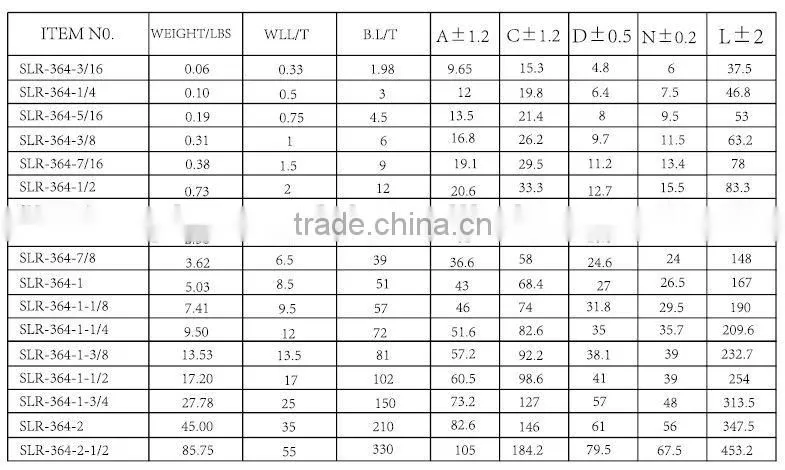

TYPE 3. HIGH STRENGTH BOLT TYPE DEE SHACKLE
Ultimate load is 6 times the working load limit.

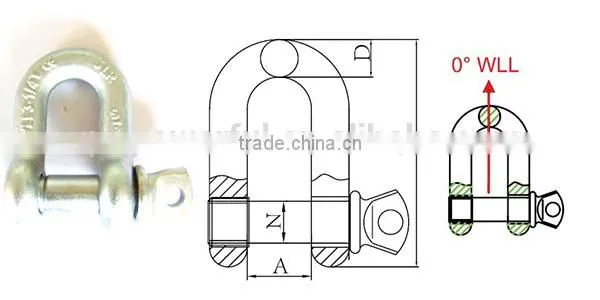

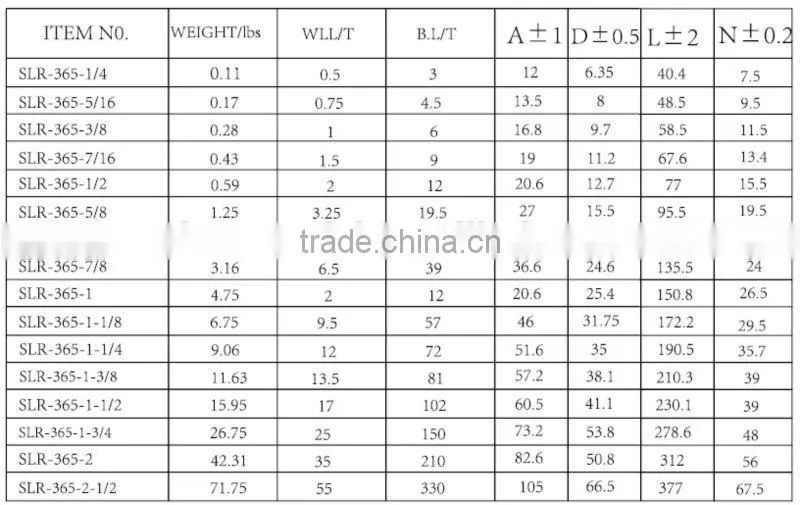

TYPE 4. HIGH STRENGTH BOLT TYPE DEE SHACKLE
Ultimate load is 6 times the working load limit.
Never exceed Working load Limit
SUPER ALLOY STEEL: QUENCHED AND TEMPERED
INDIVIDUALLY PROOF TESTED AT 2TIMES WORKING LOAD LIMIT.
BREAKAGE TEST AND FATIGUE TEST
100% MAGNAFLUX CRACK DETECTION.
SURFACE FINISH : POWDER PLASTIFIED
Packing: packed in cartons then on pallets or packed in wooden case
Port: Any China main port.
Shipping : within 30days.
We have more than 10 years export experience. We are specialized in producing and exporting all kinds of chains, rigging hardware, casting and forging items, stainless steel products and other related products.
As a leading company in this industry in China, we provide favorable prices, good quality and the best services.
All members of our team will be very honored if you contact us. We will offer the best services to you.
The prodcution has passed the ISO9001 international quality system certificaion ,has been authorized the CE certification .
I'm Eileen Wang, any question , please contact with me, I will be always on line and at your service.
