Specifications
1.MATERIAL: ALLOY2.USE: FOR G80 CHAINS LIFTING
3.ISO9001 CE GS
4.SURFACE:PLASTIFIED
5.EUROPEAN G80 MASTER LINK ASSEMBLY

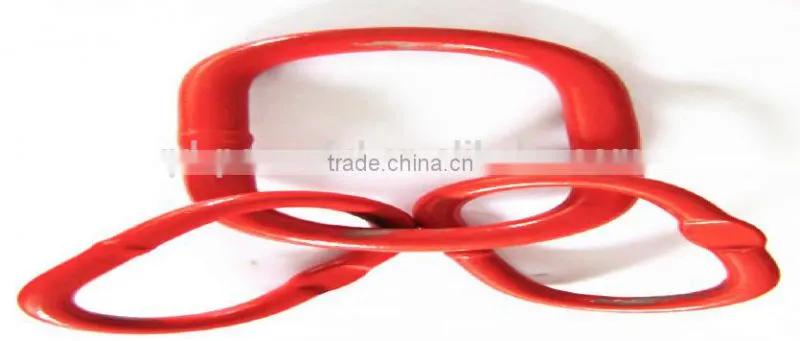

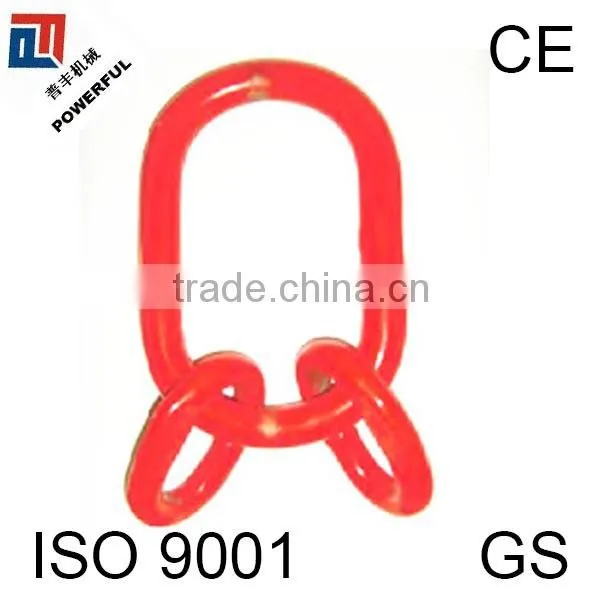

EUROPEAN TYPE G80 FORGED LIFTING MASTER LINK ASSEMBLY
1.MATERIAL: ALLOY
2.USE: FOR G80 CHAINS LIFTING
3.CERTIFICATE:ISO9001 CE GS
4.SURFACE:PLASTIFIED
5.PROCESS: BLUE AREA :MAIN LINK :WELDED SUB LINK:WELDED
YELLOW AREA : MAIN LINK: FORGED SUB LINK:WELDED
6.KEY WORDS: EUROPEAN TYPE G80 FORGED LIFTING MASTER LINK ASSEMBLY
| EUROPEAN TYPE G80 FORGED LIFTING MASTER LINK ASSEMBLY | ||||||||||
| ITEM CODE | G80 EN818-2 CHAIN | WEIGHT | WLL | DIMENSION (MM) | ||||||
| FOR 3 or 4 LEG SLING | ||||||||||
| MM | KG | T | A | B | D | a | b | d | ||
| 6 | 6 | 1.18 | 2.36 | 135 | 75 | 18 | 54 | 25 | 13 | |
| 7 | 7 | 1.24 | 3.15 | 135 | 75 | 18 | 60 | 38 | 13 | |
| 8 | 8 | 2.2 | 4.25 | 160 | 90 | 22 | 70 | 34 | 16 | |
| 10 | 10 | 3.4 | 6.7 | 180 | 100 | 26 | 85 | 40 | 18 | |
| 13 | 13 | 6.1 | 11.2 | 200 | 110 | 32 | 115 | 50 | 22 | |
| 16 | 16 | 9.98 | 17 | 260 | 140 | 36 | 140 | 65 | 26 | |
| 18 | 18 | 18.9 | 21.2 | 340 | 180 | 45 | 180 | 100 | 32 | |
| 20 | 20 | 22.6 | 26.5 | 350 | 190 | 50 | 180 | 100 | 32 | |
| 22 | 22 | 25.2 | 31.5 | 350 | 190 | 50 | 180 | 100 | 36 | |
| 26 | 26 | 35.2 | 45 | 400 | 200 | 56 | 180 | 100 | 40 | |
| 28 | 28 | 47 | 50 | 430 | 220 | 63 | 180 | 100 | 45 | |
| 32 | 32 | 66.46 | 63 | 460 | 250 | 72 | 200 | 110 | 50 | |
BIGGER SUB LINKS:
| EUROPEAN TYPE G80 MASTER LINK ASSEMBLY | ||||||||||
| ITEM CODE | G80 EN818-2 CHAIN | WEIGHT | WLL | DIMENSION (MM) | ||||||
| FOR 3 or 4 LEG SLING | ||||||||||
| MM | KG | T | A | B | D | a | b | d | ||
| 7 | 7 | 1.9 | 5.5 | 160 | 95 | 20 | 110 | 60 | 13 | |
| 8 | 8 | 2.82 | 6.65 | 160 | 95 | 22 | 140 | 80 | 16 | |
| 10 | 10 | 4.87 | 9.4 | 190 | 110 | 26 | 160 | 95 | 20 | |
| 13 | 13 | 9.38 | 14.2 | 230 | 130 | 32 | 190 | 110 | 26 | |
| 16 | 16 | 15.28 | 22.3 | 275 | 150 | 38 | 230 | 130 | 30 | |
| 20 | 20 | 21.78 | 33.5 | 340 | 180 | 45 | 230 | 130 | 32 | |
| 22 | 22 | 31.52 | 40.8 | 350 | 190 | 50 | 275 | 150 | 38 | |
| 26 | 26 | 48.92 | 56.8 | 400 | 200 | 56 | 340 | 150 | 45 | |
Never exceed Working load Limit
SUPER ALLOY STEEL: QUENCHED AND TEMPERED
INDIVIDUALLY PROOF TESTED AT 2TIMES WORKING LOAD LIMIT.
BREAKAGE TEST AND FATIGUE TEST
100% MAGNAFLUX CRACK DETECTION.
SUITABLE FOR 1 OR 2 LEGS G80 CHAIN SLING AS PER EN818-4
SURFACE FINISH : POWDER PLASTIFIED
Packing: packed in cartons then on pallets or packed in wooden case
Port: Any China main port.
Shipping : within 30days.
We have more than 10 years export experience. We are specialized in producing and exporting all kinds of chains, rigging hardware, casting and forging items, stainless steel products and other related products.
As a leading company in this industry in China, we provide favorable prices, good quality and the best services.
All members of our team will be very honored if you contact us. We will offer the best services to you.
The prodcution has passed the ISO9001 international quality system certificaion ,has been authorized the CE certification .
