Long Lifecycle 12v 200ah Li-ion Battery for Solar Power System

Long Lifecycle 12v 200ah Li-ion Battery for Solar Power System photo-1
US$ 800 - 2,000 MOQ: 1 Pack
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OptimumNano
Model Number:
OPT-012-200
Payment & Shipping
Payment Methods:
Port of Shipment:
Guang Dong China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name OptimumNano
Model Number OPT-012-200
Material Other, lithium ion
Size 525*269*220mm
Number of Cells 160 cells
Max. Power 2400wh

long lifecycle  12v 200ah  li-ion battery for solar power system

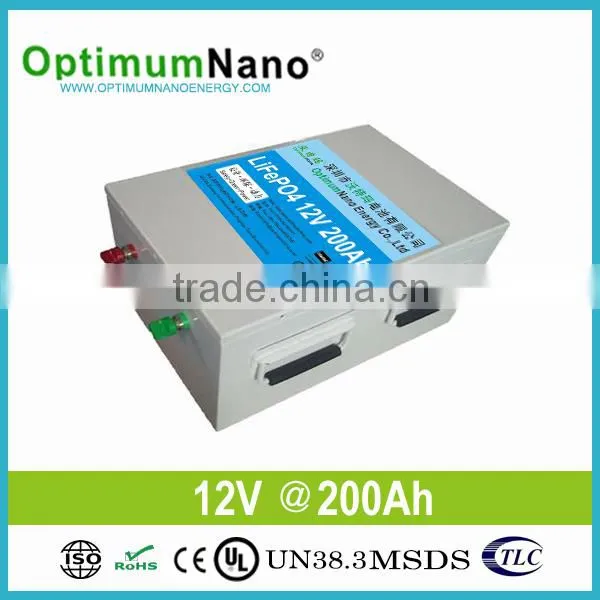

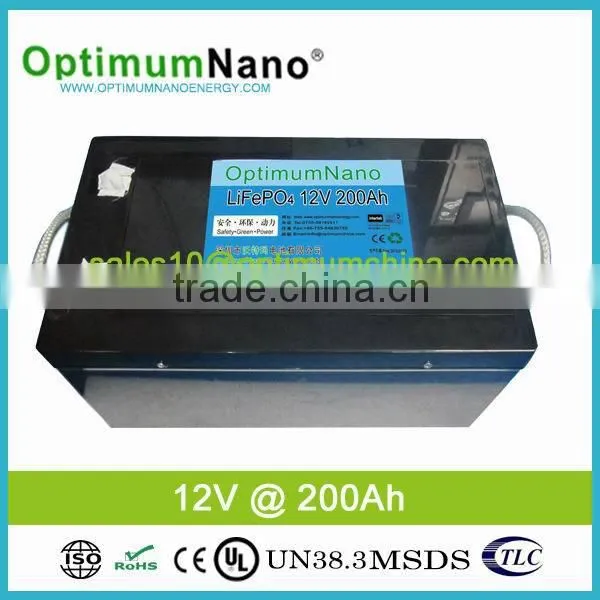

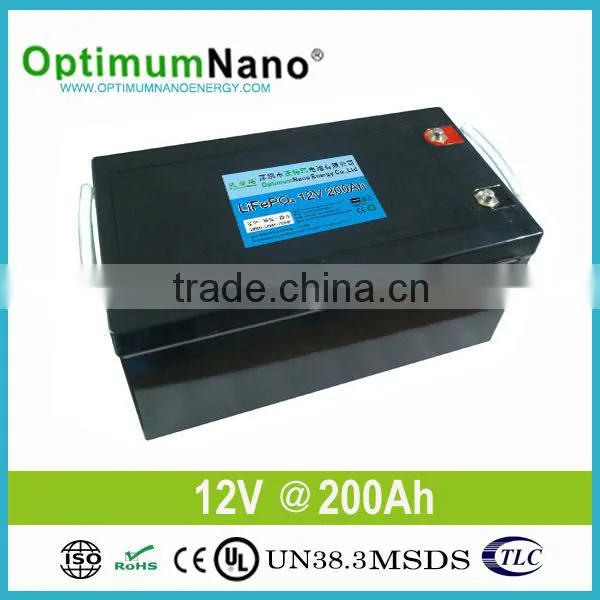

Picture for 12V 200Ah solar battery



long lifecycle 12v 200ah li-ion battery for solar power systemlong lifecycle 12v 200ah li-ion battery for solar power system



Specification of 12V 200Ah solar battery

                                             12V 200Ah solar battery
Model 12V 200Ah solar battery
Nominal Capacity (Ah) 200Ah
Nominal Voltage (V) 12V
Standard Charge Current (A) 50A
Continuous Discharge Current (A) 100A
Pulse Discharge Current (A) 200A
Dimension (mm) 560(L) x 360(W) x 200(H)
Weight (kg) 30kg
Charge Temperature Range(°C) 0~45°C; 32oF~113oF
Discharge Temperature Range(°C) -20~60°C; -4oF~149oF
Storage Temperature Range(°C) -20~45°C; -4oF~113oF





12V series LiFePO4 battery

Model Nominal voltage Nominal capacity Size Weight
12V 1Ah 12V  1Ah 74*70*21mm 0.5kg
12V 2Ah 12V 2Ah 73*57*50mm 0.5kg
12V 4Ah 12V 4Ah 135*75*85mm 0.8kg
12V 5Ah 12V 5Ah 151*51*93mm 0.9kg
12V 6Ah 12V 6Ah 145*55*55mm 1kg
12V 10Ah 12V 10Ah 135*85*85mm 1.3kg
12V 20Ah 12V 20Ah 182*76*167mm 2.8kg
12V 25Ah 12V 25Ah 184*75*135mm 3.4kg
12V 30Ah 12V 30Ah 118*175*175mm 4kg
12V 40Ah 12V 40Ah 190*165*175mm 5.5kg
12V 50Ah 12V 50Ah 190*165*175mm 7kg
12V 55Ah 12V 55Ah 269*170*220mm 7.5kg
12V 60Ah 12V 60Ah 350*168*179mm 9kg
12V 65Ah 12V 65Ah 323*171*215mm 10kg
12V 80Ah 12V 80Ah 260*170*215mm 13kg
12V 100Ah 12V 100Ah 323*172*218mm 16kg
12V 150Ah 12V 150Ah 525*269*220mm 24kg
12V 200Ah 12V 200Ah 525*269*220mm 30kg
12V 300Ah 12V 300Ah 525*269*220mm 45kg
12V 400Ah 12V 400Ah 560*360*200mm 60kg



Application

1. LED light, solar street light, UPS, solar and wind system

2. Electric wheelchair, golf trolley, golf cart, electric bus, electric motorcycle,etc

3. Medical device, security system



Product Features

1, High energy density

2, High working voltage for single battery cells
3, Pollution-free
4, Long cycle life
5, No memory effect
6, Capacity, resistance, Voltage, platform time consistency is good
7, With short-circuit production function, safe and reliable
8, Factory price & High quality
9, Good consistency, low self discharge
10, Light weight, small size
11.High discharge rate

12.Quality and security guaranted,with CE,ROHS approval.

13.The lifepo4 battery pack is widely used for electric bicycle,golf car,electric bike,electric wheelchair,power tools,electric          scooter,emergency light,etc



Why Choose OptimumNANO Battery

  • Every OptimumNANO Battery® has a patented "internal" battery protection system
  • More than 12 years' esperience in Lithium battery
  • Providing batteries according to customers' requirement
  • Excellent customer service and 24h online technical support
  • High Quality, Safe Lithium Ion Batteries with the industries best warranty - 2 year.
  • Worldwide shipping, export from multiple distribution centers around the world.

Shipping

By sea, by air or express, providing the best and fast delivery for customers.

long lifecycle 12v 200ah li-ion battery for solar power system



long lifecycle 12v 200ah li-ion battery for solar power system
