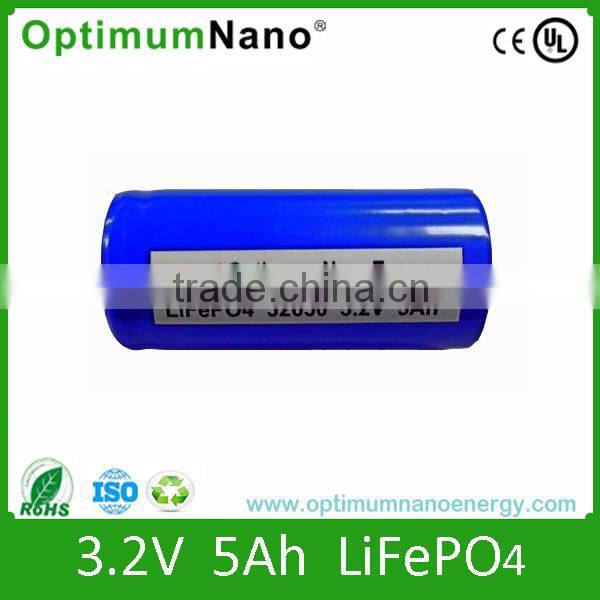

Deep Cycle LiFePO4 Battery Cells 32650 3.2V 5Ah CE, RoHS,UL,ISO9001
♥ 1. OptimumNano LiFePO4 Cells List
| No | Model | Voltage(V) | Capacity (Ah) | Diameter(mm) | Height(mm) | Weight(g) |
| 1 | IFR14500 | 3.2V | 500mAh | 14 | 50(±0.5mm) | 25 |
| 2 | IFR18650 | 3.2V | 1.3Ah | 18 | 65(±0.5mm) | 45 |
| 3 | IFR26650 | 3.2V | 3Ah | 26 | 65(±0.5mm) | 85 |
| 4 | IFR32650 | 3.2V | 5Ah to 5.5Ah | 32 | 70(±0.5mm) | 145 |
| 5 | IFR32750 | 3.2V | 6Ah | 32 | 75(±0.5mm) | 160 |
♥ 2. Specification , Package and Application
| No. | Item | Data | Remark | |||||||||||||||||||
| 1 | Model | OPT-32650 | Single cell/ steel case | |||||||||||||||||||
| 2 | Rated Voltage/Capacity (0.2C5A) | 3.2V (Working Voltage) | 2000mAh | |||||||||||||||||||
| 3 | Max.Charge Voltage/ Cut-off Voltage | 3.65V | 2.5V | |||||||||||||||||||
| 4 | Standard/Max Charge Current | 1A / 10A | 0.2C5A / 2C5A | |||||||||||||||||||
| 5 | Standard Charging Time | 5h | 0.2C5A | |||||||||||||||||||
| 6 | Max Continuous Discharge Current | 15A | 3C5A | |||||||||||||||||||
| 7 | Peak Discharge Current | 30A | 6C5A/10s | |||||||||||||||||||
| 8 | Dimension | Diameter:32mm | Height: 70mm | |||||||||||||||||||
| 9 | Impedance(Max, at 1000Hz.) | ≤ 10mΩ | ||||||||||||||||||||
| 10 |
|
|||||||||||||||||||||
| 11 | Charge method (CC/CV) | Standard | 0°C~45°C | |||||||||||||||||||
| Discharge | -20°C~70°C | |||||||||||||||||||||
| Storage | -20°C~45°C | |||||||||||||||||||||
♥ 3. Package
About us
Brief introduction of company
OptimumNano Energy co., ltd, one of the biggest manufacturers for lifepo4 battery, has specialized in producing battery for more than 12years, with SGS,NQA,UL. CE. RoHS, ISO9001,TS16949 certification ,80,000 square meters factory, more than 2000 workers ,300 professional engineers.
Product Feature
1. Safety: safest Li-Ion battery, CE UL approved, built-in PCM/BMS, no fire, no explosion
2. Clean and Green energy, no toxic material contained
3. Long life cycle:> 2000 times at 1C rate and 100%DoD, 6-8 times of lead acid battery
4. No memory effect, highly efficient,charge anytime
5. Small size and light weight: 1/2 size& weight of lead acid battery
6. Good performance at high temperature
7. Low self-discharge rate: < 3% monthly
♥ 4. Application
1. Large-scale electric vehicles: Electric bus, electric car, E-Tour Car
2. Light electric car: E-bike, electric scooter, e-motor, electric golf car, forklift, cleanness car, electric wheelchairs
3. E-tool: Electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Small medical equipment and portable equipment
7. Solar and wind power energy storage system
♥ 5.Factory, Workshop
♥ 6. Certificate
♥7 Shipping
1. We will ship the products within 15 working days after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL/TNT/EMS and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsiblility of the shipping service.
♥ 8.Contact us
OPTIMUM BATTERY CO.,LTD
ADDRESS:No. 9 BLDG, Zhukeng 1st Industrial park, Pingshan Town, SHENZHEN, CHINA 518057
TEL:86+18825253495
FAX:86755-84630785
|
Welcome to OPTIMUM BATTERY CO.,LTD for Inquiry and Purchase! |
