12V 150AH lithium battery for UPS and solar system

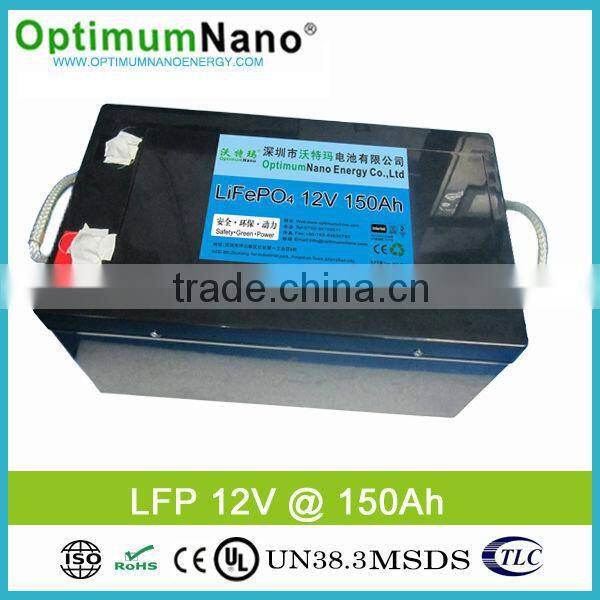

• Picture of 12v 150ah lithium battery
• Specification of 12v 150ah lithium battery
| NO. |
Item |
General Parameter |
Remark |
|
| 1 | Model | IFR 32650-5Ah | Single | |
| 2 |
Casing material for single cell |
Nickel plated steel | ||
| 3 |
Standard capacity(0.2C3A) |
400Ah | ||
| 4 |
Mininum Capacity(1C3A) |
390Ah | ||
| 5 |
Rated voltage |
12V |
|
|
| 6 |
Max.Charge voltage |
14.6V |
|
|
| 7 |
Cut-off voltage |
10V |
|
|
| 8 |
Standard charge current |
150A | 0.5C3A | |
| 9 |
charging Time |
2.5h | 0.5C3A | |
| 10 |
Max Continuous discharge current |
180A | 0.5C3A | |
| 11 |
Max discharge curren |
400A | 1C3A(5)5mintues | |
| 12 | Battery dimension |
540*360*270mm | ||
| 13 |
Total weight(Approx.) |
About 51kg | ||
| 14 |
Impedance(Max, at 1000Hz.) |
≤ 25mΩ | ||
| 15 |
Charge method (CC/CV) |
Standard |
0ºC~45ºC | |
|
discharge |
-20ºC ~60ºC | |||
|
storage |
-20ºC ~45ºC | |||
• Application
1. Large-scale electric vehicles: Electric bus, electric car, E-Tour Car
2. Light electric car: E-bike, electric scooter, e-motor, electric golf Car, forklift, cleanness car, electric wheelchairs
3. E-tool: Electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Small medical equipment and portable equipment
7. Solar and wind power energy storage system
• Models of 12v lithium battery
| 12V 5/10/20/25/30/40/50/60/80/100/120/150/200/300/400Ah | |||||||
| Item No. | OPT-12-005 | OPT-12-010 | OPT-12-020 | OPT-12-030 | OPT-12-040 | OPT-12-050 | OPT-12-060 |
| Standard Capacity | 5Ah | 10Ah | 20Ah | 30Ah | 40Ah | 50Ah | 60Ah |
| Rated Voltage | 12.8V | ||||||
| Discharge Cut-off Voltage | 10.0V | ||||||
| Cell Model | IFR32650/32750 | ||||||
| Casing Material | Steel Case for Single Cells | ||||||
| Self Discharge Rate | ≤3% after one month | ||||||
| Life Cycles | 80% capacity remaining after 2000 times at 1C rate 100%DoD | ||||||
| Max Charger Voltage | DC14.6V | ||||||
| Standard Charge Current | 0.2C | ||||||
| Protection Function | Short-circuit &Over-current &Overcharge &Over-discharge &Undervoltage Protection | ||||||
| Product Size(mm) | 151*51*93 | 135*85*85 | 182*76*167 | 118*175*175 | 190*165*175 | 190*165*175 | 350*168*179 |
| Approx N.W | 0.9Kg | 1.3Kg | 2.8Kg | 4.0Kg | 5.5Kg | 7.0Kg | 8.0Kg |
| OPT-12-080 | OPT-12-100 | OPT-12-150 | OPT-12-200 | OPT-12-200 | OPT-12-300 | OPT-12-400 | |
| Standard Capacity | 80Ah | 100Ah | 150Ah | 200Ah | 200Ah | 300Ah | 400Ah |
| Product Size(mm) | 260*170*215 | 330*170*220 | 502*262*242 | 502*262*242 | 360*220*262 | 520*262*242 | 560*360*200 |
| Approx N.W | 11Kg | 16Kg | 24Kg | 35Kg | 38Kg | 45Kg | 65Kg |
• Features of Optimumnano LiFePO4 battery pack:
1. Pack assembly technique: Use the most mature cylindrical structure design 32650 LiFePO4 battery, making use of assembly technique developed by us to form products of different modules required by customers which are against dust, water, vibration and good in conductivity and heat raleasing. At present, the maximum capacity of module we've produced so far is 900Ah while maximum voltage of pack is 600V;
2. Battery management technique: Self-developed BMS, automatic testing voltage, temperature, current, insulation level and SOC, use advantage lossless balancing function and GPRS wireless data transmission function.
3. Ensuring of best performance of each cell;
4. Seamless exchange: We can produce packs that are the same with lead-acid battery in voltage, capacity and dimension, without changing the mould.
5. Lighter, smaller and stronger: Optimumnano LiFePO4 battery pack system is featured with lighter weight, smaller dimension and stronger power with service term above 10 years.
Sincerely hope we can provide you with our best service, Welcome you to visit and negotiate in our factory!
