Help CenterElite Qualtiy Long Time Duration LiFePo4 Battery Pack 36V/10Ah for E-bike
Related Products
-
Large Cpacity UPS Energy-storage LiFePo4 Battery PackNegotiableMOQ: 2 Packs -
High Quality LiFePo4 48V/10Ah Rechargeable Battery Pack for E-bikeNegotiableMOQ: 2 Pieces
-
36V/10Ah Electronic Bicycle Power Battery LiFePo4 Long Cycle Rechargeable Battery PackNegotiableMOQ: 2 Pieces
-
High Performance 12V 12Ah Genuine LiFePo4 Lithium Battery PackNegotiableMOQ: 2 Pieces
-
48V 60Ah Excellent Performance LiFePo4 Battery Pack Different Application of E-car/upsNegotiableMOQ: 2 Packs
Optimum e bike battery 36V 10Ah from 2000 workers manufacturer :
»»» APPLICATION:
Item |
General Parameter |
||||
Model |
IFR 48V-10Ah |
||||
Casing material for single cell |
steel case for single cells |
||||
Nominal Capacity(0.2C5A) |
10Ah |
||||
Mininum Capacity(0.2C5A) |
9.5Ah |
||||
Nominal voltage |
48V |
||||
Max.Charge voltage |
58.4V |
||||
Cut-off voltage |
40.0V |
||||
Standard charge ang discharge current |
0.2C5A |
||||
Max discharge current |
2.5C5A |
||||
Length |
268±0.5mm |
||||
Width |
70±0.5 mm |
||||
Height |
165±0.5mm |
||||
Weight(Approx,including case) |
About 5.4kg |
||||
Impedance(Max, at 1000Hz.) |
≤ 85mΩ |
||||
|
Charge method (CC/CV) |
Stanard |
CC |
0.2C |
58.4V cut off |
|
CV |
58.4V |
0.05C cut off |
|||
Rapid |
CC |
1C |
58.4V cut off |
||
CV |
58.4V |
0.05C cut off |
|||
Operate temperature |
Charge |
0°C~45°C |
|||
discharge |
-20°C~60°C |
||||
storage |
-20°C~45°C |
||||
Product Gallery:

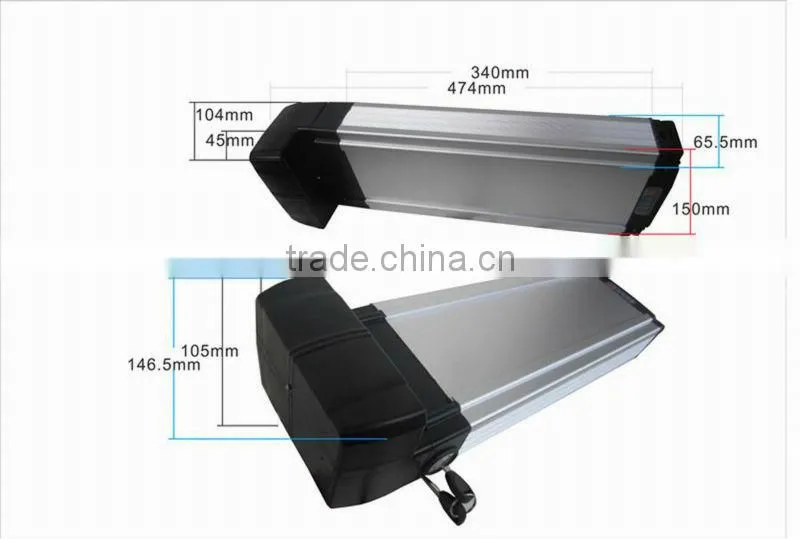

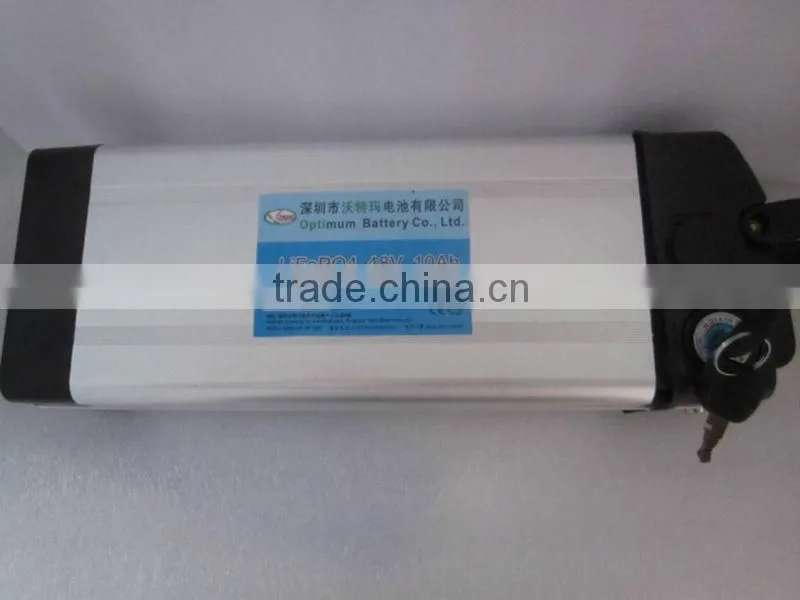

48V 10AH Electric bike battery: ( Size and Package customerized )

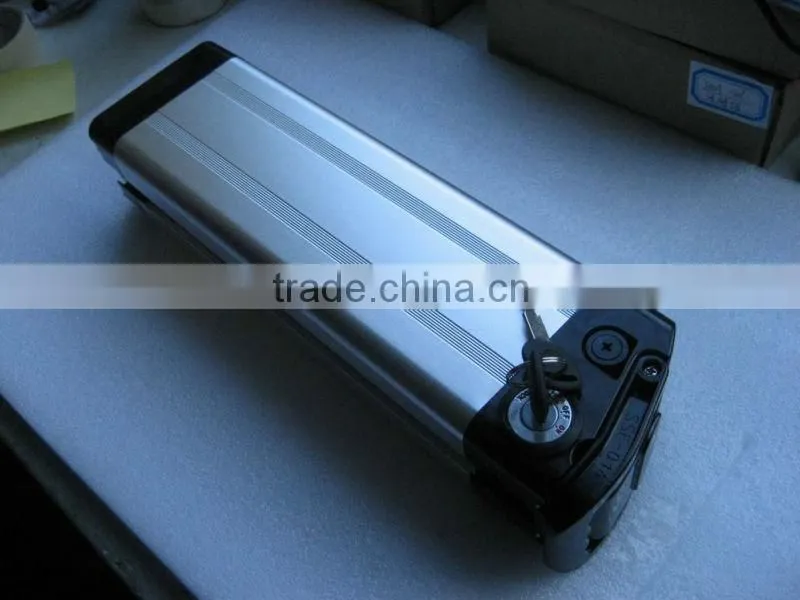

36V 10A Ebike battery

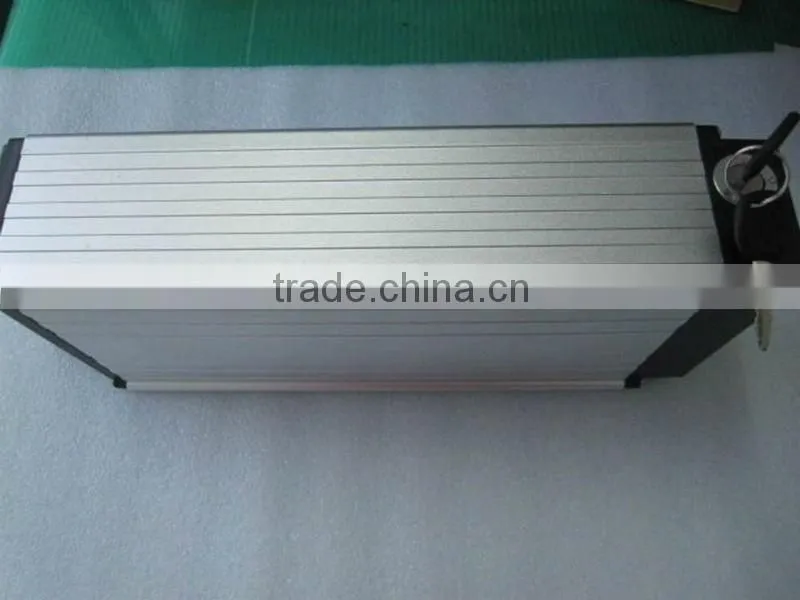

24V 10Ah Ebike battery
»»» Why choose LiFePO4 Battery?
Comparison with traditional batteries like SLA:
| Item No. | LiFePO4 Battery | SLA Battery | Note |
| Weight / Power Ratio | 200-300 Wh / Kg | 32-37 / Kg | 4:1 |
| Dimension / Power Ratio | 210Wh / L | 70Wh / L | 3:1 |
| Cycle times | > 2000 | 300 | 7:1 |
| High Rate Charge / Discharge Performace | > 96 % | 60-70 % | 1.6:1 |
| Charging Performance | 1 h | 4 h | 4:1 |
| High Temperature Discharge Performance | -25°C~70°C / 104 % (500°C max) | -20°C~45°C / 80% (200°C max) | 1.3:1 |
| Self discharge monthly | < 3 % | > 10 % | 3:1 |
| Safety | Very stable liFePO4 Structure |
Good safty | safest |
| Environmental | Green | Polution | Zero emission |
Optimum Battery Honors:
On Dec 11, 2009 Mr. Wan Gang, Minster of Science and Technology Department and Mr. Wangrong, Mayor of Shenzhen visited us
at Shenzhen Convention & Exhibition Centre in "6th International Energy-Efficiency and New Energy Vehicles& Intelligent Transportation Achievement Exhibition."
1, Passed the authorization and the audit of ISO9001 Quality System in 2003.
2, Awarded with Shenzhen high-tech enterprise honor in 2007.
3, Owned over 30 independent R & D intellectual property patent in Mar, 2008
4, Became the first domestically battery maker that obtains UL and European CE safety approval inApr, 2008.
5, Passed automobile-mating qualification TS16949 approval in Jun, 2009.
6, Awarded national high-tech enterprise honor in Jul, 2009.
7, Obtained Longgang district innovation award for Nickel-zinc battery in Sep, 2009
8, Became the first sole globally Lithium Iron Phosphate battery manufacturer which passed accreditation of Australian coal industry association in 2009.
9, we obtained an interest-free loan which offered by Shenzhen Technology Bureau ,also we won
Certificates for LiFePO4 Battery:
LiFePO4 Battery Production line:
New Factory for LiFePO4 battery: OPTIMUM NANO
