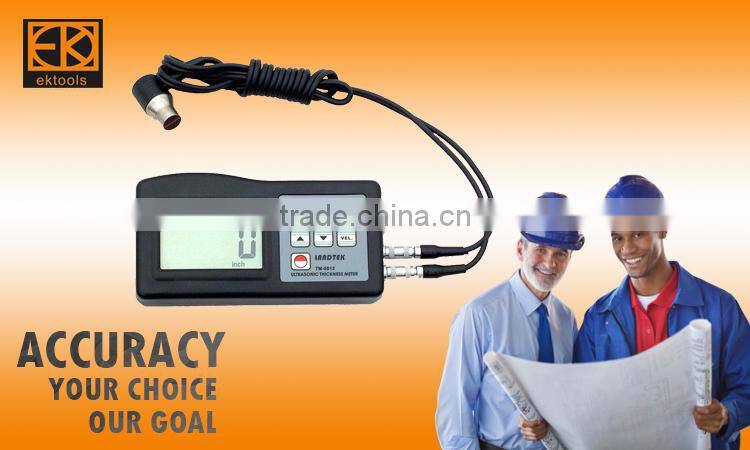

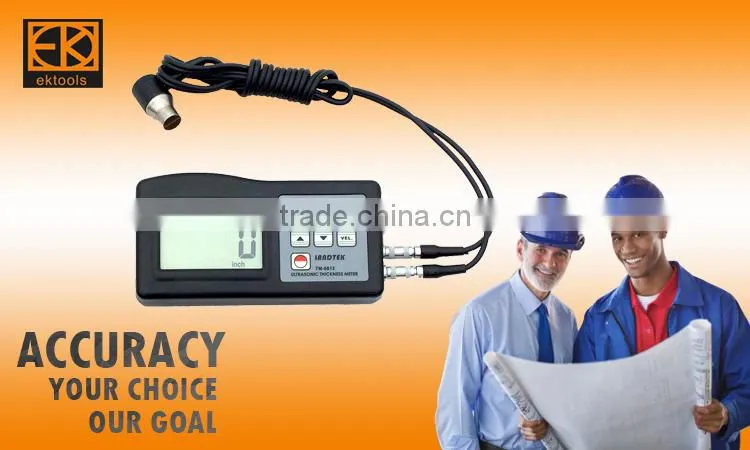

china steel thickness gauge tool
1. Main features about ultrasonic thickness measurement
* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
2. Data information of ultrasonic thickness indicator
| Display | 4 Digit, 10 mm LCD |
| Operating Principle | Ultrasonic |
| Measuring Range (metric / Imperial) | 1.0~200 mm / 0.04~8 inch |
| Battery Indication | Low Battery Indication |
| Sound Velocity | 1000~9000 m/s |
| Lower Limit Steel Pipes | Φ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer |
| Calibration Block | Included |
| Resolution | 0.1 mm (TM-8812C 0.01 mm) |
| Accuracy | ± (0.5%n + 0.1) |
| Automatic memory material code and the value of sound velocity | |
| Power off | Auto Power off & Manual Power Off |
| Operating Conditions | Temperature: 0~40 °C, Humidity: < 85 %RH |
| Power Supply | 4 x 1.5 V AAA (UM-4) Battery |
| Dimensions | 120 x 62 x 30 mm |
| Weight | 164 g (Not Including Batteries) |
Standard Accessories:
1. Main Unit
2. 5MØ8 Standard Sensor
3. Coupling Agent
4. Carrying Case
5. Operating Manual
Optional Accessories:
1. 6M Φ6 mm thin Material Probe : Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C
2. 5M Φ12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C
3. Curved Surface Probe
4. USB, RS-232C data cable with software
5. Bluetooth data output with software
3. More relational product shows
There are a variety of ultrasonic thickness measurement for your choice ...
Within 15-45 Days after order confirmation, high quality goods will be shipped to your side......
We, CHINA HUNAN E&K TOOLS INC., are specializing in designing, manufacturing and exporting high quality measuring tools.
Established in 2000, E&K has been making great progress. In 2001, we’ve set up one factory in Hangzhou, manufacturing high quality digital caliper. In 2007,we owned another line producing stainless steel vernier
caliper in Jiangxi province.
Up to now, our products have been exported to many countries in South East Asia, America, and Europe…Quality ensured, cooperation guaranteed.Your choice of excellence is our fighting goal and everlasting innovation. Welcome to contact us.
Can we provide OEM/ ODM services? |
YES, product can be customized. |
How can we ensure the quality? |
1.Verified by CE,ISO 9001 ; 2.More than 20 years experiences in the field of tools industry; 3. Warranty ensured. |
What is the lead time of sample? |
After confirmation, sample will be shipped within 3-4 days by air or express. Sample fee is USD 40, and it can be returned after real order confirmed. |
What are the shipping terms? |
Generally speaking, goods are shipped by air, by sea, or by express. |
|
Please Attention: Due to PRC’s safety policy, for digital items, no battery contained in the item when shipped by air. | |
