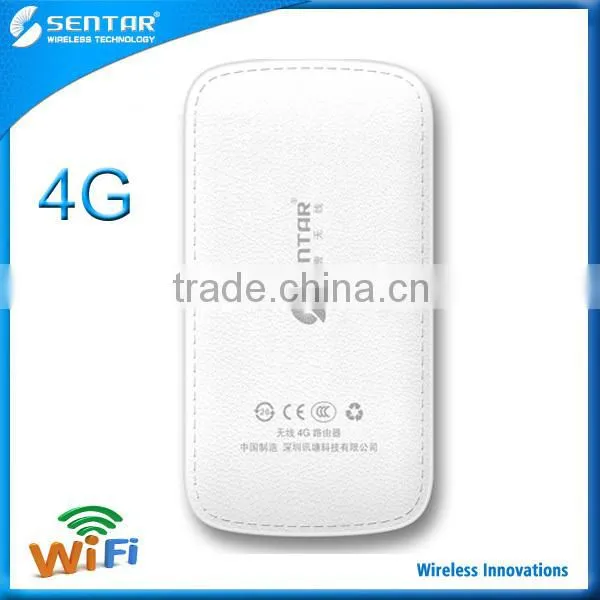

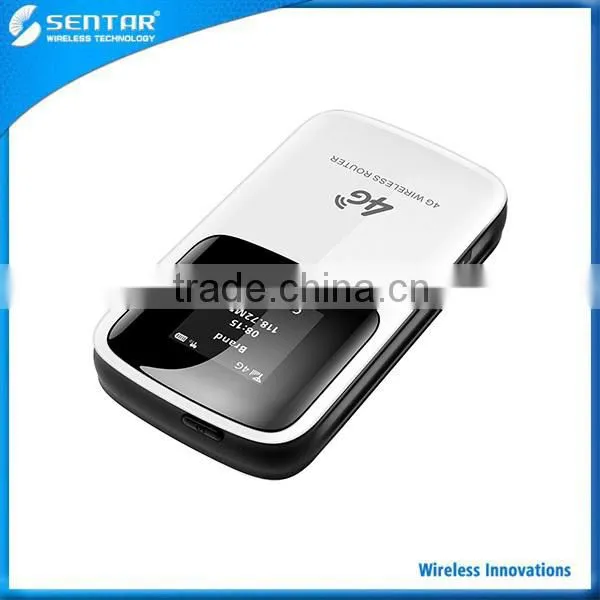

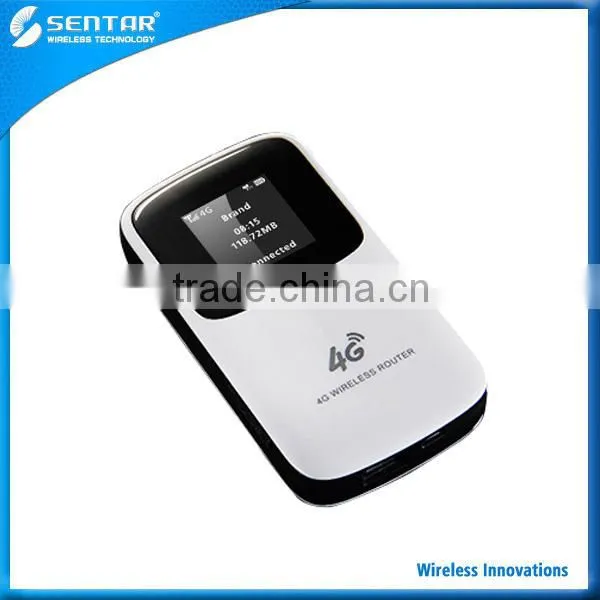

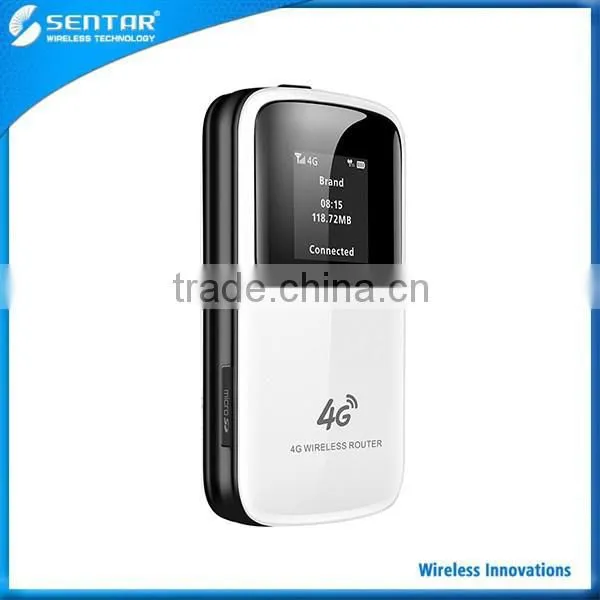

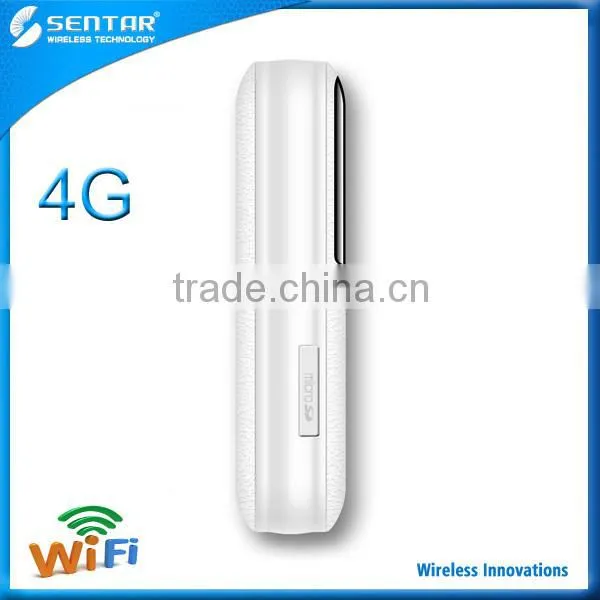

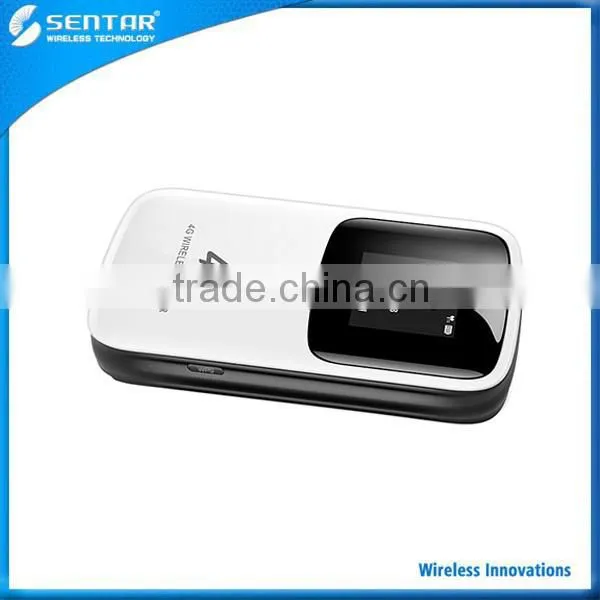

Mini Pocket 4g Modem LTE Wireless Router Wifi With SIM Card Slot

Name: Mini Pocket 4g Modem LTE Wireless Router Wifi With SIM Card Slot
Brand: Sentar, accept OEM
SKU: 128079351

US$ 39.5 - 48 MOQ: 200 Pieces

Key Specifications

Products Status:

Stock

Type:

Wireless

Application:

Other, Soho, Enterprise, Travel...

Shenzhen Sentar Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Type Wireless

Application Other, Soho, Enterprise, Travel...

Function Firewall, QoS, Other, Firewall, QoS, Wifi

LAN Ports Other

WAN Ports Other

Certification CCC, CE, RoHS

Brand Name Sentar, accept OEM

Model Number R90

Place of Origin Guangdong, China

Mini Pocket 4g Modem LTE Wireless Router Wifi With SIM Card Slot

Product Features:

Model	R90	4G LTE WIFI ROUTER
Hardware Info
Processor	Marvell 88MP1802 Processor
WiFi Chip	Marvell 88MP1802 Processor
TD-LTE	3GPP/3GPP2 Release9,Category 3,up to 68M DL and 17M bps UL@20MHz bandwidth
FDD LTE	3GPP/3GPP2 Release9,Category3,up to 100M DL and 50M bps UL@20MHz bandwidth
DC-HSPA+	3GPP/3GPP2 Release8, up to 42Mbps ,category 24,5.76M bps UL
HSPA+	3GPP/3GPP2 Release7, up to 14.4Mbps ,category 10,5.76M bps UL
HSPA	3GPP/3GPP2 Release6, up to 7.2M bps DL,category 7/8,5.76M bps UL
UMTS	3GPP Release4, up to 384 Kbps DL and UL
EDGE	3GPP Release4, Multislot class 12, up to 237 Kbps
GPRS	3GPP Release4, Multislot class 10, up to 85.6Kbps
Frequency	LTE TDD: B38(2600MHz)B39(1900MHz)B40(2300MHz)B41(2500MHz)	Power Class 3
	LTE FDD: B1(2100MHz) B3(1800MHz)B7(2600MHz)	Power Class 3
	UMTS: B1(2100MHz) B2(1900MHz) B5(850MHz)	Power Class 3
	EDGE/GSM: B2(1900MHz) B3(1800MHz) B8(900MHz)	EDGE:Power Class E2
Peak rate	LTE FDD : DL/UL 100 / 50 Mbps (Category 3)
System memory	NandFlash 1Gb+DDR 512Mb
LCD	1.4 inch	OLED
MicroSD card	Up to 32 GB
WIFI	802.11 b/g/n, up to 150Mbps	2*2 MIMO
Battery	5000mAh Lion	14 hours working time 500 hours standing time
PowerBank	Output: 5V 1A
Port	1 * MicroUSB and 1 * USB 1 * Standard USIM 1 * MicroSD
Antenna	External/Internal	MIMO Supported
Charger	Output : 5V DC±10%; Output : 1.5A~1.8A; Input : 100V~240V,50Hz~60Hz
Working Temperature	-10°C to 45°C
Working Humidity	5% - 65%
Storage Temperature	-30°C to 80°C
Storage Humidity	5% to 95%

Sofeware Info

OS	Win7, Windows XP, Vista, Mac OS
Language	Chinese&English etc.	Multi Languages supported
Sharing	Up to 10 sharings
SMS	Supported
Contact Book	Supported
APN Setting	Supported
WIFI Settings	Supported
Device Settings	Supported
Routing Settings	Supported
Firewall Settings	Supported
Certifications
	CCC, CE, RoHS	Up to customer
Else
Size	110mm * 60mm * 21mm	For reference,to be decided
Weight	150g
Standby Time	Up to 500 Hours	Finally decided by Battery
Working Time	Up to 14 Hours	Finally decided by Battery
We have the pleasure in offering the undermentioned articles based on term and conditions specified below:
Payment term	Down payment 30%,the balance is by T/T before shipment
FOB Port	FOB SHENZHEN
Lead time	4 weeks
Minimum Qty	500 pcs
