Portable 4G Lte Wireless Router With Sim Card Slot and PowerBank Function

Shenzhen Sentar Technology Co., Ltd.
Portable 4G Lte Wireless Router With Sim Card Slot and PowerBank Function thumbnail-1
Portable 4G Lte Wireless Router With Sim Card Slot and PowerBank Function photo-1
US$ 40 - 70 MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Wireless
Application:
Other
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Wireless
Application Other
Function Firewall, QoS, VPN, Other
LAN Ports Other
WAN Ports Other
Certification CE, Rohs
Brand Name Sentar
Model Number R90
Place of Origin China

Specifications

TD-LTE: B38/B39/B40/B41
FDD-LTE: B1/B7
Qualcomm MDM9215 chipset
5000mAh Battery

Portable 4G Lte Wireless Router with Sim Card Slot











Specifications
R90_A4G LTE ROUTER
Hardware Info
ProcessorQualcomm 28nm       MDM9215
WiFi ChipAtheros(Qualcomm)   AR6003G
TD-LTE3GPP/3GPP2 Release9, Category 3,up to 68M DL and 17M bps UL@20MHz bandwidth
FDD LTE3GPP/3GPP2 Release9, Category3,up to 100M DL and 50M bps UL@20MHz bandwidth
DC-HPSA+3GPP/3GPP2 Release8, up to 42Mbps ,category 24,5.76M bps UL
HPSA+3GPP/3GPP2 Release7, up to 14.4Mbps ,category 10,5.76M bps UL
HSPA3GPP/3GPP2 Release6, up to 7.2M bps DL,category 7/8,5.76M bps UL
UMTS3GPP Release4, up to 384 Kbps DL and UL
EDGE3GPP Release4, Multislot class 12, up to 237 Kbps
GPRS3GPP Release4, Multislot class 10, up to 85.6Kbps
FrequencyLTE TDD: B38(2600MHz)B39(1900MHz)B40(2300MHz)B41(2500MHz)Power Class 3
LTE FDD: B1(2100MHz) B3(1800MHz) B7(2600MHz)Power Class 3
UMTS:   B1(2100MHz) B2(1900MHZ) B5(850MHZ)Power Class 3
EDGE/GSM: B2(1900MHz) B3(1800MHz) B8(900MHz)EDGE:Power Class E2
Peak rateLTE FDD : DL/UL 100 / 50 Mbps (Category 3)
System memoryNandFlash 1Gb+DDR 512Mb
LCD1.4 inchOLED
Micro-SD cardUp to 32 GB
WIFI   802.11 b/g/n, up to 150Mbps2*2 MIMO
Battery5000mAh Lion14 hrs working time 500 hrs standing time
Port1 * MicroUSB and 1 * USB 1 * Standard USIM 1 * MicroSD
AntennaExternal/InternalMIMO Supported
PowerBankOutput: 5V 1A
ChargerOutput : 5V DC±10%; Output : 1.5A~1.8A; Input : 100V~240V,50Hz~60Hz
Working Temperature-10°C to 45°C
Working Humidity5% - 65%
Storage Temperature -30°C to 80°C
Storage Humidity5% to 95%
Software Info
OSWin7, Windows XP, Vista, Mac OS
LanguageChinese & English etc.Multi Languages
SharingUp to 10 sharings
SMSSupported
Contact BookSupported
APN SettingSupported
WIFI SettingsSupported
Device SettingsSupported
Routing SettingsSupported
Firewall SettingsSupported
Certification
 CE GrantedUp to customer
Others
Size110mm * 60mm * 21mm
Weight150g
Standby TimeUp to 500 Hours
Working TimeUp to 14 Hours
We have the pleasure in offering the undermentioned articles based on term and   conditions specified below:
Payment termDown payment 30%,the balance is by T/T before shipment
FOB PortFOB SHENZHEN
Lead time15days
Validity15days
Minimum Qty 500 pcs



Similar Products

Portable 4G Lte Wireless Router with Sim Card Slot and PowerBank FunctionPortable 4G Lte Wireless Router with Sim Card Slot and PowerBank FunctionPortable 4G Lte Wireless Router with Sim Card Slot and PowerBank Function

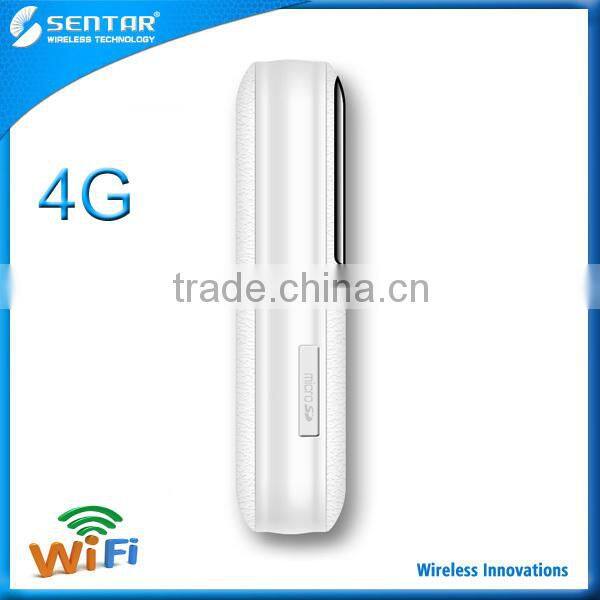

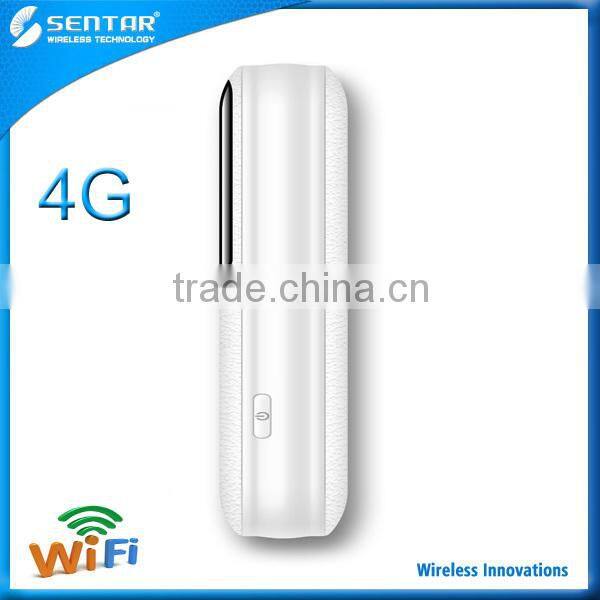

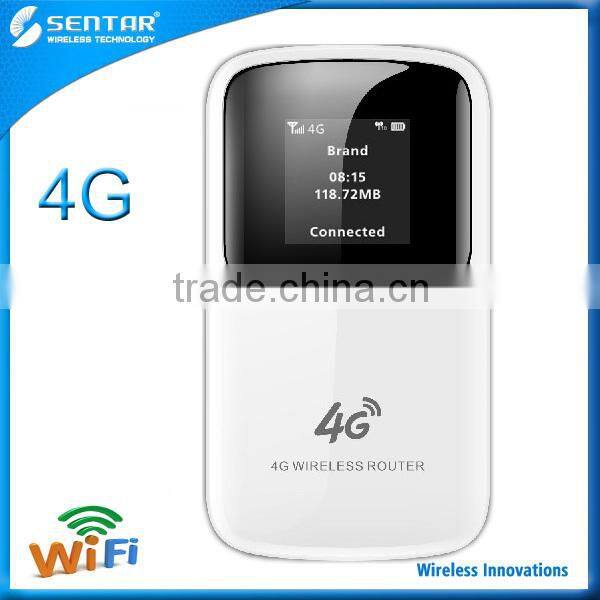

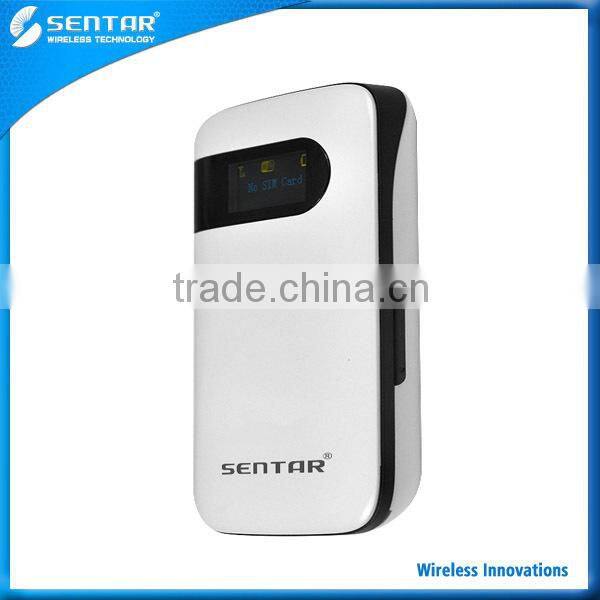

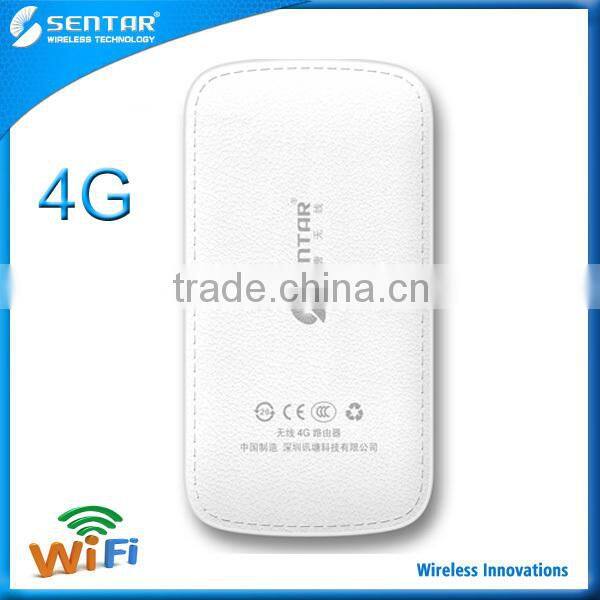

Product Photos



Portable 4G Lte Wireless Router with Sim Card Slot and PowerBank FunctionPortable 4G Lte Wireless Router with Sim Card Slot and PowerBank FunctionPortable 4G Lte Wireless Router with Sim Card Slot and PowerBank FunctionPortable 4G Lte Wireless Router with Sim Card Slot and PowerBank Function

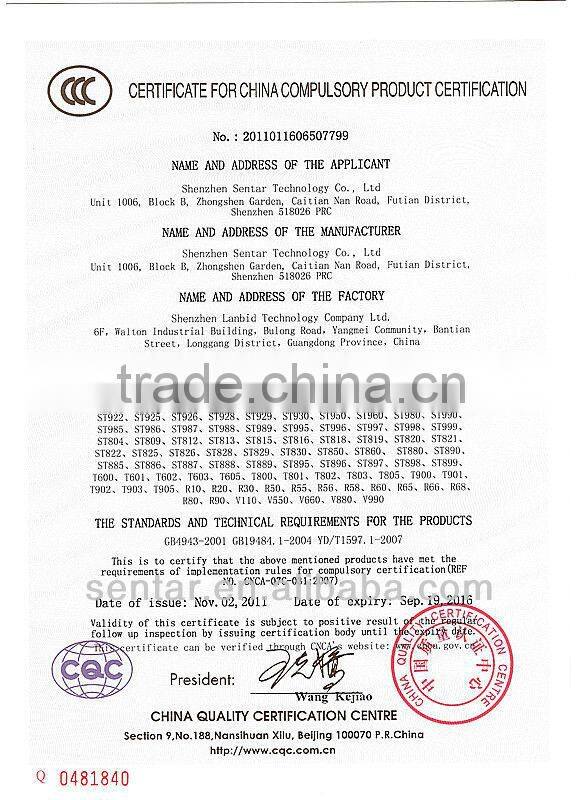

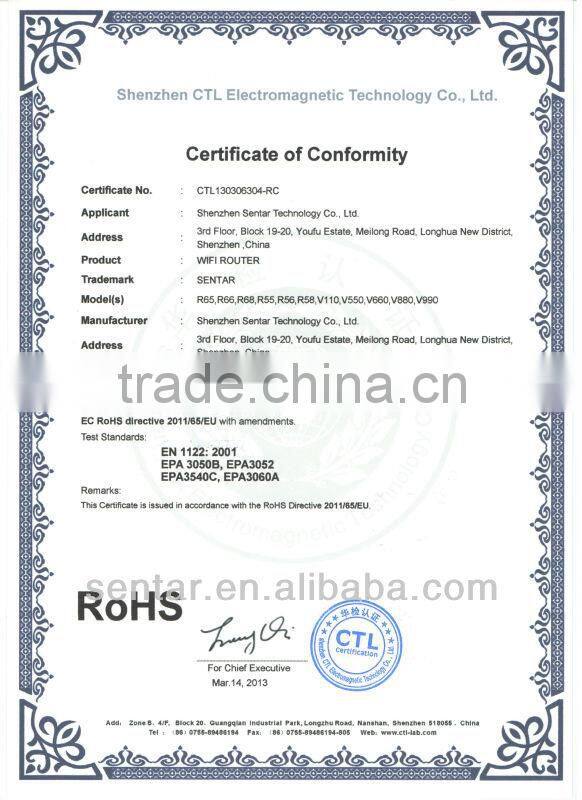

Certifications:



Portable 4G Lte Wireless Router with Sim Card Slot and PowerBank FunctionPortable 4G Lte Wireless Router with Sim Card Slot and PowerBank Function

Portable 4G Lte Wireless Router with Sim Card Slot and PowerBank Function







Choose sentarwireless, choose win-win business!!!



We are the most professional OEM/ODM manufactory in 3G products field who has powerful R&D group. we sentarwireless can customize OEM packing,logo printing as well as different language web interface baced on your requirements. What's important,  we will guarantee you the most reasonable price with best professional free support services. In a word, choose sentar, choose win-win business!!!
