Help Center3g Router With Rj45 Port
US$ 25 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Wireless
Application:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3g Wifi Router With Sim Card Slot Unlocked 3g Router Sim Card Access for Mobile Phone IphoneUS$ 21 - 28MOQ: 10 Pieces -
New Hot Products 2016 3G Router Sim Card Slot Wifi Router 3G USB Wifi Router With SimUS$ 1 - 26MOQ: 1 Piece
-
7.2Mbps Download Speed Sentar R80 Wireless 3G Wifi Router With SIM Card SlotUS$ 1 - 21MOQ: 1 Piece
-
4G Wireless Wifi Router Setup Wireless Router 4g Wifi Router With Sim Card SlotUS$ 65 - 83MOQ: 1 Piece
-
Original Unlock LTE FDD 150Mbps Sentar R95 Portable 4G LTE Wireless RouterUS$ 48 - 58MOQ: 1 Piece
Products Status
Stock
Type
Wireless
Application
Other
LAN Ports
Other
WAN Ports
Other
Certification
CE & RTTE & LVD & RF
Brand Name
Sentar
Model Number
R68
Place of Origin
China
3g router with rj45 port
Product Spec:
| Platform | Ram | 32M (Brand ESMT) |
| Rom | 1G+512M DDR 16bit (Brand Hynix) | |
| Chipset: | Qualcomm Chipset MDM6200 (3G) RALINK Chipset RT5350 (Wifi) |
|
| Encryption | WEP / WPA / WPA2 | |
| Wifi | 802.11b / 802.11g/802.11n | |
| Wi-Fi Transfer rate | up to 150Mbps | |
| Technical Standard (Transfer rate) |
EVDO | Rev.B 14.7Mbps/Rev.A 3.1Mbps 800Mhz network |
| HSUPA | 3GPP R6 DL 14.4Mbps UL 5.76Mbps (DL means Download ) (UL means Upload ) | |
| HSDPA | 3GPP R5 DL 7.2Mbps UL 384kbps | |
| UMTS | 3GPP R5 DL 384kbps DL 384kbps | |
| EDGE | EGPRS Class12 DL 237kbps UL 118Kbps | |
| GPRS | GPRS Class12 DL 85.6kbps UL 42.8kbps | |
| Frequency Band | GSM/GPRS/EDGE | 850Mhz/900Mhz/1800Mhz/1900MHz(optional) |
| UMTS | 2100Mhz(default)1900Mhz/ 850MHz(optional) | |
| Power Class | WCDMA | Power Class 3(+24dBm) |
| GPRS/GSM 900 | Power Class 4(+33dBm) | |
| GPRS/GSM 1800 | Power Class 1(+30dBm) | |
| EDGE 900 | Power Class E2(+27dBm) | |
| EDGE 1800 | Power Class E2(+26dBm) | |
| Conduction Rx sensitivity | EGSM/DCS/PCS | < -106dBm |
| UMTS | < -106dBm | |
| External Interface | UMTS/GSM Antenna | Internal Antenna |
| Battery | BP-5L,3.7V,3000mAh | |
| USB Type | USB2.0 connection and charger | |
| Power Mode | Powered via the USB interface | |
| SIM/USIM Card | standard 6 PIN SIM card interface, compliant with 3GPP 31.101 and 31.102 | |
| AT Interface | 3GPP TS 27.005/3GPP TS27.007 supported | |
| Wifi Routing | Support Standard | IEEE802.11b/g(2.4Ghz) |
| Support Band | 2.412Ghz~2.484Ghz | |
| User capacity | Support up to five users |
|
| Router setting | Support SSID,Gateway,DHCP,MAC,APN setting | |
| Router security | Support WIFI Security: OPEN-WEP, SHARE-WEP,WPA-TKIP,WPA2-AES |
|
| Main Features | Available Colors | Black, other colors upon customer requirements |
| Dimension (mm) | 93mm×55mm×12mm | |
| Weight (g) | 72g | |
| Visual Indicator(LED) | 3G,Power,WIFI | |
| Main Software Functions | PIN1 | Supported,enable/disable/modify |
| Languages Supported | English, more languages could be supported upon customer requirements | |
| SMS | Supported | |
| PhoneBook | Supported | |
| Operate System Supported | Win2000/Win2003/ XP/VISTA 32bit/64bit , MAC OS | |
| PhoneBook | new contacts | Supported |
| edit contacts | Supported | |
| delete contacts | Supported | |
| SMS | Group messages | Supported |
| new SMS | Supported | |
| send SMS | Supported | |
| save SMS to drafts | Supported | |
| delete SMS | Supported | |
| Support OS | Windows | Win8/Win7/WinXP/Vista/Win2000 |
| MAC OS | Supported | |
| ANDROID | Supported | |
| WEB | Operation Browser | Internet Explorer/Mozilla Firefox/Google Chrome/Safari |
| Certification | ROHS | compliant with ROHS |
| CE | compliant with CE | |
| Microsoft WHQL | Supported | |
| Other | Could be supported upon customer requirements |
Warranty & Maintenance:
We provide 12 mths maintenance warranties. Items can be replaced during the first month or maintained for the 1st year.

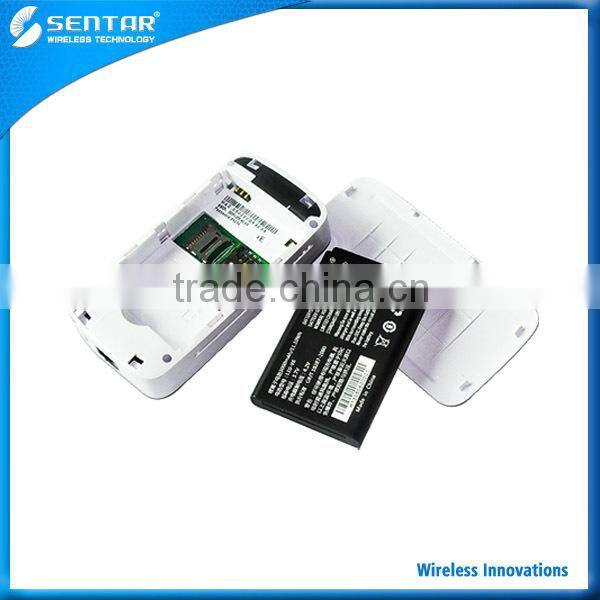

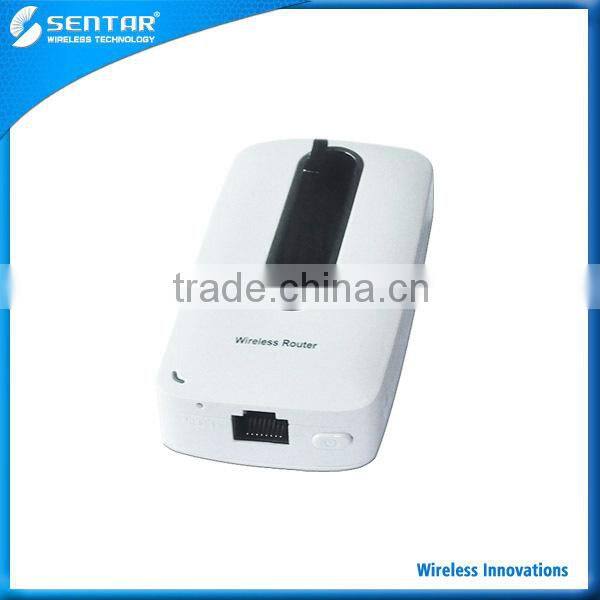

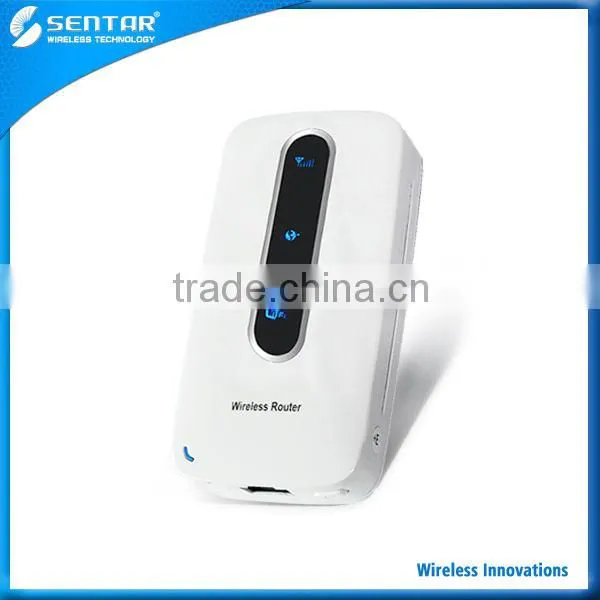

Product pictures:

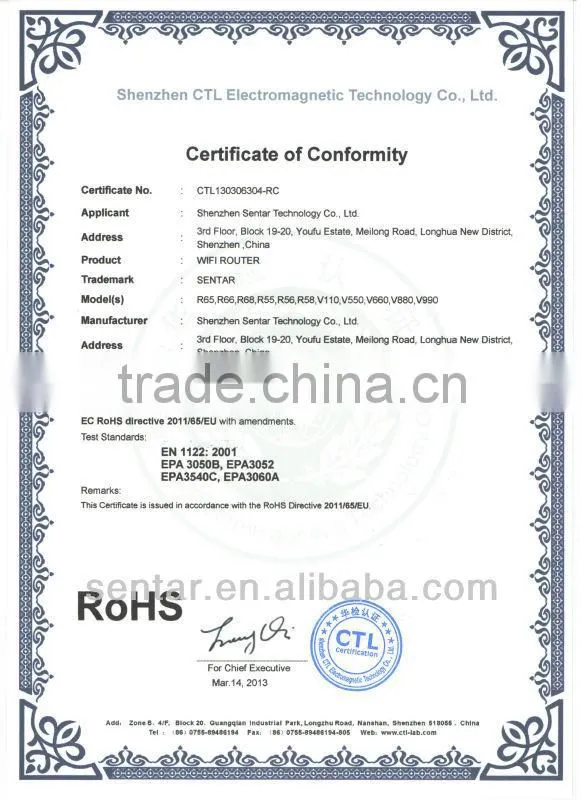

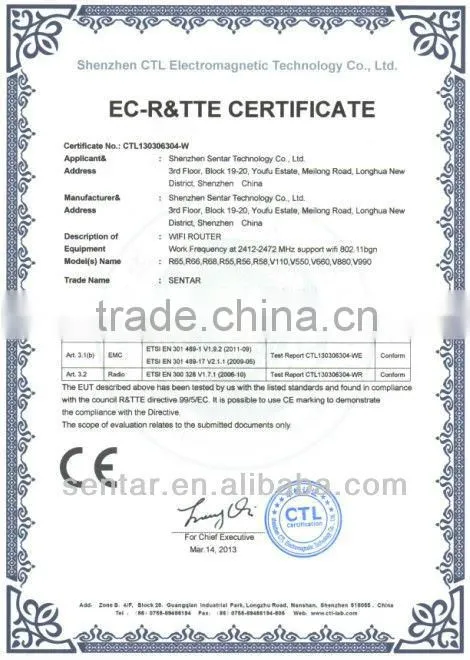

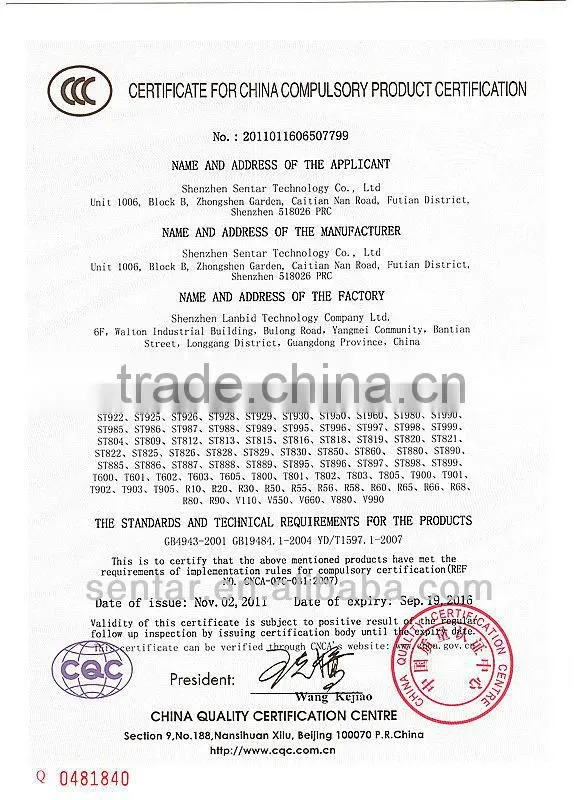

Certifications:

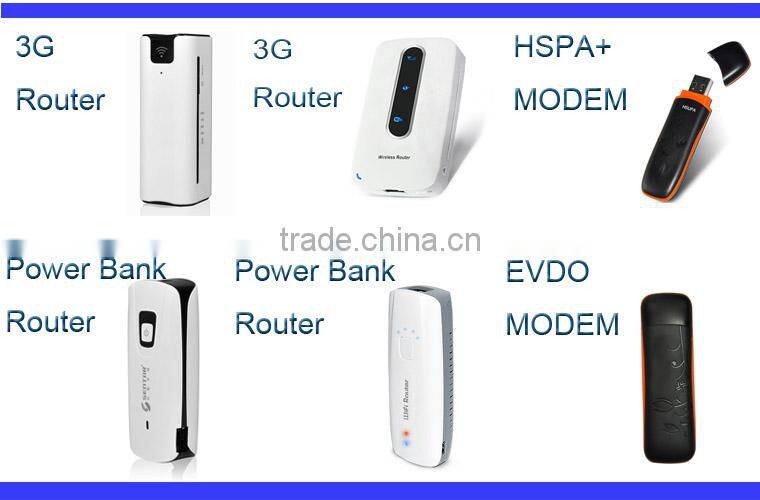

Click next pic to get more info of our products :
Choose sentarwireless, choose win-win business!!!
We are the most professional OEM/ODM manufactory in 3G products field who has powerful R&D group. we sentarwireless can customize OEM packing,logo printing as well as different language web interface baced on your requirements. What's important, we will guarantee you the most reasonable price with best professional free support services. In a word, choose sentar, choose win-win business!!!
We are looking forward to establishing long-term business relationship with your company :)
