Description:

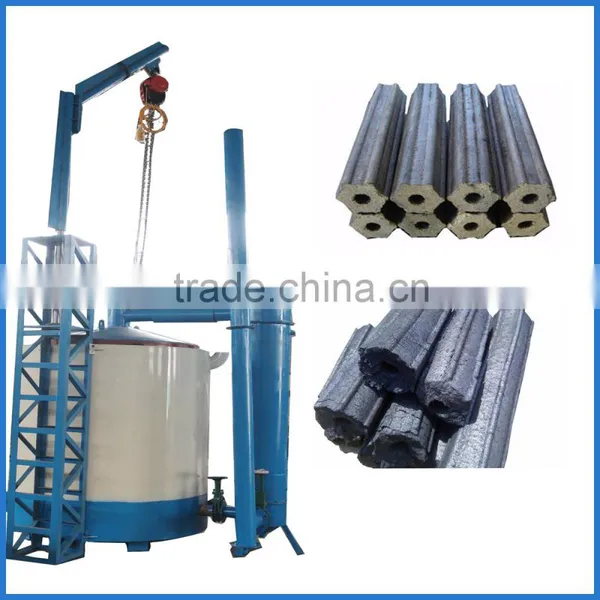

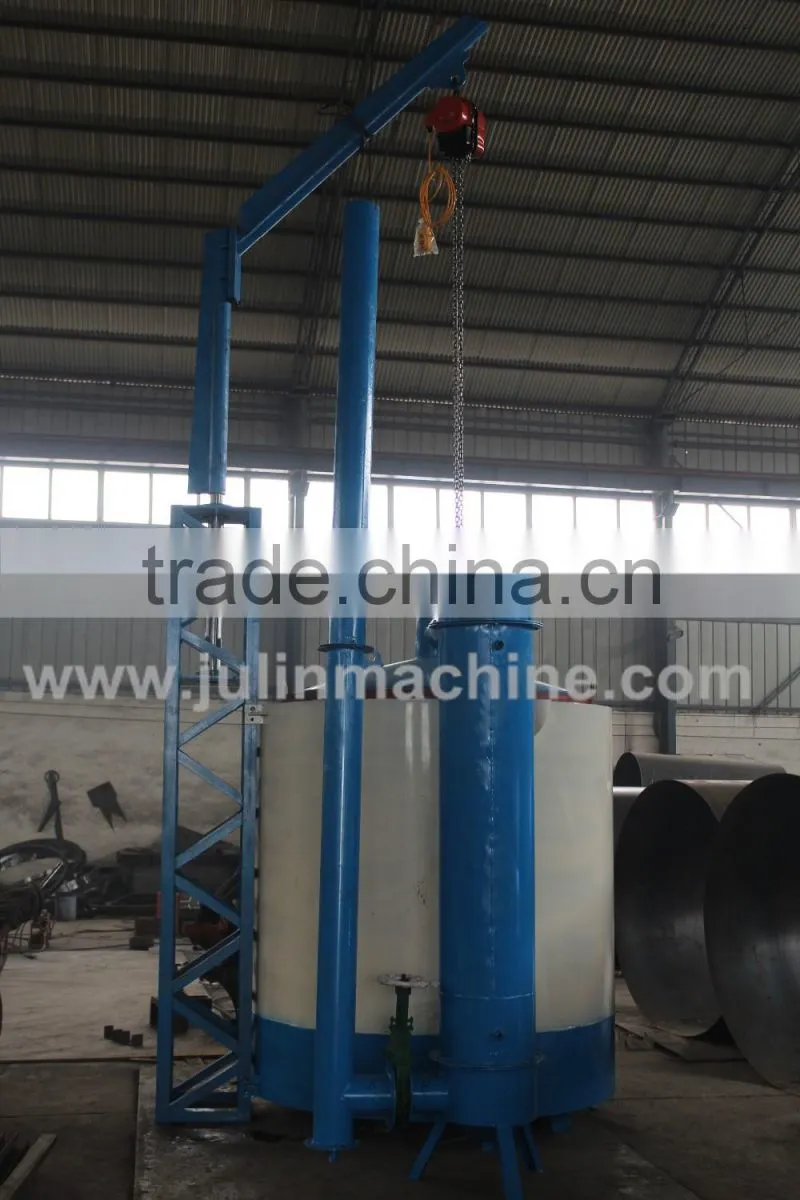

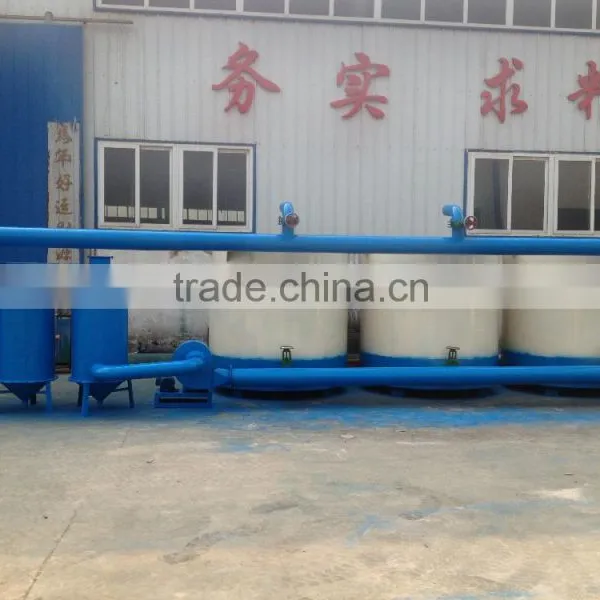

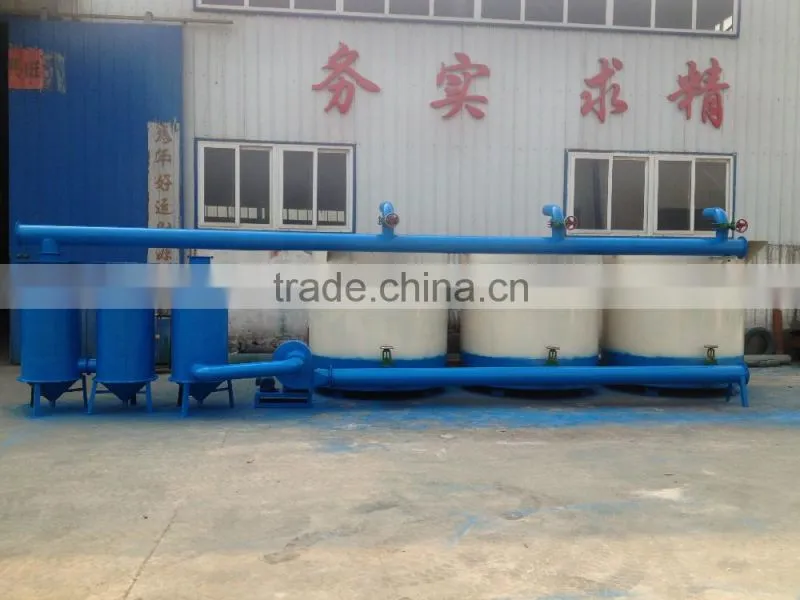

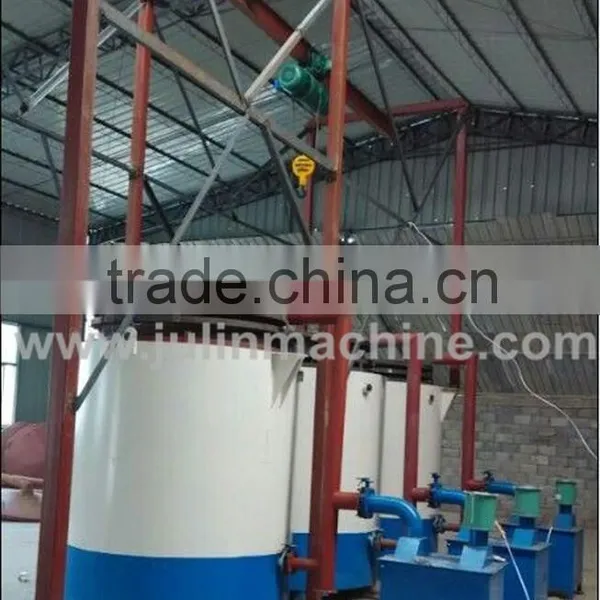

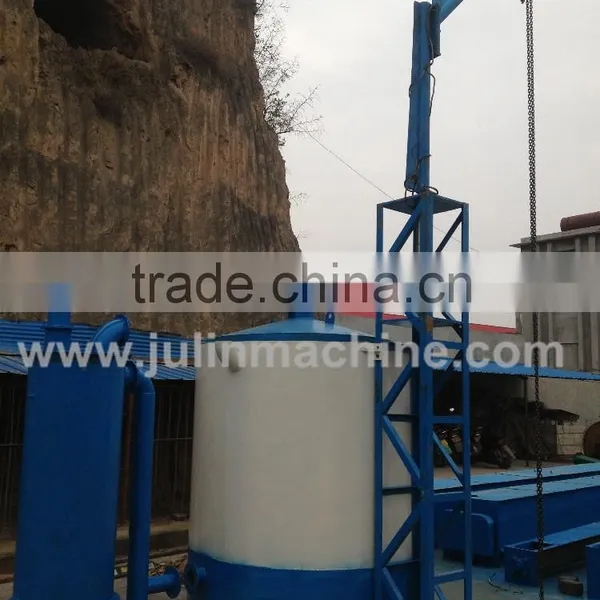

Charcoal carbonization stove is also called carbonization kiln retort. It is cylindrical in shape. Our charcoal carbonization furnace are available from unit to combined units according to capacity. It mainly consists of one furnace body, three inner containers and three lids. One purification system and one electric chain hoist are together used as a complete set. The carbonization time is about 8 hours and 2 tons of feedstock can produce 1 ton of charcoal.
Carbonization furnace |
Description |
Features |
|
|
charcoal carbonization stove Stoves Product name charcoal carbonization stove
|
1. Model: THL 2. Type: Air Flow 3. Power: Pump 0.75+0.75 KW Blower 2.2 KW Electric hoist 4 KW 4. Furnace dimension: 1.85*1.85*2.17m 5. Weight: 5000kg 6. Capacity: 3 tons/24 hours 7. Carbonization time: About 8 hours per container 8. Input: 2 tons of feedstock can produce 1 ton of charcoal. |
1. Suitable for carbonizing wood log, biomass extrusion briquettes, agricultural residues, coconut shell, nut shell, bamboo, etc. 2. Available from unit to combined units. 3. Fixed with purification system. 4. It mainly consists of one furnace body, three inner containers and three lids. |
|
wood carbonization furnace Stoves Key word charcoal carbonization stove, wood carbonization furnace
|
carbonizing machine for sawdust Stoves Capacity 3 tons/24 hours
|
||
charcoal carbonization stove Stoves Suitable for Making biomass charcoal.
| |||
Working Principle | |
1. |

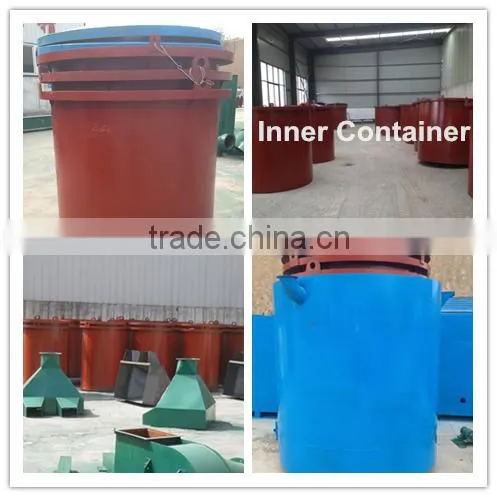

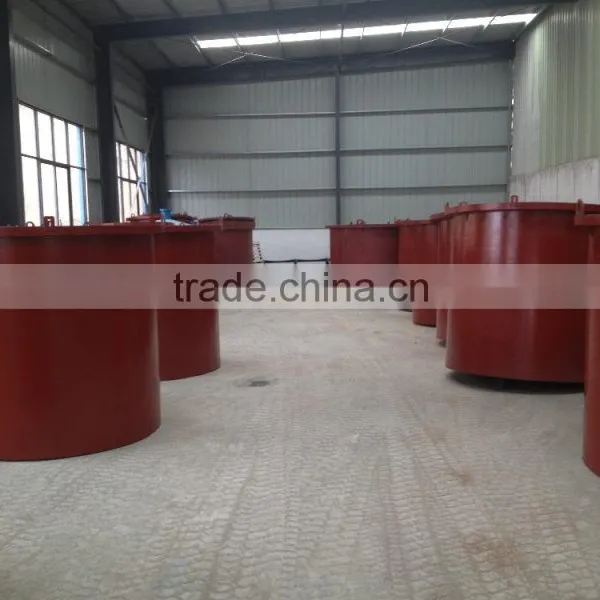

Charcoal carbonization stove is efficient and low-consumption. It can greatly improve carbonizing rate from 80% to 99%. The carbonization stove has an internal combustor (inner container) which hangs from the lid and provides heat to convert the feedstock to charcoal. When the first inner container finishes the carbonization process, it can be hoisted out of the charcoal carbonization stove and cooled on the ground while the second inner container is hoisted into the kiln. In this way, three inner containers work continuously. It takes about 8 hours for a batch to be carbonized depending on the moisture content, type and size of the feedstock. |
2. |
Charcoal carbonization stove adopts off-gas recycling and re-burning technology to decompose the feedstock into combustible gases, wood tar and charcoal. Charcoal carbonization stove runs on a two stage cycle. First the feedstock is dried, and then it is charred. During the drying stage firewood is burned in the firebox to provide heat. Once combustible gases are released, they can burn in the inner container to maintain suitable charring temperatures. These gases contribute to making a high temperature and the feedstock is distilled into charcoal. |
3. |
The gases will clog the pipes if not properly handled or if the pipes are not well insulated. So purification is necessary. The by-product is recovered from the pyrolysis oil, pyroligneous acid and tar. |
4. |
The charcoal carbonization stove does not need electricity to run. It uses a blower (provided with the stove) to supply air to the internal combustor. Fuel: 20-50kg firewood or 15-30kg natural gas. |
wood carbonization furnace Stoves Shape cylindrical
carbonizing machine for sawdust Stoves Carbonization time About 8 hours
Common raw materials of making charcoal | |
Wood logs, branch, lump, sawdust, rice husk, peanut shell, sugarcane bagasse, olive residue, coco shell, bamboo, straw and corncob, etc. | |
Charcoal Shape | |

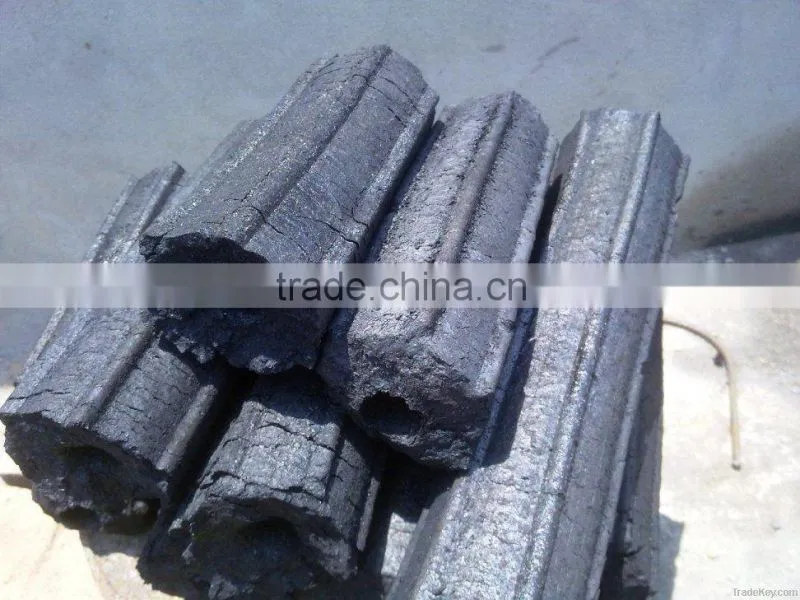

Hexagonal sawdust briquette charcoal |

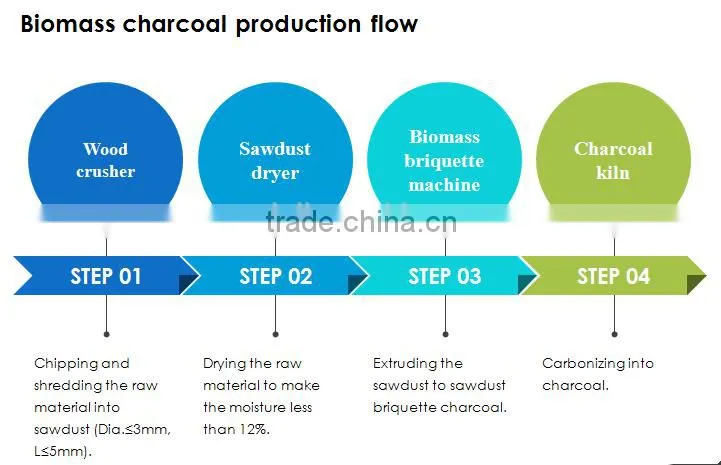

Wood crusher→ Sawdust dryer→ Biomass briquette machine→ Charcoal carbonization stove→ Charcoal. |
Wood charcoal |
Charcoal carbonization stove→ Charcoal. |
Ball or pillow shaped charcoal |
Raw materials→ Charcoal carbonization stove→ Charcoal→ Charcoal pulverizer→ Mixer→ Forming machine→ Final product. |
Hookah charcoal tablet | |
Extruded charcoal stick | |
Extruded charcoal pellet | |
Remark:
Different raw materials, charcoal shape and output per day needs different types of machines. We will be appreciated if you would check it out and give us some details that it is important for us to carry out the work.
charcoal carbonization stove Stoves Type Air flow
wood carbonization furnace Stoves
