Home > Products > Hikvision Speed Dome IP PTZ Camera > New Products DS-2DF8336IV-AEL(W) 3.0MP Outdoor Auto Tracking Hikvision PTZ

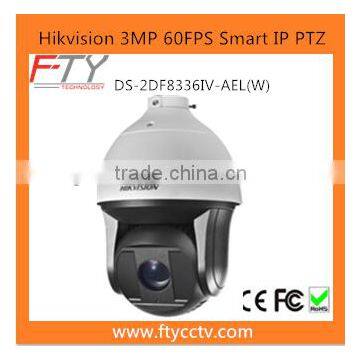

New Products DS-2DF8336IV-AEL(W) 3.0MP Outdoor Auto Tracking Hikvision PTZ

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 8800 Set / Sets per Month
Port EXW Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Hikvision
Model Number	DS-2DF8336IV-AEL(W)	Type	IP Camera
Style	Dome Camera	Sensor	CMOS
Technology	Pan / Tilt / Zoom	Special Features	Waterproof / Weatherproof

Product Description

New Products DS-2DF8336IV-AEL(W) 3.0MP Outdoor Auto Tracking Hikvision PTZ

DS-2DF8336IV-AEL(W)

Product Description

HikvisionDS-2DF8336IV-AEL(W) smart PTZ Dome Cameras are able to capture high quality images of fast moving objects with its high frame rate technology(up to 60fps@3MP). Embedded with 1/3’’ progressive scan CMOS chip makes true WDR (120dB) and 2MP real-time resolution possible. With the 36X optical zoom Day/Night lens, the camera offers more details over expansive areas.

DS-2DF8336V-AEL(W) smart PTZ dome cameras also features a wide range of smart functions, including face detection, intrusion detection, line crossing detection and audio exception, benefitting users with great improvement on security efficiency, more importantly, with key events / objects being recorded for further forensic needs. These features, combined with smart tracking, which enables the camera to detect any progressively moving object and follow it within the camera’s area of coverage without fault. Smart Defog and HLC/BLC are further supported to improve image quality in challenging conditions.

• 1/3” HD CMOS sensor

• 3MP(2048*1536) Full HD

• High frame rate, up to 60fps@3MP

• 36X Optical Zoom

• 120db True WDR

• Smart Tracking

• Smart Detection

• Defog

• 200m IR distance

• Optional wiper(-W)

• Hi-PoE / 24VAC power supply

Specification

Lens
Image Sensor:	\|	1/3" Progressive Scan CMOS
Effective Pixels:	\|	2048(H)x1536(V)
Signal System:	\|	PAL/NTSC
Minimum Illumination:	\|	F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux , 0 lux with IR
White Balance:	\|	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:	\|	Auto/Manual
S/N Ratio:	\|	≥ 55dB
BLC:	\|	ON/OFF
HLC:	\|	Support
Smart defog:	\|	Support
WDR:	\|	120dB
Shutter Time:	\|	50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
Day& Night:	\|	ICR
Digital Zoom:	\|	16X
Privacy Masking:	\|	24 privacy masks programmable
Auto Focus:	\|	Auto / Semi-automatic / Manual
Focal Length:	\|	4.5-162mm, 36x
Zoom Speed:	\|	Approx.4.5s(Optical Wide-Tele)
Angle of View:	\|	60.6-3.68 degree (Wide-Tele)
Minimum Working Distance:	\|	10-1500mm(Wide-Tele)
Aperture Range:	\|	F1.6~F4.4
Pan & Tilt
Pan Range:	\|	360°endless
Pan Speed:	\|	Pan Manual Speed: 0.1°~160°/s, Pan Preset Speed: 240°/s
Tilt Range:	\|	-20°~90°(Auto Flip)
Tilt Speed:	\|	Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 200°/s
Proportional Zoom:	\|	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:	\|	300
Patrol:	\|	16 patrols, up to 32 presets per patrol
Pattern:	\|	10 patterns, with the recording time not less than 10 minutes per pattern
Power loss recovery:	\|	Support
Park Action:	\|	Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display:	\|	ON/OFF
Freeze Frame:	\|	Support
Smart-tracking:	\|	Manual/ Panorama/ Intrusion trigger/ Line crossing trigger/ Region entrance trigger/ Region exiting trigger Smart tracking when patrol between multiple scenarios
Wiper:	\|	Optional
Infrared
IR irradiation distance:	\|	200m
IR irradiation angle:	\|	Adjustable by zoom
Alarm
Alarm Input:	\|	7 Inputs
Alarm Output:	\|	2
Alarm Actions:	\|	Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client
Input & Output
Monitor Output:	\|	1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
Audio Input:	\|	1 Mic in/Line in interface Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output:	\|	1 Audio output interface Line level, impedance: 600Ω
Network
Ethernet:	\|	10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:	\|	2048×1536
Main Stream:	\|	50Hz: 25fps(2048×1536), 25fps(1920×1080), 25fps (1280×720) / 50fps(2048×1536), 50fps(1920×1080) 60Hz: 30fps(2048×1536), 30fps(1920×1080), 30fps (1280×720) / 60fps(2048×1536), 60fps(1920×1080)
Sub Stream:	\|	50Hz: 25fps(704×576, 352×288, 176×144) 60Hz: 30fps(704×480, 352×240, 176×120)
Third Stream:	\|	50Hz:25fps(2048×1536), 25fps(1920×1080), 25fps (1280×720), 25fps(704×576), 25fps (352×288), 25fps (176×144) 60Hz: 30fps(2048×1536), 30fps(1920×1080), 30fps (1280×720), 30fps(704×480), 30fps (352×240), 30fps (176×120)
Image Compression:	\|	H.264 / MJPEG
ROI encoding:	\|	Support 6 areas with adjustable levels
Audio Compression:	\|	G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols:	\|	IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users:	\|	Up to 20 users
Three-Stream:	\|	Support
Mini SD Card:	\|	Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level:	\|	Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures:	\|	User authentication (ID and PW), Host authentication (MAC address) IP address filtering
Client GUI
Camera Control:	\|	Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display:	\|	Time: Week: Date, 6 formats on the Client
Client:	\|	Support iVMS-4200
Web Browser:	\|	IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language
General
RS-485 Protocols:	\|	HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language:	\|	English
Power Supply:	\|	24 VAC & Hi-PoE
Power Consumption:	\|	Max.60W
Working Temperature/Humidity:	\|	-40°C ~ 65°C (-40°F ~ 149°F)
Protection Level:	\|	IP66, IK10, TVS 6,000V lightning protection, surge protection and voltage transient protection
Mounting:	\|	Various mounting modes optional
Dimensions:	\|	Φ266.6(mm)×365.2(mm)
Weight (approx.):	\|	8kg (approx.)
Mount Option:	\|	Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ

Available Models

DS-2DF8336IV-AEL

DS-2DF8336IV-AELW
