2016 Cheap DS-2DE4220IW-DE 1080P H.264 PoE Hikvision PTZ Camera
2016 Cheap DS-2DE4220IW-DE 1080P H.264 PoE Hikvision PTZ Camera
DS-2DE4220IW-DE
Key Features
> 1/2.8" Progressive Scan CMOS
> 1920 x 1080
> 20X Optical Zoom
> DWDR
> 3D intelligent positioning function
> Support cloud P2P
> Up to 100m IR distance
> 12VDC & POE(802.3at)
Function Description
Basic function
.High performance sensor, up to 1920 x 1080 resolution
.±0.1° Preset Accuracy
.ONVIF(Open Network Video Interface Forum), CGI(Common Gateway Interface), PSIA(Physical Security Interoperability Alliance), to ensure greater interoperability between different platforms and compatibility
.3D intelligent positioning function
.Power-off memory function: restore PTZ & Lens status after reboot
.IP66 standard
.Support cloud P2P
Functions
.Detections: intrusion detection, line crossing detection, audio exception, motion detection
.Recording: edge recording, support smart search in smart NVR
.Support low bit rate, ROI
Camera function
.Auto iris, auto focus, auto white balance, backlight compensation and auto day & night switch
.Min. Illumination: 0.05Lux@(F1.6,AGC ON)(Color), 0.01Lux@(F1.6,AGC ON)(B/W), 0 Lux with IR
.Support 8 privacy masks
PTZ functions
.360° endless pan range and -15°-90° tilt range
.80°/s Pan Preset Speed and 80°/s Tilt Preset Speed
.0.1°-80°/s Manual Pan Speed and 0.1°-80°/s Manual Tilt Speed
.300 presets programmable;
.8 patrols, up to 32 presets per patrol
Network function
.H.264/ MJPEG video compression and the latest processing chip and platform
.Built-in Web server
.Micro SD card local storage, up to 128GB
.Support up to 8 NAS storage; Transmit the videos from SD card to the NAS after network resumed
.HTTPS encryption and IEEE 802.1x port-based network access control
.Support three streams; H.264/MJPEG video compression; Basic and advanced video configuration; Real time video at 1080P or 720P
.Multiple network protocols supported: IPv4/IPv6, TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS
.1 audio input and 1 audio output.
IR function
.0 Lux minimum illumination
.Up to 100m IR distance
.IR light MTBF reaching up to 30,000 hours
.Smart IR mode
| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/2.8" Progressive Scan CMOS |
| Effective Pixels: | | | 1920(H)x1080(V) |
| Signal System: | | | PAL/NTSC |
| Minimum Illumination: | | | F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux, 0 lux with IR |
| White Balance: | | | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC: | | | Auto/Manual |
| BLC: | | | ON/OFF |
| HLC: | | | Support |
| WDR: | | | Support |
| Shutter Time: | | | 1-1/10,000s |
| Day& Night: | | | ICR |
| Digital Zoom: | | | 16X |
| Privacy Masking: | | | 8 privacy masks programmable |
| Auto Focus: | | | Auto / Semi-automatic / Manual |
| Lens | ||
| Focal Length: | | | 4.7-94.0mm, 20x |
| Zoom Speed: | | | Approx.3s(Optical Wide~Tele) |
| Angle of View: | | | 58.3-3.2 degree (Wide~Tele) |
| Minimum Working Distance: | | | 10~1,000mm(Wide~Tele) |
| Aperture Range: | | | F1.6~F3.5 |
| Pan & Tilt | ||
| Pan Range: | | | 360°endless |
| Pan Speed: | | | Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s |
| Tilt Range: | | | -15°-90° (Auto Flip ) |
| Tilt Speed: | | | Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s |
| Proportional Zoom: | | | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset: | | | 300 |
| Patrol: | | | 8 patrols, up to 32 presets per patrol |
| Power loss recovery: | | | Support |
| Park Action: | | | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display: | | | ON/OFF |
| Infrared | ||
| IR irradiation distance: | | | 100m |
| IR irradiation angle: | | | Adjustable by zoom |
| Network | ||
| Ethernet: | | | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution: | | | 1920×1080 |
| Frame Rate: | | | 50Hz:25fps(1920×1080), 25fps (1280×720), 60Hz:30fps(1920×1080), 30fps (1280×720) |
| Main Stream: | | | 50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ; 60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720) |
| Sub Stream: | | | 50Hz:25fps(704×576), 25fps(640×576), 25fps(320×288) 60Hz:30fps(704×480), 30fps(640×480), 30fps(320×240) |
| Third Stream: | | | 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) |
| Image Compression: | | | H.264 / MJPEG |
| ROI encoding: | | | Support 4 areas with adjustable levels |
| Protocols: | | | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| No. of Simultaneous Users: | | | Up to 20 users |
| Dual Stream: | | | Support |
| Mini SD Card: | | | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording |
| User/Host Level: | | | Up to 32 users,3 Levels: Administrator, Operator and User |
| Security Measures: | | | User authentication (ID and PW), Host authentication (MAC address) IP address filtering |
| EZVIZ: | | | Support |
| Client GUI | ||
| Camera Control: | | | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Date & Time Display: | | | Time: Week: Date, 6 formats on the Client |
| Client: | | | Support iVMS-4200 |
| Web Browser: | | | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 + |
| General | ||
| Menu Language: | | | English |
| Power Supply: | | | 12 VDC &POE (802.3at,class4) |
| Power Consumption: | | | Max.20W |
| Working Temperature/Humidity: | | | -30°C ~ 65°C (-22°F ~ 149°F) |
| Protection Level: | | | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
| Mounting: | | | Various mounting modes optional |

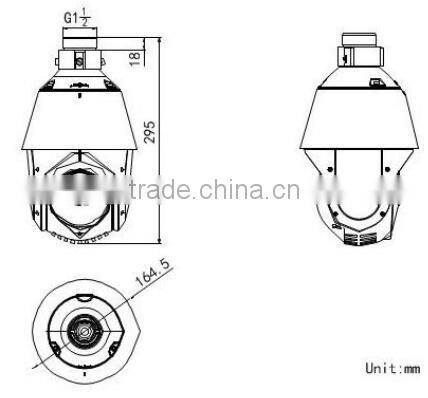

| Dimensions: | | | Φ164.5(mm)×295(mm) |
| Weight (approx.): | | | 2kg (4.41lbs) |

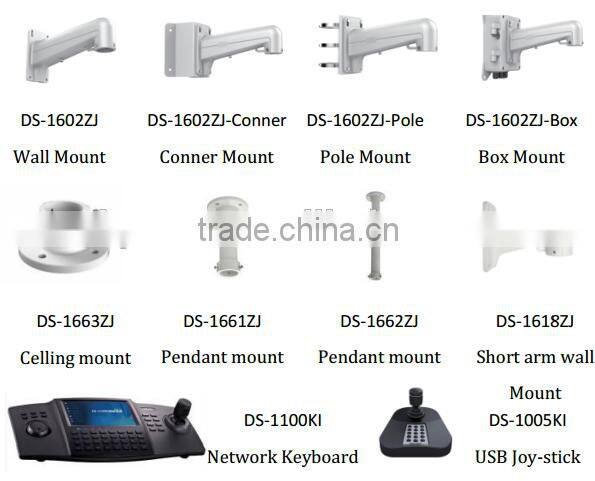

| Mount Option: | | | Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ |
