Help CenterPremium Automatic PET Preform Heating,Stretch & Blow Molding Machine for PET Water Bottles
Related Products
-
Semi-automatic Blow Molding Machine for PET Bottle < 2.5LNegotiableMOQ: 1 Set -
Semi-automatic Stretch & Blow Moulding Machine for PET BottlesNegotiableMOQ: 1 Set
-
Semi-automatic Stretch Blow Moulding Machine for 5 - Gallon PET BottleNegotiableMOQ: 1 Set
-
Automatic Stretch & Blow Molding Machine for PET Bottle (5 Gallon)NegotiableMOQ: 1 Set
-
Economical Automatic Preform Reheat,Stretch & Blow Molding Machine for PET Bottle 2500BPHNegotiableMOQ: 1 Set

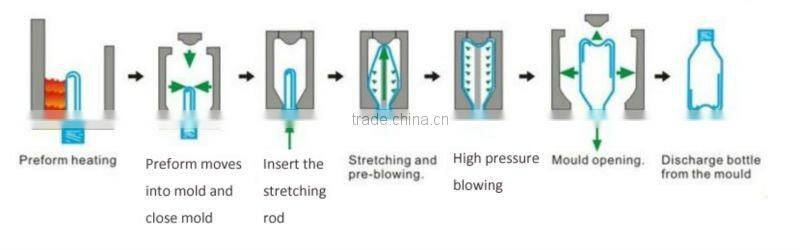

Blowing Process:

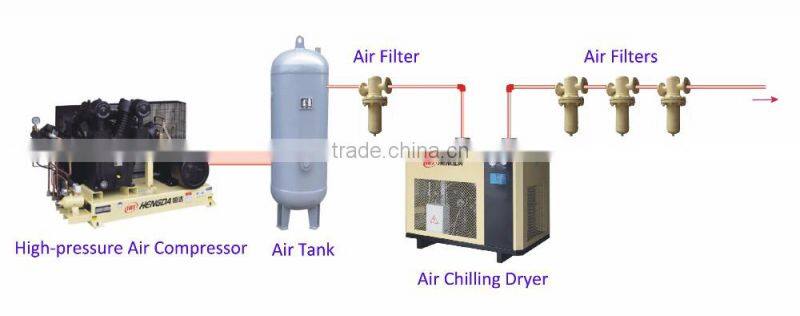

High-pressure Compressed Air System:
Technical Specification:
|
Unit |
SAET-800-9 |
|
Molding Unit |
Clamping stroke |
mm |
100mm |
Stretching stroke |
mm |
240mm |
|
Bottom stroke |
mm |
20-50mm |
|
Cavity pitch |
mm |
101.2mm |
|
cavity |
No. |
9 |
|
Bottle Range |
Max capacity |
ml |
750ml |
Max neck diameter |
mm |
38mm |
|
Max diameter |
mm |
68mm or OEM |
|
Max height |
mm |
260mm or OEM |
|
Carriage unit |
No. |
118 |
|
|
Molding capacity |
bph |
9500bph |
power |
Max heating power |
kw |
36kw |
Normal Heating power |
kw |
15-20kw |
|
Air compressor |
Operating pressure |
kg/cm2 |
7kg/cm2 |
Low-pressure air consumption |
ltr/min |
1000L/min |
|
Blowing pressure |
kg/cm2 |
35kg/ cm2 |
|
High-pressure air consumption |
ltr/min |
2500L/min |
|
Chilling Water |
Operating pressure |
kg/cm2 |
8-12 kg/ cm2 |
Temperature range |
℃ |
8-12℃ |
|
Flow rate |
|
30L/min |
|
Main Machine |
Dimension(L* W*H) |
mm |
5600×1920×2000 |
Weight |
kg |
7000kg |
|

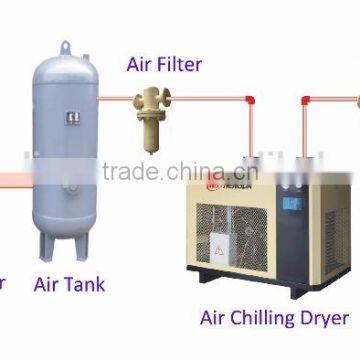

Auxiliary Equipments:
(1) Air compressor is the air source for PET stretch blow molding machine, carrying out the process of compressing air from atmosphere to the required pressure.
(2) Air dryer is to remove the moisture from the compressed air and lower temperature of the compressed air in the heat exchanger.
(3) Air filter is to clear up the impurities out of the compressed air, like carbon-hydrogen, tiny dust and solid particles.
(4) Air tank is to receive and supply air for the machine as storage.
(5) Water Chiller is used to chill the mold to enhance the bottle quality.
