Help CenterLow Iron Ultrawhite Tempered Glass for Solar Energy
Related Products
Specifications
low iron ultrawhite tempered glass for solar energylow iron ultrawhite tempered glass for solar energy
Advantages:
low iron mistlite tempered glass for solar PV modules.
low iron tempered glass
Standard: ISO9001 Australian standard:AN/NZS 2208, CE certificate, Canadian and American standard.
Detailed offer Description
Advantages:
low iron mistlite tempered glass for solar PV modules.
Solar low iron glass is specially produced to meet the needs of solar energy industry, made of mature low iron, glass, it has the characteristic of low content of iron, strong luminousness and high conversion rate of solar energy. We got the SPF U1 certification.
Low Iron Pattern Glass for Solar Panels
Product Description

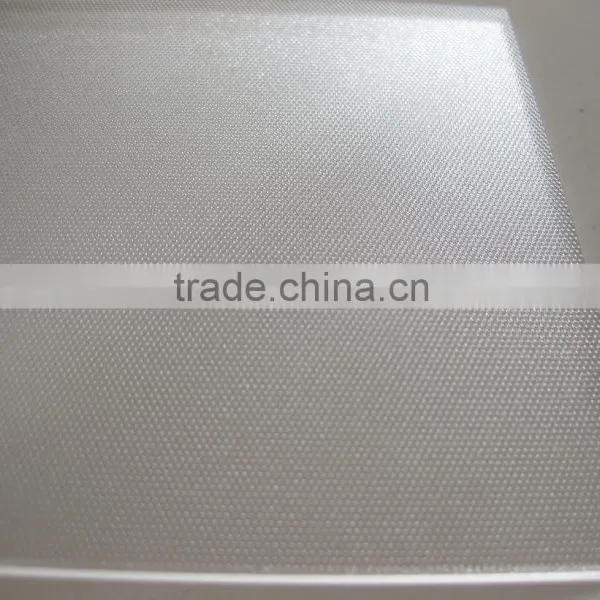

The main technique for the production of solar cell sealed glass is Rolling Process. The patterned roller is specially made for solar glass, which the specail pyramid pattern is pressed on the downward surface and the special matt pattern is pressed on the upware surface on the ultra white glass. The special patterns are designed to reduce the direction reflectance and to increase the internal reflection effect that the solar energy can be absorbed effectively. The maximum transmittance of the solar lights and the efficiency of electricity generation are also raised.
With the outstanding characteristics of the high solar light transmittance, the low reflectance, the low iron, the high mechanical strength and the high flatness, it is one of the indispensable important parts of solar cell.
Low iron solar glass are designed and produced strictly, with less iron content, excellent solar transmittance, superior physical strength and better flatness, perfectly suitable for your pv module and heat collectors.
Product Features:
Visible light transmittance of the tempered glass: more than 91.6%
annual capacity: 4.5million sq.m
Thickness: 3.2mm-12mm (3.2mm&4mm)
Dimension:
Max.2250mmx3500 (annealed)
1220mmx2600 (tempered)
Solar transmittance: (3.2mm polished samples ISO9050/2003)>=91.7%
IRON CONTENT: <=120ppm Fe2O3
Poisson's ration: 0.2
density: 2.5g/cc
Young's Modulus: 73GPA
Tensile strength: 50MPA
Resistance curving strength: 80mpa
Expansion coefficient: 8.5x10-16/degree C
Softening point: 717 degree C
Annealing point: 550 degree C
Strain point: 500 degree C
Product Specification/Models
Pattern: mistlite, prismatic, matt/matt or semi sand etc.
Max. width: 2200mm.
Thickness: 2.5 -6.0mm, standard thickess 3.2mm.
Applications:
solar panels, solar energy collectors.
low iron tempered glass
| Packing: | wood crate |
|---|---|
| Standard: | Spf U1 CE |
| Productivity: | 20000SQM per day |
| Origin: | China |
| Transportation: | shanghai port |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Oceania, Mid East, Eastern Asia, Western Europe |
Productivity: 10-15 x 20' FCL/month
Price Terms: FOB Shanghai or CIF
Payment:: TT or L/C at sight.
Origin: Changshu China
Packing: Strong Wood Crate
Min. Order: 50Pcs
Tempered glass has got Australiand standard: AS/NZS 2208, EN12150, American SGCC certificate.
Contact: Louis Luo
Cell: 86-13812816879
